Why Choose the ABB ZW162 Mounting Frame 6 × NH00 3PW?

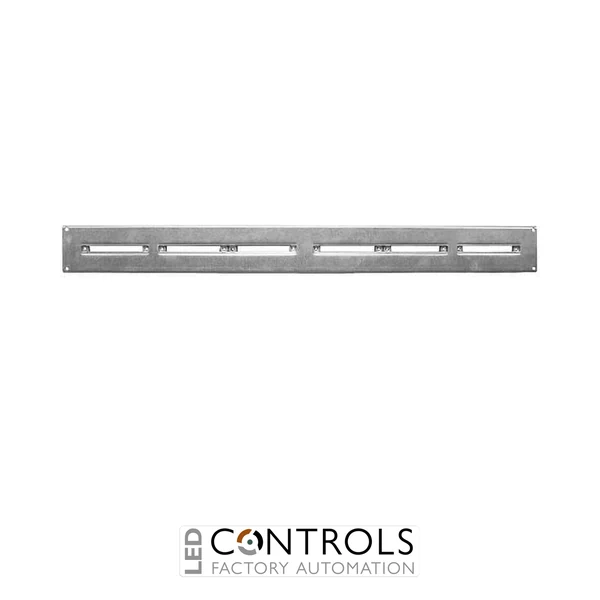

The ABB ZW162 is a purpose-designed mounting frame for NH00 fuse-switch equipment used within compatible electrical sub-distribution assemblies. Supplied under ABB order code 2CPX039458R9999, it forms part of the ABB DESUJ Sub Distribution range and provides a structured mounting solution for fuse-based low-voltage distribution equipment.
Designed to accommodate 6 × NH00 devices, the ZW162 enables multiple NH00 fuse-switch components to be arranged within a coordinated mounting structure. Its 3PW configuration provides the required panel-width format for compatible ABB distribution-system installations.
The ABB ZW162 is particularly suited to panel builders constructing modular fuse distribution assemblies where secure positioning and organised equipment layout are essential. By using a system-specific mounting frame, compatible NH00 equipment can be incorporated into ABB sub-distribution installations in a consistent and professional arrangement.
Key Advantages
- Purpose-designed mounting frame for NH00 fuse-switch equipment.
- Provides mounting positions for 6 × NH00 devices.
- 3PW configuration for compatible ABB distribution-system layouts.
- Supports organised arrangement of multiple fuse-switch components.
- Designed for integration into compatible ABB sub-distribution assemblies.
- Provides a coordinated structural solution for professional fuse distribution panel construction.
Key Features
- ABB ZW162 mounting frame.
- Designed for 6 × NH00 equipment positions.
- 3PW panel-width configuration.
- Dedicated mounting structure for compatible NH00 fuse equipment.
- Suitable for modular electrical sub-distribution assemblies.
- Supports structured fuse distribution panel layouts.
- Part of the ABB DESUJ Sub Distribution product group.
- ABB order code 2CPX039458R9999.
Structured Mounting for NH00 Fuse Distribution Equipment
NH fuse equipment is widely used in low-voltage distribution systems to provide dependable circuit protection and isolation. A dedicated mounting frame helps position multiple fuse devices in a structured arrangement, supporting orderly panel construction and making efficient use of the available distribution-board space.
The ABB ZW162 provides mounting provision for six NH00 positions within a 3PW format. This makes it suitable for compatible ABB sub-distribution assemblies where several NH00 fuse-switch devices need to be integrated into a coordinated internal mounting structure.
Typical Applications
- Low-voltage electrical sub-distribution boards.
- NH00 fuse-switch distribution assemblies.
- Fuse-based power distribution panels.
- Commercial and industrial distribution systems.
- Modular switchgear and panel construction.
- ABB sub-distribution installations requiring six NH00 mounting positions.
