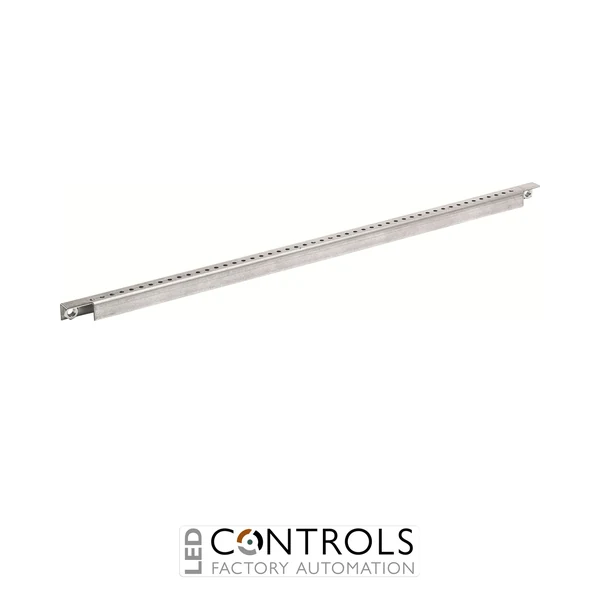

Why Choose the ABB ZW50 Top/Bottom Support Rail 1PW?
The ABB ZW50 is a purpose-designed top/bottom support rail for use within compatible ABB electrical sub-distribution assemblies. Supplied under ABB order code 2CPX039459R9999, it forms part of the ABB DESUJ Sub Distribution range and provides structural support for the internal framework of modular distribution systems.
Designed in a 1PW configuration, the ZW50 is intended for installation as a top or bottom supporting element within a compatible single-panel-width arrangement. This enables panel builders to establish a coordinated support structure for associated mounting components and electrical distribution equipment.
The ZW50 is particularly suited to professional panel construction where system-specific support components are required to maintain an organised and mechanically stable internal assembly. Its dual top/bottom support function allows the same rail type to be incorporated at the appropriate position within compatible ABB sub-distribution configurations.
Key Advantages
- Purpose-designed top/bottom support rail for ABB sub-distribution assemblies.
- 1PW configuration for compatible single-panel-width arrangements.
- Suitable for use as either a top or bottom structural support element.
- Helps create a stable internal framework for compatible distribution components.
- Supports organised and modular electrical panel construction.
- Designed for coordinated integration with compatible ABB interior fitting components.
Key Features
- ABB ZW50 top/bottom support rail.
- 1PW configuration.
- Top or bottom structural support function.
- Designed for compatible electrical sub-distribution assemblies.
- Supports modular panel and switchgear construction.
- System-specific ABB interior fitting component.
- Part of the ABB DESUJ Sub Distribution product group.
- ABB order code 2CPX039459R9999.
Structural Support for Modular Distribution Systems
Support rails are used within modular electrical distribution assemblies to establish and reinforce the internal mounting framework. The ABB ZW50 provides a dedicated supporting element for compatible assemblies, helping maintain the required positioning and mechanical stability of associated interior fitting components.
Its 1PW format is designed for corresponding single-panel-width configurations, while its top/bottom function provides flexibility in constructing the supporting framework. Used with compatible ABB system components, the ZW50 helps panel builders create coordinated and professionally assembled low-voltage distribution systems.
Typical Applications
- Electrical sub-distribution boards.
- Modular low-voltage distribution assemblies.
- Top support structures within compatible panel fields.
- Bottom support structures within compatible panel fields.
- Switchgear and electrical panel construction.
- ABB modular interior fitting installations.
