Why Choose the ABB ZX469 Vertical Steel Partition 3RE?

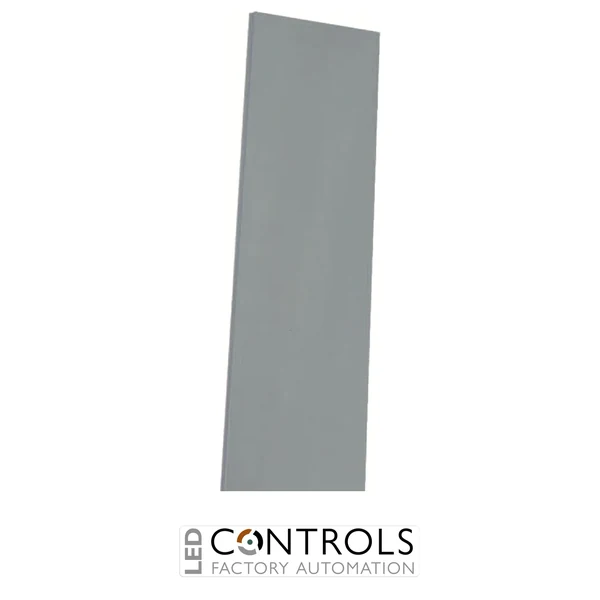

The ABB ZX469, order code 2CPX039541R9999, is a vertical sheet-steel partition designed for separation between adjacent modules within ABB low-voltage sub-distribution assemblies. As part of the ABB DESUJ Sub Distribution product group and CombiLine N interior expansion system, the ZX469 provides a durable internal partitioning solution for professional electrical distribution installations.
Designed for a 3 RE / construction height 00 configuration, the ZX469 is suitable for compatible ABB U, A and B cabinets. It can be used to separate an adjacent module in distribution-panel and meter-panel arrangements, helping create an organised internal structure within compatible ABB cabinet systems.
The ZX469 is manufactured from steel sheet with a galvanised surface and has a nominal height of 450 mm. The partition is designed to be riveted to the EDF mounting frame and is not fault-arc-proof, making it important to select the component according to the separation and protection requirements of the intended distribution assembly.
Key Advantages
- Purpose-designed vertical steel partition for ABB distribution systems.
- 3 RE / construction height 00 format for compatible cabinet assemblies.
- Suitable for compatible ABB U, A and B cabinets.
- Provides separation from adjacent modules within distribution assemblies.
- Robust sheet-steel construction with galvanised surface protection.
- Designed for secure riveted attachment to an EDF mounting frame.
Key Features
- ABB ZX469 vertical partition.
- ABB order code 2CPX039541R9999.
- 3 RE configuration.
- Construction height 00.
- 450 mm nominal height.
- Manufactured from sheet steel.
- Galvanised surface finish.
- Designed for U, A and B cabinets.
- Suitable for separation of adjacent modules, distribution panels and meter panels.
- Partition is riveted to the EDF mounting frame.
- Not fault-arc-proof.
- Designed for the ABB CombiLine N interior expansion system.
Reliable Internal Separation for ABB Distribution Systems
Vertical partitions help divide functional areas within electrical distribution assemblies and provide physical separation between neighbouring modules. The ABB ZX469 is specifically designed for compatible EDF mounting frames, providing a 450 mm-high steel partition for 3 RE installations in U, A and B cabinet systems.
Its galvanised sheet-steel construction provides a durable internal barrier, while the riveted mounting arrangement creates a secure connection to the EDF mounting frame. The ZX469 is intended for separation applications within distribution and meter-panel assemblies but is not fault-arc-proof, so the overall cabinet design must provide the level of protection required for the installation.
Typical Applications
- ABB U, A and B electrical cabinets.
- CombiLine N interior expansion systems.
- Separation between adjacent electrical modules.
- Distribution-panel and meter-panel assemblies.
- Low-voltage electrical distribution boards.
- Panel building and switchboard manufacturing.
