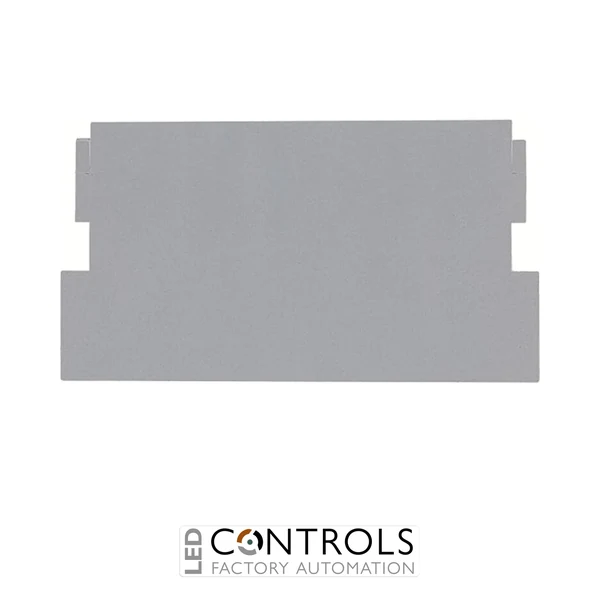

Why Choose the ABB ZX502 Horizontal Steel Partition?
The ABB ZX502 is a purpose-designed horizontal steel partition for use within compatible ABB subdistribution assemblies. Supplied under ABB order code 2CPX039567R9999, it provides physical separation between internal areas of a distribution panel and supports an organised equipment layout.
Designed in a 1-panel-wide (1PW) configuration, the ZX502 provides horizontal partitioning across the corresponding panel width. Its steel construction makes it a structural separation component for compatible ABB distribution assemblies, helping establish clearly defined internal sections during panel construction.
As part of ABB’s DESUJ Sub Distribution product group, the ZX502 is intended for professional distribution board construction, modification and maintenance. It is a practical ABB system component wherever a 1PW horizontal steel partition is specified within a compatible subdistribution assembly.
Key Advantages
- Purpose-designed horizontal partition for ABB subdistribution systems.
- 1-panel-wide (1PW) configuration for compatible panel layouts.
- Steel construction for structural internal partitioning.
- Provides physical separation between compatible internal panel areas.
- Helps maintain an organised and structured distribution assembly.
- Suitable for professional panel construction, modification and maintenance.
Key Features
- ABB ZX502 horizontal steel partition.
- 1PW configuration.
- Horizontal orientation.
- Steel partition construction.
- Designed for compatible ABB subdistribution assemblies.
- Part of the ABB DESUJ Sub Distribution product group.
- ABB order code 2CPX039567R9999.
Structured Internal Separation for Distribution Assemblies
Internal partitions help divide electrical distribution assemblies into defined areas, supporting orderly equipment arrangements and structured panel construction. Horizontal partitions are used where separation is required across the width of compatible internal panel sections.
The ABB ZX502 combines a horizontal configuration with a 1-panel-wide format and steel construction. It is suitable for new distribution panel construction as well as modification and maintenance work where the specified ZX502 partition is required.
Typical Applications
- ABB subdistribution assemblies.
- Low-voltage distribution panels.
- Internal panel compartment separation.
- Distribution board construction.
- Structured internal equipment layouts.
- Panel modification and maintenance applications.
