Why Choose the ABB ZX503 Horizontal Steel Partition 2PW?

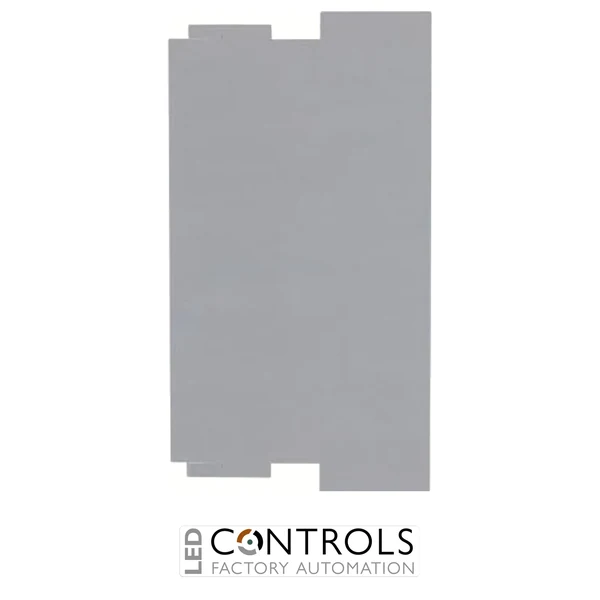

The ABB ZX503 is a horizontal sheet-steel partition designed for internal separation within compatible ABB CombiLine N electrical distribution assemblies. Supplied under ABB order code 2CPX039568R9999, it provides a dedicated partitioning solution for U, A and B cabinets fitted with compatible EDF mounting frames.
Designed in a 2PW / two-field-width configuration, the ZX503 has a nominal width of 500 mm. Its horizontal arrangement enables adjacent areas of a distribution assembly to be separated while retaining a coordinated internal structure based on ABB system components.
The ZX503 is manufactured from sheet steel with a galvanised surface. When used with an EDF mounting frame, the partition is inserted between the cover brackets, providing straightforward integration into compatible panel constructions. The partition is specifically identified as not fault-arc-proof.
Key Advantages
- Purpose-designed horizontal steel partition for ABB CombiLine N assemblies.
- 2PW / two-field-width configuration with a nominal width of 500 mm.
- Compatible with suitable U, A and B cabinets.
- Designed for use with compatible EDF mounting frames.
- Inserted between the cover brackets for straightforward system integration.
- Galvanised sheet-steel construction for a durable internal partitioning solution.
Key Features
- ABB ZX503 horizontal partition.
- Sheet-steel construction.
- 2PW / 2-field-width format.
- 500 mm nominal width.
- Suitable for compatible U, A and B cabinets.
- Designed for ABB CombiLine N interior fitting systems.
- Installs between cover brackets when used with an EDF mounting frame.
- Galvanised surface finish.
- Not fault-arc-proof.
- Supplied as 1 piece.
- ABB order code 2CPX039568R9999.
Structured Horizontal Separation for CombiLine N Assemblies
Internal partitions help panel builders divide areas of a distribution assembly and maintain an orderly equipment layout. The ABB ZX503 provides this function horizontally across a 500 mm two-field-width section, making it a coordinated component for compatible CombiLine N interior fitting arrangements.
When an EDF mounting frame is used, the ZX503 is pushed between the corresponding cover brackets rather than serving as an independent enclosure component. Its galvanised sheet-steel construction provides a robust physical partition, while designers should account for the fact that the ZX503 is not designed as a fault-arc-proof partition.
Typical Applications
- ABB CombiLine N interior fitting systems.
- U, A and B electrical distribution cabinets.
- Horizontal separation within sub-distribution boards.
- Distribution-panel internal compartmentalisation.
- Assemblies constructed with compatible EDF mounting frames.
- Commercial and industrial electrical panel construction.
