Why Choose the ABB MM113K Mounting Plate Expansion?

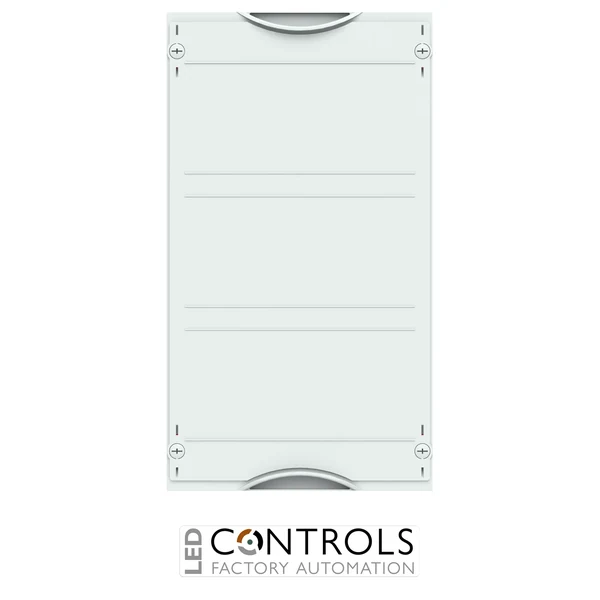

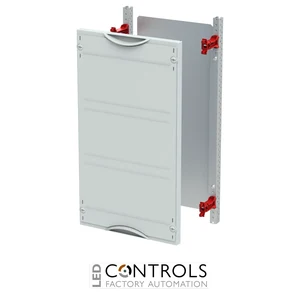

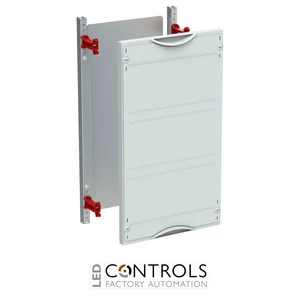

The ABB MM113K is a robust mounting plate expansion for ABB sub-distribution enclosures, designed as part of the CombiLine N interior expansion system. Supplied mounted and installed in the cabinet under ABB order code 2CPX041118R9999, it provides a secure internal mounting surface for electrical equipment in compatible distribution assemblies.
The MM113K uses a 2 mm sheet-steel mounting plate that is firmly attached for dependable equipment installation. Its 1-field-width configuration provides a usable equipment width of 200 mm and a usable depth of 82 mm, supporting organised installation of suitable electrical components.
With a nominal height of 450 mm, width of 250 mm and 36 PLE capacity, the MM113K is intended for cabinets from 120 mm depth. It supports expansion on both EDF and WR mounting frames, with the appropriate mounting frame ordered separately.
Key Advantages
- Genuine ABB mounting plate expansion for CombiLine N sub-distribution systems.
- Durable 2 mm sheet-steel mounting plate.
- Firmly attached mounting plate provides a stable equipment mounting surface.
- 200 mm usable equipment width in a compact 1-field-width configuration.
- 82 mm usable depth for installed electrical equipment.
- Suitable for expansion on EDF and WR mounting frames.
Key Features
- ABB CombiLine N interior expansion system.
- MM113K mounting plate expansion.
- 1PW / 1-field-width configuration.
- 450 mm nominal height and 250 mm nominal width.
- 36 PLE configuration.
- 2 mm sheet-steel mounting plate.
- 82 mm usable depth.
- 200 mm usable equipment width.
- Suitable for cabinets from 120 mm depth.
- Manufacturer order code 2CPX041118R9999.
Reliable Equipment Mounting for Distribution Enclosures
Mounting plates provide a stable internal surface for installing electrical devices and associated equipment within distribution enclosures. A correctly matched mounting system helps panel builders maintain orderly component layouts while making effective use of the available enclosure space.
The ABB MM113K combines a firmly attached 2 mm sheet-steel plate with defined usable equipment dimensions for integration into the CombiLine N system. Compatibility with EDF and WR mounting-frame expansion makes it a practical system component for professional sub-distribution assemblies.
Typical Applications
- ABB CombiLine N sub-distribution systems.
- Electrical distribution board assembly.
- Commercial and industrial electrical enclosures.
- Internal mounting of electrical equipment.
- Panel building and switchgear installations.
- EDF and WR mounting-frame expansion applications.
