Why Choose the ABB MM114K CombiLine Mounting Plate Module?

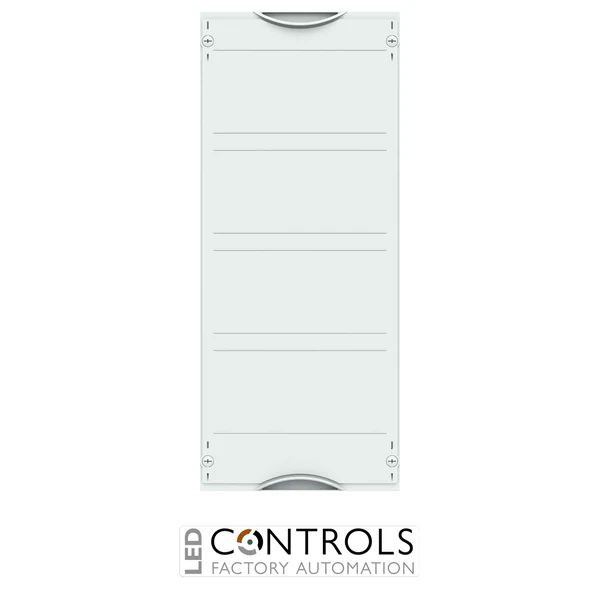

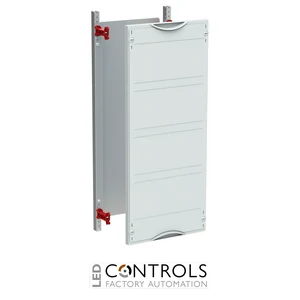

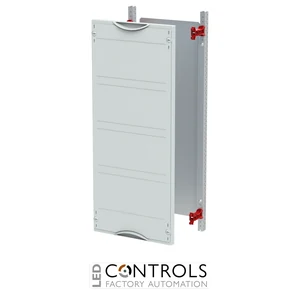

The ABB MM114K is a 1-panel-width mounting plate module designed for compatible ABB sub distribution enclosures and CombiLine installations. Identified by ABB order code 2CPX041119R9999, the module provides a dedicated mounting area for electrical equipment within a structured low-voltage distribution assembly.
The MM114K has a nominal module size of 600 mm high × 250 mm wide, corresponding to 4 grid units and 1 panel width. It provides 48 space units, with a usable equipment width of 200 mm, usable height of 566 mm and usable depth of 82 mm.
Designed for installation from a cabinet depth of 120 mm, the MM114K uses a 2 mm sheet-steel mounting plate with fixed mounting and a closed plastic cover finished in RAL 7035. A compatible ABB EDF or WR mounting frame is required separately, allowing the module to form part of a flexible CombiLine sub distribution configuration.
Key Advantages
- Genuine ABB CombiLine mounting plate module.
- 1-panel-width format for structured sub distribution assemblies.
- 4 grid units / 600 mm nominal height.
- Provides 48 space units.
- Robust 2 mm sheet-steel mounting plate.
- Provides a usable equipment area of 200 mm wide × 566 mm high.
- Suitable for compatible cabinets from 120 mm depth.
Key Features
- ABB CombiLine internal installation module.
- 4 grid units corresponding to 600 mm nominal height.
- 1 panel width corresponding to 250 mm nominal width.
- 48 space units.
- 2 mm sheet-steel mounting plate.
- Fixed mounting plate configuration.
- 82 mm usable depth.
- 200 mm usable equipment width.
- 566 mm usable equipment height.
- Closed plastic cover with RAL 7035 finish.
- 90-degree push-turn cover fastener.
- Compatible EDF or WR mounting frame required separately.
Flexible Equipment Mounting with ABB CombiLine
Mounting plate modules provide a flexible installation surface for electrical equipment that does not use conventional DIN rail mounting. The ABB MM114K provides a robust 2 mm sheet-steel mounting plate with a usable equipment area of 200 × 566 mm, allowing compatible control, switching and distribution components to be securely arranged within the enclosure.
As part of the ABB CombiLine system, the MM114K can be incorporated into compatible sub distribution assemblies using an appropriate EDF or WR mounting frame. Its standardised 4-grid-unit, 1-panel-width format allows it to be combined with other compatible CombiLine modules to create organised electrical distribution and control assemblies.
Typical Applications
- Commercial low-voltage sub distribution assemblies.
- Industrial electrical distribution systems.
- Control and switching equipment mounting.
- Building-services electrical installations.
- ABB CombiLine modular distribution assemblies.
- Applications requiring a fixed sheet-steel mounting surface within a compatible enclosure.
