Why Choose the ABB MA190T CombiLine Tmax Circuit Breaker Module?

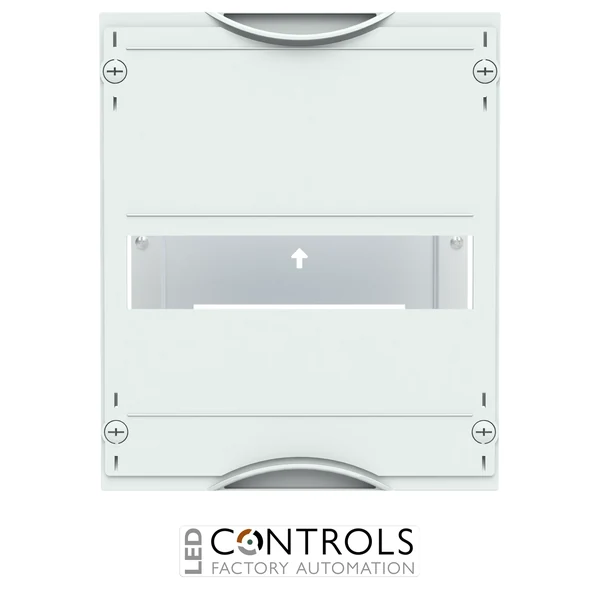

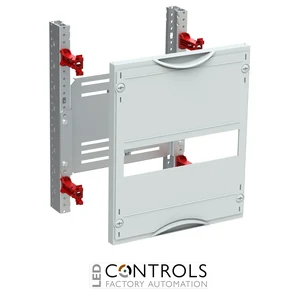

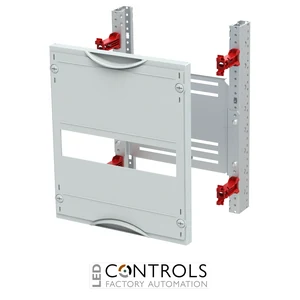

The ABB MA190T is a CombiLine internal mounting module for ABB Tmax moulded case circuit breakers, designed for compatible low-voltage sub distribution assemblies. Identified by ABB order code 2CPX041120R9999, the module provides a purpose-designed mounting arrangement for a single compatible Tmax XT1 or XT3 circuit breaker.
The MA190T has a nominal module size of 300 mm high × 250 mm wide, corresponding to 2 grid units and 1 panel width, with 24 space units. It provides a usable width of 199 mm and incorporates a cover with a 216 mm cut-out for the installed circuit breaker.
Designed for fixed installation, the module supports compatible ABB Tmax XT1 and XT3 3-pole or 4-pole circuit breakers and has a maximum rated current of 250 A. It includes a mounting cross beam with M4 fixing hardware, while the appropriate ABB EDF or WR mounting frame is ordered separately.
Key Advantages
- Genuine ABB CombiLine circuit breaker module.
- Designed for compatible ABB Tmax XT1 and XT3 MCCBs.
- Supports 3-pole and 4-pole circuit breaker configurations.
- Maximum rated current of 250 A.
- Compact 2-grid-unit, 1-panel-width format.
- Supplied with mounting cross beam and M4 fixing hardware.
- Provides a structured solution for integrating an MCCB into compatible ABB sub distribution assemblies.
Key Features
- ABB CombiLine internal mounting module.
- Designed for fixed-mounted Tmax circuit breakers.
- Compatible with 1 × Tmax XT1 or XT3.
- Suitable for compatible 3P and 4P breaker versions.
- Maximum rated current: 250 A.
- 2 grid units corresponding to 300 mm nominal height.
- 1 panel width corresponding to 250 mm nominal width.
- 24 space units.
- Cover with circuit breaker cut-out.
- Mounting cross beam with M4 fixing hardware included.
- Compatible EDF or WR mounting frame required separately.
Flexible Tmax MCCB Integration with ABB CombiLine
The ABB CombiLine system provides modular internal installation solutions for building low-voltage distribution assemblies. The MA190T creates a dedicated mounting position for a compatible Tmax XT1 or XT3 moulded case circuit breaker, helping installers integrate higher-current switching and protection equipment into a structured sub distribution system.
Its 2-grid-unit, 1-panel-width format provides a compact installation footprint while accommodating compatible 3-pole and 4-pole breakers up to 250 A. The module includes the required mounting cross beam, while its cut-out cover provides access to the installed breaker and can be finished with suitable cover strips where required.
Typical Applications
- Commercial low-voltage sub distribution assemblies.
- Industrial electrical distribution systems.
- ABB Tmax XT1 and XT3 circuit breaker installations.
- Main and sub-main circuit protection arrangements.
- Building-services electrical distribution.
- ABB CombiLine modular distribution assemblies requiring an MCCB mounting position.
