Why Choose the ABB MK108 Terminal Expansion 1PW?

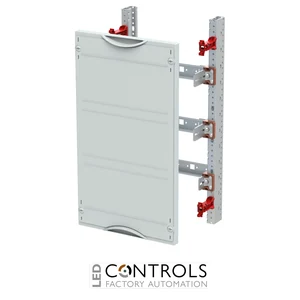

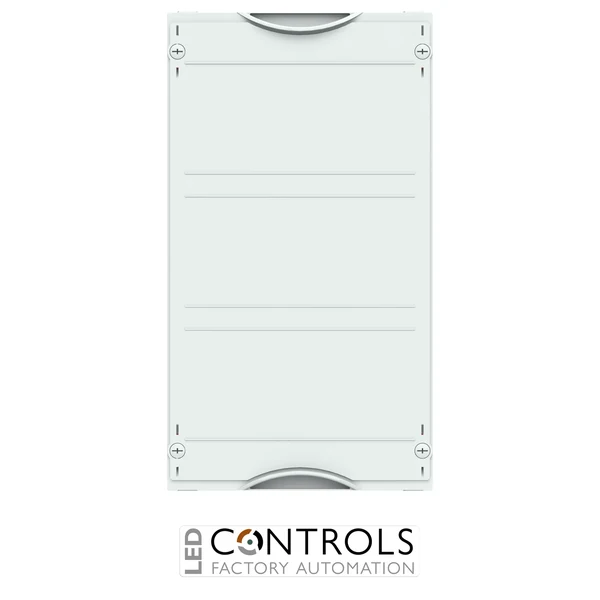

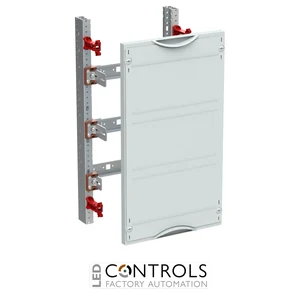

The ABB MK108, order code 2CPX041233R9999, is a CombiLine terminal block module designed for horizontal terminal arrangements within professional electrical sub-distribution systems. Its 1PW / 1-field configuration combines a compact 250 mm field width with three rack units of terminal mounting space.
The MK108 has a nominal module height of 3 RE / 450 mm and provides 36 space units. It incorporates 35 × 15 mm perforated top-hat rails for terminal blocks, with a 150 mm row spacing and a usable terminal width of 188 mm.
Designed for flexible panel construction, the terminal rails can be continuously adjusted in depth using deep-mounting brackets, providing a usable depth range of 68–145 mm. Closed plastic covers, a 90-degree press-and-turn closure and an RAL 7035 finish complete the assembly, which is suitable from a cabinet depth of 200 mm and requires a compatible EDF or WR mounting frame ordered separately.
Key Advantages
- Genuine ABB CombiLine terminal block module for professional sub-distribution systems.
- 1PW / 250 mm field width provides a compact terminal expansion solution.
- 3 RE / 450 mm height provides substantial horizontal terminal mounting capacity.
- Provides 36 space units for organised terminal arrangements.
- Continuously adjustable rail depth provides a useful 68–145 mm installation range.
- Supplied as an assembled module for integration into compatible ABB distribution systems.
Key Features
- ABB MK108 terminal block module.
- ABB order code 2CPX041233R9999.
- Part of the ABB CombiLine interior expansion system.
- 1PW / 1-field configuration.
- 3 RE / 450 mm nominal module height.
- 250 mm field width.
- 36 space units.
- 150 mm row spacing.
- 35 × 15 mm perforated top-hat rails for terminal blocks.
- 188 mm usable terminal width.
- 68–145 mm usable depth with continuous depth adjustment.
- Closed plastic covers with 90-degree press-and-turn closure.
- RAL 7035 finish.
- Suitable from a cabinet depth of 200 mm.
Flexible Horizontal Terminal Expansion for Distribution Systems
Terminal block modules provide structured mounting space for connecting and distributing conductors within electrical distribution assemblies. The ABB MK108 combines a 35 × 15 mm top-hat rail system, 150 mm row spacing and 188 mm usable terminal width to support organised horizontal terminal arrangements within a compact single-field section.
The continuously adjustable 68–145 mm usable depth allows the terminal rail position to be adapted to installation requirements. With its 3 RE / 450 mm height and 1PW format, the MK108 provides a practical terminal expansion solution for compatible CombiLine assemblies using EDF or WR mounting frames.
Typical Applications
- Electrical sub-distribution systems.
- Horizontal terminal block arrangements.
- ABB CombiLine interior expansion systems.
- EDF and WR mounting-frame assemblies.
- Commercial building distribution boards.
- Industrial electrical panels.
- Structured conductor termination and distribution.
- Distribution-board expansion and refurbishment projects.
