Why Choose the ABB MM111 CombiLine Mounting Plate Expansion Module?

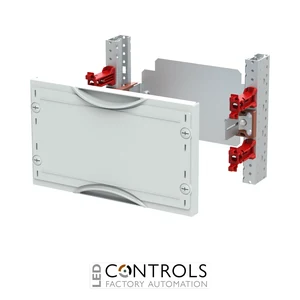

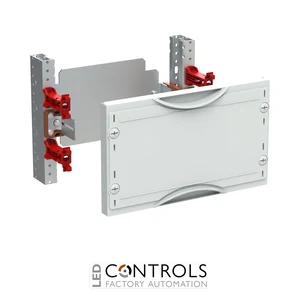

The ABB MM111 is a CombiLine mounting plate expansion module designed for compatible ABB low-voltage sub distribution assemblies. Identified by ABB order code 2CPX041242R9999, it is supplied as an assembled internal fitting module and provides a dedicated mounting surface for electrical equipment that requires plate mounting rather than conventional DIN rail installation.
The MM111 uses a compact 1-grid-unit, 1-panel-width format, measuring 150 mm high × 250 mm wide × 200 mm deep. It provides 12 space units and incorporates a robust 2 mm sheet-steel mounting plate with a usable equipment area of 188 mm wide × 116 mm high.

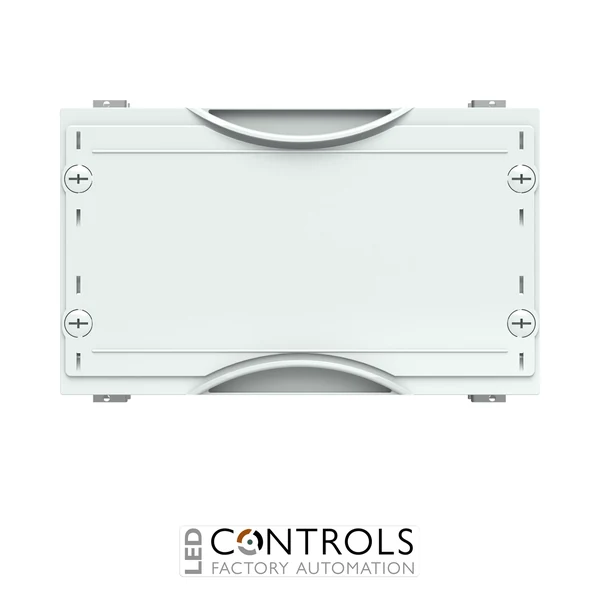

The mounting plate is continuously adjustable in depth using its mounting arrangement, providing a usable depth range of 103 to 158 mm. A closed plastic cover with a RAL 7035 finish completes the module, while a compatible ABB EDF or WR mounting frame is required separately for integration into the appropriate enclosure system.
Key Advantages
- Genuine ABB CombiLine mounting plate expansion module.
- Compact 1-panel-width format for structured sub distribution assemblies.
- Robust 2 mm sheet-steel mounting plate.
- Provides 12 space units.
- 188 × 116 mm usable equipment area.
- Continuously adjustable mounting depth from 103 to 158 mm.
- Supplied assembled for integration into compatible ABB distribution systems.
Key Features
- ABB CombiLine internal installation module.
- 1 grid unit corresponding to 150 mm height.
- 1 panel width corresponding to 250 mm width.
- 12 space units.
- 2 mm sheet-steel mounting plate.
- Continuously adjustable mounting plate depth.
- 103 to 158 mm usable depth.
- 188 mm usable equipment width.
- 116 mm usable equipment height.
- Closed plastic cover with RAL 7035 finish.
- 90-degree press-turn cover fastener.
- Suitable for compatible cabinets from 200 mm depth.
- Compatible EDF or WR mounting frame required separately.
Flexible Equipment Mounting with ABB CombiLine
Mounting plate modules provide a versatile installation surface for electrical equipment that cannot be accommodated on standard modular DIN rails. The ABB MM111 incorporates a 2 mm sheet-steel mounting plate with a usable area of 188 × 116 mm, providing a robust base for compatible switching, control and distribution components.
The mounting plate can be continuously adjusted to provide a usable depth between 103 and 158 mm, allowing equipment positioning to be adapted to the requirements of the assembly. Its standardised 1-grid-unit, 1-panel-width format enables the MM111 to be combined with other compatible CombiLine modules within an appropriate ABB EDF or WR mounting frame and enclosure.
Typical Applications
- Commercial low-voltage sub distribution assemblies.
- Industrial electrical distribution systems.
- Plate-mounted switching and control equipment.
- Building-services electrical installations.
- Electrical components unsuitable for conventional DIN rail mounting.
- ABB CombiLine assemblies requiring a compact 1-panel-width mounting plate section.
