Why Choose the ABB MM113 Mounting Plate Expansion 1PW?

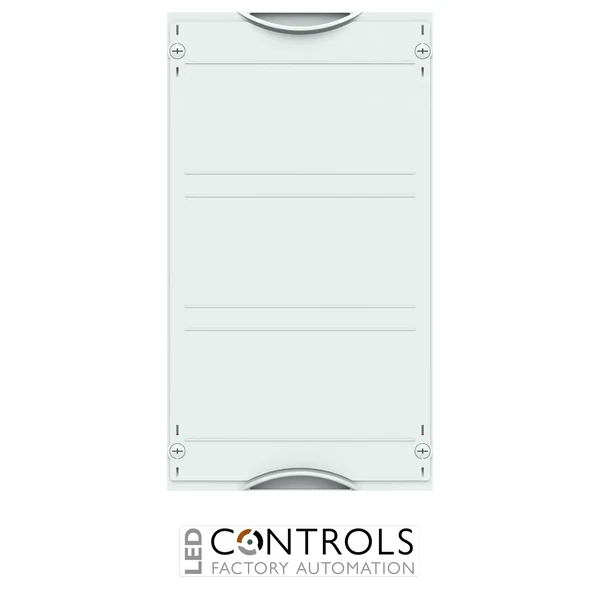

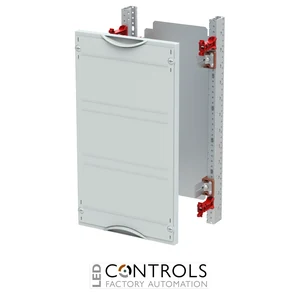

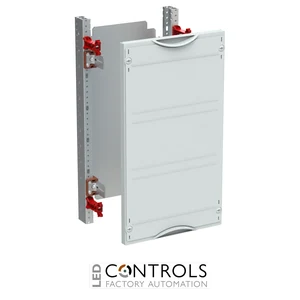

The ABB MM113, order code 2CPX041248R9999, is a CombiLine mounting plate module designed for professional electrical sub-distribution systems. Supplied mounted for cabinet installation, it combines a compact 1PW / 1-field width with a 3 RE / 450 mm module height and provides 36 space units for flexible equipment mounting.
The MM113 incorporates a robust 2 mm sheet-steel mounting plate with a usable equipment width of 188 mm and usable height of 416 mm. Its mounting plate can be continuously adjusted in depth using deep-mounting brackets, providing a useful installation depth of 103–158 mm for accommodating compatible electrical equipment.
Designed for use from a cabinet depth of 200 mm, the MM113 features closed plastic covers, a 90-degree press-and-turn closure and an RAL 7035 finish. It is suitable for integration with compatible EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Genuine ABB CombiLine mounting plate module for electrical sub-distribution systems.
- 1PW / 250 mm field width provides a compact equipment-mounting solution.
- Durable 2 mm sheet-steel mounting plate.
- Continuously adjustable mounting depth provides a usable range of 103–158 mm.
- Provides 188 mm usable width × 416 mm usable height for equipment.
- Supplied as a mounted module for integration with compatible ABB cabinet systems.
Key Features
- ABB MM113 mounting plate module.
- ABB order code 2CPX041248R9999.
- Part of the ABB CombiLine interior expansion system.
- 1PW / 1-field configuration.
- 3 RE / 450 mm module height.
- 250 mm field width.
- 36 space units.
- 2 mm sheet-steel mounting plate.
- 188 mm usable equipment width.
- 416 mm usable equipment height.
- 103–158 mm usable depth with continuous adjustment.
- Closed plastic covers with 90-degree press-and-turn closure.
- RAL 7035 finish.
- Suitable from a cabinet depth of 200 mm.
Flexible Mounting Plate Expansion for Distribution Systems
Mounting plate modules provide a versatile installation surface for electrical components that require direct plate mounting rather than conventional DIN rail installation. The ABB MM113 combines a 2 mm sheet-steel mounting plate with a usable equipment area of 188 mm wide × 416 mm high, allowing compatible control, switching and ancillary equipment to be positioned according to the requirements of the assembly.
The continuously adjustable 103–158 mm usable depth provides additional flexibility when accommodating equipment of different installation depths. With its compact 1PW / 250 mm field width and 3 RE / 450 mm height, the MM113 provides a structured mounting solution for compatible CombiLine assemblies using EDF or WR mounting frames.
Typical Applications
- Electrical sub-distribution systems.
- Plate-mounted electrical equipment installations.
- ABB CombiLine interior expansion systems.
- EDF and WR mounting-frame assemblies.
- Commercial building distribution boards.
- Industrial electrical panels.
- Control, switching and ancillary equipment mounting.
- Distribution-board expansion and refurbishment projects.
