Why Choose the ABB MB216 Touch Protection Expansion 2PW?

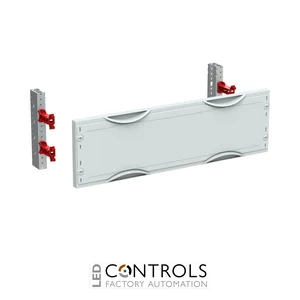

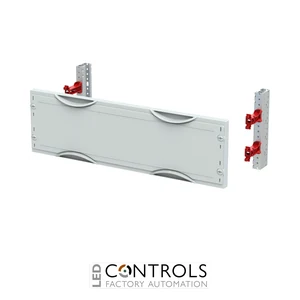

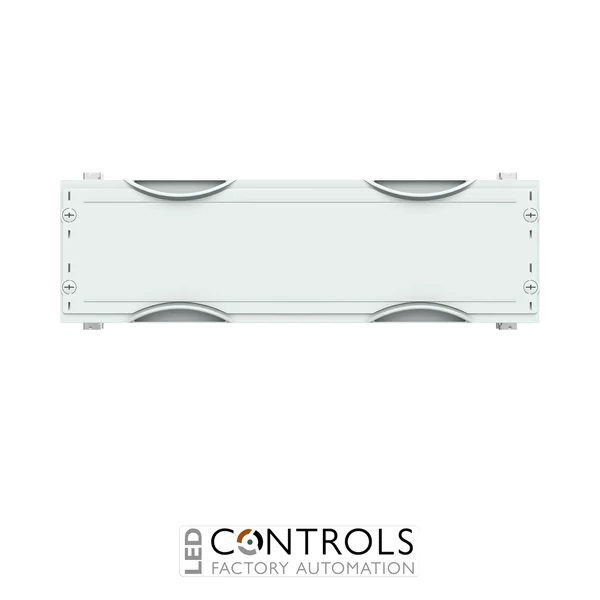

The ABB MB216 is a CombiLine touch protection expansion module designed to provide a closed protective section within professional low-voltage electrical distribution cabinets. Supplied under ABB order code 2CPX041258R9999, the MB216 is supplied mounted for cabinet installation and provides a 2PW / two-field-width configuration for ABB CombiLine interior systems.
The MB216 has a 1 RE / 150 mm module height and a 2 PW / 500 mm width, providing 24 space units. Its closed plastic covers provide touch protection for the equipment area while allowing the module position to be incorporated into a structured CombiLine distribution-board layout.
Designed for use from a cabinet depth of 120 mm, the MB216 features 90-degree press-and-turn closures and a RAL 7035 cover finish. The module is suitable for expansion on compatible EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Purpose-designed touch protection expansion module for ABB CombiLine systems.
- 2PW / two-field-width configuration provides a 500 mm-wide protected section.
- Compact 1 RE / 150 mm module height for efficient cabinet utilisation.
- Provides 24 space units within the distribution assembly.
- Closed plastic covers help protect against unintended contact with equipment behind the module.
- Suitable for expansion on compatible EDF and WR mounting frames.
Key Features
- ABB CombiLine interior expansion system.
- Touch protection expansion module.
- 1 raster unit (RE) / 150 mm height.
- 2 panel widths (PW) / 500 mm width.
- 24 space units.
- Closed plastic protective covers.
- 90-degree press-and-turn closures.
- RAL 7035 cover finish.
- Suitable for use from a 120 mm cabinet depth.
- Designed for touch protection or expansion with compatible system parts.
- Supplied mounted for installation in the cabinet.
- Compatible with EDF or WR mounting-frame expansion.
Structured Touch Protection for Distribution Cabinets
Touch protection modules such as the ABB MB216 provide a closed protective barrier within electrical distribution assemblies, helping reduce the risk of unintended contact with equipment installed behind the cover. The dedicated module also maintains a structured cabinet layout while providing a defined area that can be incorporated into a compatible CombiLine system.
The MB216 combines a 500 mm two-panel-width format with closed plastic covers and practical 90-degree press-and-turn fastening. As part of the ABB CombiLine interior expansion system, it provides a system-based solution for professional sub-distribution cabinet construction using a compatible EDF or WR mounting frame.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB CombiLine interior expansion systems.
- Sub-distribution boards and switchgear assemblies.
- Touch protection within electrical cabinet interiors.
- Expansion sections for compatible CombiLine system components.
- Commercial and industrial electrical installations.
