Why Choose the ABB MB316 Touch Protection Expansion 3PW?

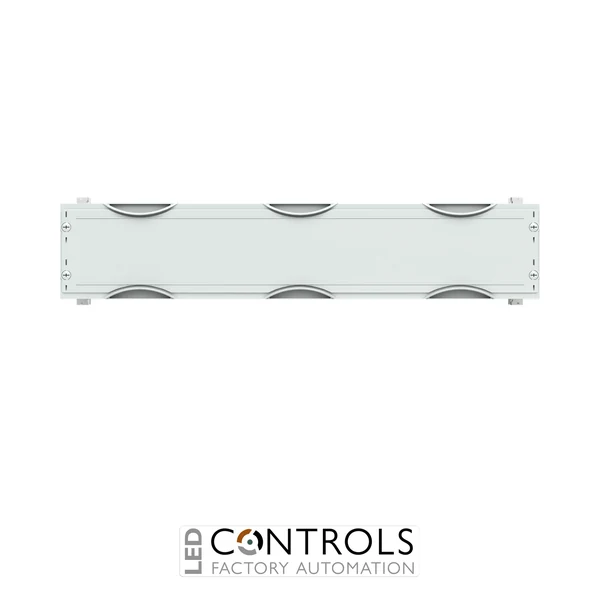

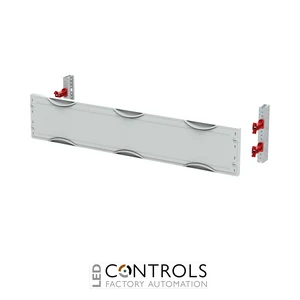

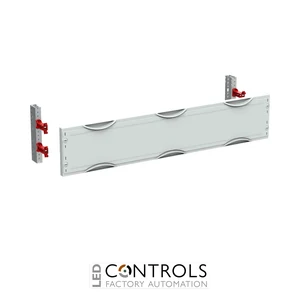

The ABB MB316, order code 2CPX041259R9999, is a mounted CombiLine touch protection expansion module designed for ABB electrical sub-distribution systems. Part of the ABB CombiLine interior expansion system and the DESUJ Sub Distribution product group, it provides a closed protective covering for compatible system components within professional electrical distribution cabinets.
Designed as a touch protection module or for expansion with CombiLine system parts, the MB316 has a 1 RE / 150 mm height and a three-field width of 750 mm. It provides 36 space units, making it suitable for wide distribution assemblies where unused areas or installed components require a structured protective cover.
The MB316 incorporates closed plastic covers secured using 90-degree press-and-turn closures and finished in RAL 7035 light grey. It is suitable for cabinets from 120 mm depth and can be used with ABB EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Mounted CombiLine touch protection module for professional sub-distribution systems.
- Provides touch protection or expansion capability for compatible CombiLine system parts.
- Three-field-width, 750 mm design provides coverage across a wide cabinet section.
- 36 space units within a compact 1 RE module height.
- Closed plastic covers help provide a structured protective barrier within the distribution assembly.
- Compatible with ABB EDF and WR mounting frames.
Key Features
- ABB CombiLine interior expansion system.
- MB316 mounted touch protection module.
- 1 RE / 150 mm module height.
- 3 panel widths / 750 mm overall width.
- 36 space units.
- Closed protective cover design.
- Durable plastic covers.
- 90-degree press-and-turn closures.
- Light-grey RAL 7035 finish.
- Suitable from a minimum cabinet depth of 120 mm.
- Designed for use with EDF or WR mounting frames.
Reliable Touch Protection for Distribution Systems
Touch protection modules form an important part of structured electrical distribution assemblies by providing closed coverage over appropriate areas of the interior installation. The ABB MB316 is designed specifically for the CombiLine system, helping create an organised cabinet interior while supporting the safe integration of compatible distribution and system components.
With its three-field-width construction, the MB316 provides 750 mm of coverage while occupying only one 150 mm grid unit in height. Its closed plastic cover, secure press-and-turn closures and compatibility with ABB EDF and WR mounting frames make it a practical solution for professional commercial and industrial sub-distribution assemblies.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Electrical distribution cabinets and switchboards.
- Touch protection within CombiLine assemblies.
- Expansion with compatible ABB CombiLine system parts.
- Building-services electrical distribution systems.
- ABB CombiLine cabinet expansion and interior fit-out.
