Why Choose the ABB MB118 Touch Protection Expansion 1PW?

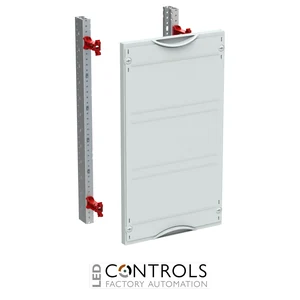

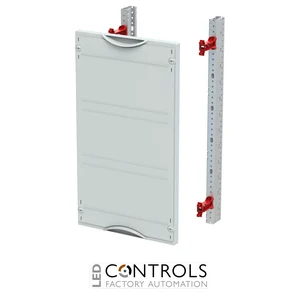

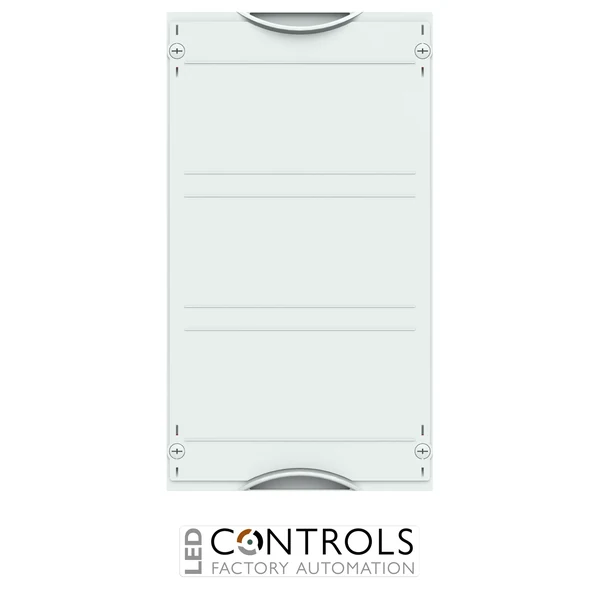

The ABB MB118, order code 2CPX041263R9999, is a CombiLine touch protection module designed for professional electrical sub-distribution systems. Supplied mounted for cabinet installation, it provides a closed protective section that can be used for touch protection or for expansion with compatible system components.
The MB118 has a 1PW / 1-field width of 250 mm and a 3 RE / 450 mm height, providing 36 space units. With an installation depth of 120 mm, it offers a compact protective module for compatible ABB CombiLine distribution assemblies.
Closed plastic covers protect the internal area, while a 90-degree press-and-turn closure provides practical access during installation and maintenance. The module is finished in RAL 7035, is suitable from a cabinet depth of 120 mm, and is designed for compatible EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Genuine ABB CombiLine touch protection module.
- Can be used for touch protection or expansion with compatible system components.
- Compact 1PW / 250 mm field width.
- 3 RE / 450 mm height with 36 space units.
- Closed plastic covers provide a protected internal section.
- Suitable for compatible EDF and WR mounting systems.
Key Features
- ABB MB118 touch protection module.
- ABB order code 2CPX041263R9999.
- Part of the ABB CombiLine interior expansion system.
- 1PW / 1-field configuration.
- 3 RE / 450 mm height.
- 250 mm width.
- 120 mm depth.
- 36 space units.
- Closed covers manufactured from plastic.
- 90-degree press-and-turn closure.
- RAL 7035 finish.
- Rated operational voltage of 400 V AC.
- Rated frequency of 50 Hz.
- Rated insulation voltage of 690 V.
- Suitable from a cabinet depth of 120 mm.
Touch Protection for Modular Distribution Systems
Touch protection modules create a closed protective section within electrical distribution assemblies, helping prevent direct contact with the equipment area while preserving the modular structure of the enclosure. The ABB MB118 combines closed plastic covers with a practical press-and-turn closure and can also provide space for compatible system expansion components.
With its 250 mm width, 450 mm height and 36 space units, the MB118 provides a single-field protective section for compatible CombiLine assemblies. It can be installed from a cabinet depth of 120 mm using an appropriate EDF or WR mounting frame ordered separately.
Typical Applications
- Electrical sub-distribution systems.
- Touch protection within distribution boards.
- ABB CombiLine interior expansion systems.
- EDF and WR mounting-frame assemblies.
- Commercial building distribution boards.
- Industrial electrical panels.
- Protected expansion areas for compatible system components.
- Distribution-board expansion and refurbishment projects.
