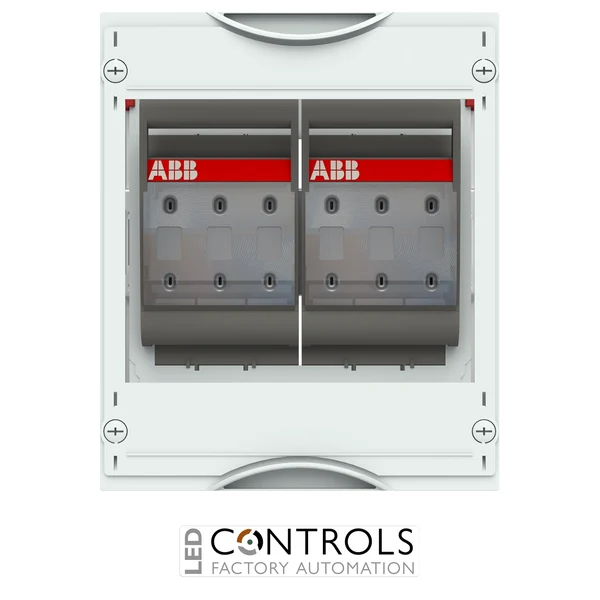

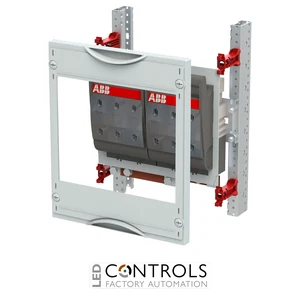

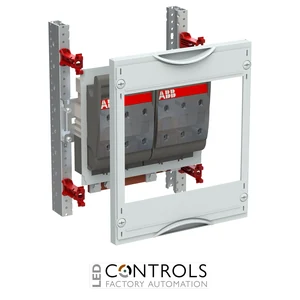

ABB MT136B is a 1 PW CombiLine NH00 fuse switch-disconnector module equipped with two ABB XLP NH00 disconnectors and a 3-pole busbar system rated up to 320 A for low-voltage distribution assemblies.
Why Choose the ABB MT136B NH00 Fuse Switch Expansion 1PW?
The ABB MT136B is a factory-assembled CombiLine NH00 fuse switch-disconnector module designed for protected power distribution within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041293R9999, the module is pre-equipped with two ABB XLP NH00 fuse switch-disconnectors and a coordinated three-pole busbar system.
The MT136B is configured for 1 panel width (1 PW), with a field width of 250 mm and a module height of 300 mm. Its 2 RE format provides 24 space units, creating a compact solution for integrating two NH00 fuse switch-disconnectors into commercial and industrial sub-distribution assemblies.
The integrated 3-pole busbar system has a maximum rated current of 320 A and uses M8 connection screws. Plastic covers with equipment cut-outs, a RAL 7035 finish and 90-degree press-and-turn closures complete the module. The MT136B is suitable for compatible cabinets from 200 mm depth, with the required EDF or WR mounting frame ordered separately.
Key Advantages
Factory-equipped NH00 fuse switch-disconnector module for ABB CombiLine systems.
Includes two ABB XLP NH00 fuse switch-disconnectors.
Integrated 3-pole busbar system simplifies power distribution.
Maximum rated current of 320 A.
Compact 1 PW format uses cabinet space efficiently.
24 space units within a 300 mm-high module.
Suitable for both EDF and WR mounting-frame expansion.
Factory-mounted construction reduces panel-building assembly work.
Key Features
ABB CombiLine internal mounting system.
1 panel width (1 PW).
2 raster units (2 RE).
300 mm module height.
250 mm field width.
24 space units.
Equipped with 2 NH00 fuse switch-disconnectors.
ABB XLP fuse switch-disconnector equipment.
3-pole busbar system.
320 A maximum rated current.
M8 busbar connection screws.
Separator shutters incorporated in the populated module arrangement.
Plastic covers with equipment cut-outs.
RAL 7035 cover finish.
90-degree press-and-turn cover closure.
Reliable NH00 Fuse Protection for Distribution Systems
NH fuse switch-disconnectors combine fuse-based circuit protection with a means of safely switching and isolating electrical circuits. The ABB MT136B integrates two NH00 fuse switch-disconnectors with a coordinated three-pole busbar system, providing a compact way to incorporate fused outgoing circuits into CombiLine low-voltage distribution assemblies.
With a maximum module current rating of 320 A, the MT136B is suited to applications requiring robust fused distribution within a relatively narrow cabinet field. Its factory-assembled design, separator shutters and coordinated protective covers support efficient panel construction while the EDF and WR mounting options allow integration into a range of compatible ABB cabinet configurations.
Typical Applications
Low-voltage sub-distribution boards.
ABB CombiLine distribution assemblies.
NH00 fused outgoing circuits.
Commercial building power distribution.
Industrial low-voltage distribution panels.
Feeder protection and circuit isolation.
Panel-building applications requiring two NH00 fuse switch-disconnectors in a compact 1 PW field.
Technical Specifications
Tick the specs you need, then view products that match.
Current
320 A
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Series
CombiLine
ABB order code
2CPX041293R9999
Product type
NH00 fuse switch-disconnector expansion module
Panel width
1 PW
Raster units
2 RE
Module height
300 mm
Field width
250 mm
Space units
24
Fuse switch-disconnector size
NH00
Number of fuse switch-disconnectors
2
Fuse switch-disconnector family
ABB XLP
Number of poles
3
Busbar system
3-pole
Maximum rated current
320 A
Busbar connection
M8 screws
Minimum applicable cabinet depth
200 mm
Cover material
Plastic
Cover design
With cut-out
Cover colour
RAL 7035
Cover closure
90-degree press-and-turn
Installation
Mounted and installed in cabinet
Compatible mounting frames
EDF / WR
Product group
DESUJ Sub Distribution
Frequently Asked Questions
What is the ABB MT136B used for?
The ABB MT136B is a CombiLine NH00 fuse switch-disconnector module used to provide fused switching, isolation and power distribution within compatible ABB low-voltage distribution cabinets.
How many NH00 fuse switch-disconnectors are fitted to the MT136B?
The MT136B is factory-equipped with two NH00 fuse switch-disconnectors from the ABB XLP range.
What is the maximum rated current of the ABB MT136B?
The integrated three-pole busbar system has a maximum rated current of 320 A.
What are the module dimensions of the MT136B?
The MT136B has a module height of 300 mm and a field width of 250 mm. It is a 1 PW, 2 RE module providing 24 space units.
What cabinet and mounting-frame arrangements are suitable for the MT136B?
The MT136B is suitable for compatible cabinets from 200 mm depth and can be expanded using an appropriate EDF or WR mounting frame, which must be ordered separately.
