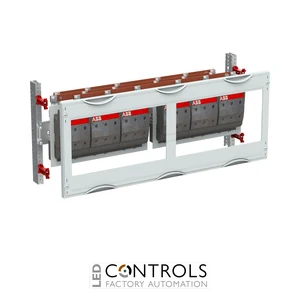

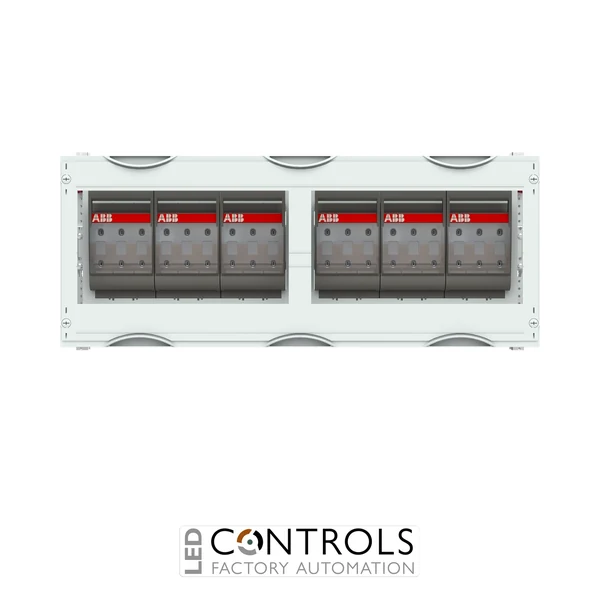

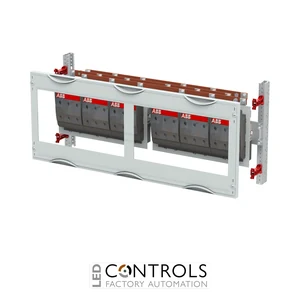

ABB MT336B is a 3PW CombiLine NH00 fuse switch disconnector expansion module equipped with six NH00 fuse switch disconnectors and a 3-pole busbar system rated up to 320 A.
Why Choose the ABB MT336B NH00 Fuse Switch Expansion 3PW?
The ABB MT336B is a CombiLine NH00 fuse switch disconnector expansion module designed for structured low-voltage power distribution within professional electrical cabinets. Supplied under ABB order code 2CPX041295R9999, the MT336B is a fully populated, cabinet-mounted module in a 3PW / 750 mm-wide configuration.
The module is equipped with six ABB NH00 fuse switch disconnectors and incorporates a 3-pole, 320 A busbar system. With a module height of 2 RE / 300 mm, a width of 3 PW / 750 mm and 72 space units, the MT336B provides a practical integrated solution for multiple fused outgoing circuits.
Designed for cabinets with a minimum depth of 200 mm, the MT336B features plastic covers with equipment cut-outs, RAL 7035 finish and 90-degree press-and-turn fasteners. Its pre-equipped construction simplifies the integration of NH00 fused switching into compatible ABB CombiLine distribution assemblies, while the required EDF or WR mounting frame is ordered separately.
Key Advantages
Factory-equipped with six NH00 fuse switch disconnectors.
Integrated 3-pole busbar system rated up to 320 A.
Wide 3PW / 750 mm configuration for multiple fused outgoing circuits.
Provides 72 space units within a 300 mm-high module.
Compatible with EDF and WR mounting frames for flexible system integration.
Key Features
ABB CombiLine interior expansion system.
Designed for NH00 fuse switch disconnector applications.
Equipped with 6 NH00 fuse switch disconnectors.
2 RE / 300 mm module height.
3 PW / 750 mm module width.
72 space units.
3-pole busbar system.
Maximum rated current of 320 A.
Plastic covers with equipment cut-outs.
90-degree press-and-turn fasteners.
RAL 7035 cover finish.
Suitable for cabinets from 200 mm depth.
Designed for use with compatible EDF or WR mounting frames.
Integrated NH00 Fused Distribution
The ABB MT336B combines six NH00 fuse switch disconnectors with a common 3-pole busbar system to provide an integrated fused distribution section within a CombiLine cabinet. This arrangement enables multiple outgoing circuits to be organised within a single module while providing fuse protection and switch-disconnection functionality for each NH00 position.
With its 750 mm width, 72 space units and maximum rated current of 320 A, the MT336B is suited to substantial low-voltage distribution applications requiring multiple NH00 fused ways. The module is supplied mounted for cabinet installation, while the appropriate EDF or WR mounting frame must be selected and ordered separately.
Typical Applications
Low-voltage power distribution cabinets.
ABB CombiLine sub-distribution assemblies.
NH00 fused outgoing circuit distribution.
Commercial and industrial switchgear assemblies.
Multi-circuit fused power distribution sections.
Professional panel-building and electrical installation projects.
Technical Specifications
Tick the specs you need, then view products that match.
Current
320 A
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Series
CombiLine Interior Expansion System
ABB order code
2CPX041295R9999
Product type
NH00 fuse switch disconnector expansion module
Configuration
3PW / 3 panel widths
Module height
2 RE / 300 mm
Module width
3 PW / 750 mm
Space units
72
Fuse switch size
NH00
Number of fuse switch disconnectors
6
Number of poles
3
Busbar system
3-pole
Rated current
Maximum 320 A
Rated operational voltage
Maximum 400 V
Equipment manufacturer
ABB
Cover material
Plastic
Cover design
With cut-outs
Cover fastener
90-degree press-and-turn closure
Colour
RAL 7035
Minimum cabinet depth
200 mm
Mounting system
EDF or WR mounting frame
Installation
Mounted and installed in cabinet
Product group
DESUJ Sub Distribution
Frequently Asked Questions
What is the ABB MT336B used for?
The ABB MT336B is an NH00 fuse switch disconnector expansion module designed to provide multiple fused and switch-disconnected outgoing circuits within compatible ABB CombiLine low-voltage distribution cabinets.
How many NH00 fuse switch disconnectors are fitted to the MT336B?
The MT336B is factory-equipped with six NH00 fuse switch disconnectors.
What is the rated current of the ABB MT336B?
The ABB MT336B incorporates a 3-pole busbar system with a maximum rated current of 320 A.
What are the module dimensions of the ABB MT336B?
The MT336B has a module height of 2 RE / 300 mm and a width of 3 PW / 750 mm, providing 72 space units.
What cabinet depth is required for the ABB MT336B?
The MT336B is designed for installation in cabinets with a minimum depth of 200 mm.
Does the ABB MT336B include the mounting frame?
No. The appropriate EDF or WR mounting frame must be ordered separately for installation of the MT336B module.
