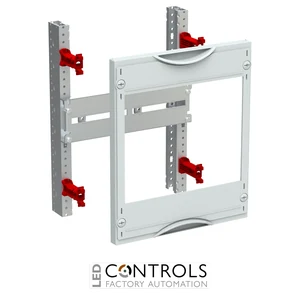

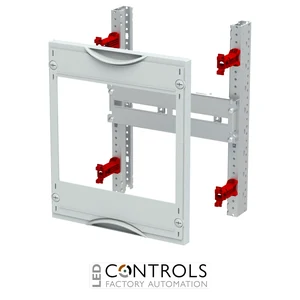

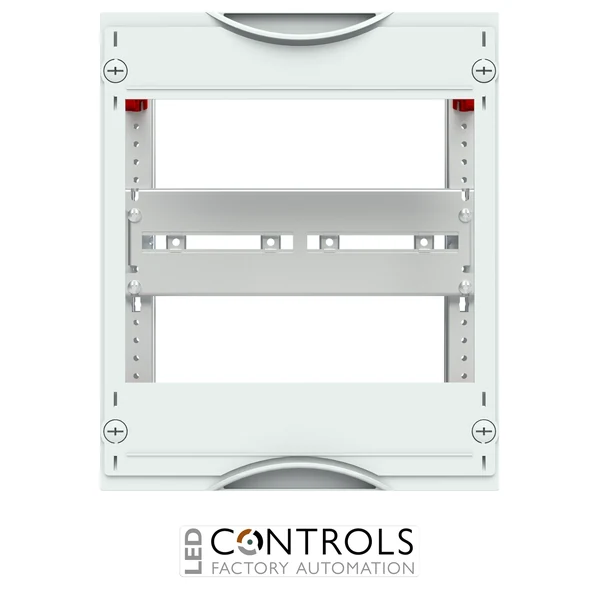

ABB MT136 CombiLine N NH00 fuse switch expansion, order code 2CPX041299R9999, is a 1 PW module with two NH00 fuse switch-disconnector positions, 24 space units and a 3-pole busbar system rated up to 320 A for compatible ABB sub-distribution systems.
Why Choose the ABB MT136 NH00 Fuse Switch Expansion?
The ABB MT136 is a factory-assembled CombiLine N NH00 fuse switch-disconnector expansion module designed for compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX041299R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a 1 PW / 250 mm field width.
The MT136 has a 2 RE / 300 mm module height, provides 24 space units and is configured for two NH00 fuse switch-disconnectors. The assembled module is designed for ABB ZH411 or ZH412 NH00 devices rated up to 160 A and incorporates a 3-pole 320 A busbar system.
Designed for professional low-voltage power distribution, the MT136 combines compact fuse-switch installation capacity with a structured busbar arrangement. It is suitable for cabinets from 200 mm deep and can be used with compatible EDF or WR mounting frames, which are ordered separately.
Designed for ABB ZH411 or ZH412 devices rated up to 160 A.
Integrated 3-pole 320 A busbar system.
Compatible with both EDF and WR mounting-frame installations.
Key Features
ABB MT136 CombiLine N fuse switch expansion.
1 PW / 250 mm field width.
2 RE / 300 mm module height.
24 space units.
Capacity for 2 NH00 fuse switch-disconnectors.
For ABB ZH411 and ZH412 NH00 devices.
NH00 device rating up to 160 A.
3-pole busbar system.
Maximum busbar-system rated current of 320 A.
M8 busbar connection screws.
Suitable from a cabinet depth of 200 mm.
Compatible EDF or WR mounting frame ordered separately.
Compact NH00 Fuse-Switch Distribution
The ABB MT136 provides a structured installation platform for two NH00 fuse switch-disconnectors within a compact 250 mm field width. Its 3-pole busbar system is rated up to 320 A, allowing the module to integrate fused outgoing circuits into compatible CombiLine N sub-distribution assemblies.
NH00 fuse switch-disconnectors combine circuit isolation with fuse-based overcurrent protection in a compact format. By integrating two NH00 positions and the associated busbar system into a factory-assembled module, the MT136 supports efficient and orderly construction of professional low-voltage distribution boards.
Tick the specs you need, then view products that match.
Current
320 A
Product Series
S&J CombiLine N
Device Type
Mounting / Expansion Module
Series
CombiLine N
ABB order code
2CPX041299R9999
Product group
DESUJ Sub Distribution
Product type
NH00 fuse switch-disconnector expansion module
Field width
1 PW / 250 mm
Module height
2 RE / 300 mm
Space units
24
NH00 positions
2
Compatible fuse switch-disconnectors
ABB ZH411 / ZH412
Fuse switch-disconnector rating
Up to 160 A
Busbar system
3-pole
Maximum rated current
320 A
Busbar connection
M8 screws
Minimum cabinet depth
200 mm
Mounting frame
EDF or WR, ordered separately
Frequently Asked Questions
What is the ABB MT136 used for?
The ABB MT136 is a CombiLine N NH00 fuse switch-disconnector expansion module designed to provide two NH00 fuse-switch positions within compatible ABB sub-distribution cabinets.
How many NH00 fuse switch-disconnectors does the MT136 accommodate?
The MT136 is configured for two NH00 fuse switch-disconnectors within its 1 PW / 250 mm field width.
Which fuse switch-disconnectors are compatible with the MT136?
The module is designed for compatible ABB ZH411 or ZH412 NH00 fuse switch-disconnectors rated up to 160 A.
What is the busbar rating of the ABB MT136?
The MT136 uses a 3-pole busbar system rated up to 320 A with M8 connection screws.
What is the ABB order code for the MT136?
The ABB order code for the MT136 is 2CPX041299R9999.
