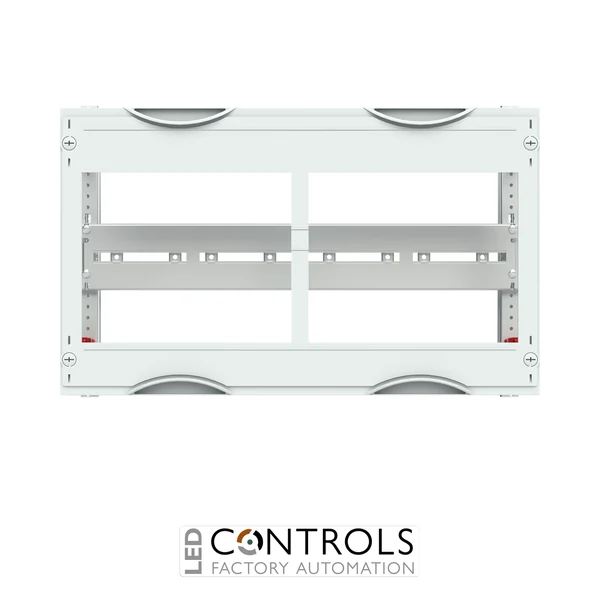

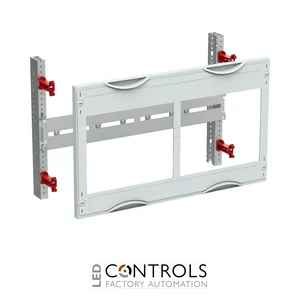

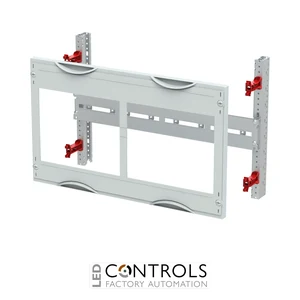

ABB MT236 CombiLine N NH00 fuse switch expansion, order code 2CPX041300R9999, is a 2 PW module with 48 space units, capacity for four NH00 fuse switch-disconnectors and a 3-pole busbar system rated up to 320 A for compatible ABB sub-distribution systems.
Why Choose the ABB MT236 NH00 Fuse Switch Expansion?
The ABB MT236 is a factory-assembled CombiLine N NH00 fuse switch-disconnector expansion module designed for compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX041300R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a 2 PW / 500 mm field width.
The MT236 has a 2 RE / 300 mm module height and provides 48 space units. It is unpopulated and designed for the installation of up to four NH00 fuse switch-disconnectors, providing a structured solution for fused outgoing circuits in professional low-voltage distribution assemblies.
Designed for a 3-pole busbar system with a maximum rated current of 320 A, the MT236 can accommodate compatible ABB ZH411 or ZH412 NH00 fuse switch-disconnectors rated up to 160 A. It features RAL 7035 plastic covers with equipment cut-outs and 90-degree press-and-turn closures and is suitable for cabinets from 200 mm deep.
2 PW / 500 mm field width for substantial fused distribution capacity.
Accommodates up to four NH00 fuse switch-disconnectors.
Suitable for compatible ABB ZH411 or ZH412 devices rated up to 160 A.
Designed for a 3-pole busbar system rated up to 320 A.
Compatible with EDF and WR mounting-frame installations.
Key Features
ABB MT236 CombiLine N fuse switch expansion.
2 PW / 500 mm field width.
2 RE / 300 mm module height.
48 space units.
Unpopulated for installation of 4 NH00 fuse switch-disconnectors.
Compatible with ABB ZH411 and ZH412 NH00 devices.
Fuse switch-disconnector rating up to 160 A.
3-pole busbar system.
Maximum rated current of 320 A.
RAL 7035 plastic covers with equipment cut-outs.
90-degree press-and-turn cover closures.
Suitable from a cabinet depth of 200 mm.
EDF or WR mounting frame ordered separately.
Structured NH00 Fused Power Distribution
The ABB MT236 provides dedicated installation capacity for four NH00 fuse switch-disconnectors within a 500 mm-wide CombiLine N field. Its 3-pole busbar arrangement supports a maximum rated current of 320 A, enabling multiple fused outgoing circuits to be organised within a compact and system-compatible distribution-board section.
Compatible ABB ZH411 and ZH412 NH00 fuse switch-disconnectors can be installed as required, allowing the module to be configured for the application's circuit-protection and isolation requirements. The 48-space-unit format and protective covers help maintain a structured internal layout in commercial and industrial low-voltage distribution systems.
Tick the specs you need, then view products that match.
Current
320 A
Device Type
Mounting / Expansion Module
Product Series
S&J CombiLine N
Series
CombiLine N
ABB order code
2CPX041300R9999
Product group
DESUJ Sub Distribution
Product type
NH00 fuse switch-disconnector expansion module
Field width
2 PW / 500 mm
Module height
2 RE / 300 mm
Space units
48
Equipment configuration
Unpopulated
NH00 positions
4
Compatible fuse switch-disconnectors
ABB ZH411 / ZH412
Fuse switch-disconnector rating
Up to 160 A
Busbar system
3-pole
Maximum rated current
320 A
Minimum cabinet depth
200 mm
Cover material
Plastic
Cover colour
RAL 7035
Cover design
With cut-out
Cover closure
90-degree press-and-turn
Mounting frame
EDF or WR, ordered separately
Frequently Asked Questions
What is the ABB MT236 used for?
The ABB MT236 is a CombiLine N NH00 fuse switch-disconnector expansion module designed to provide installation capacity for up to four NH00 fuse switch-disconnectors within compatible ABB sub-distribution cabinets.
How many NH00 fuse switch-disconnectors can the MT236 accommodate?
The MT236 is unpopulated and provides positions for up to four NH00 fuse switch-disconnectors within its 2 PW / 500 mm field width.
Which fuse switch-disconnectors are suitable for the MT236?
The module is designed for compatible ABB ZH411 or ZH412 NH00 fuse switch-disconnectors rated up to 160 A.
What is the maximum rated current of the ABB MT236?
The MT236 is designed for a 3-pole busbar system with a maximum rated current of 320 A.
What is the ABB order code for the MT236?
The ABB order code for the MT236 is 2CPX041300R9999.
Trusted ABB CombiLine Distribution Components
ABB CombiLine N fuse-switch modules provide structured, system-compatible installation capacity for fused feeder protection and isolation within professional low-voltage sub-distribution assemblies.
