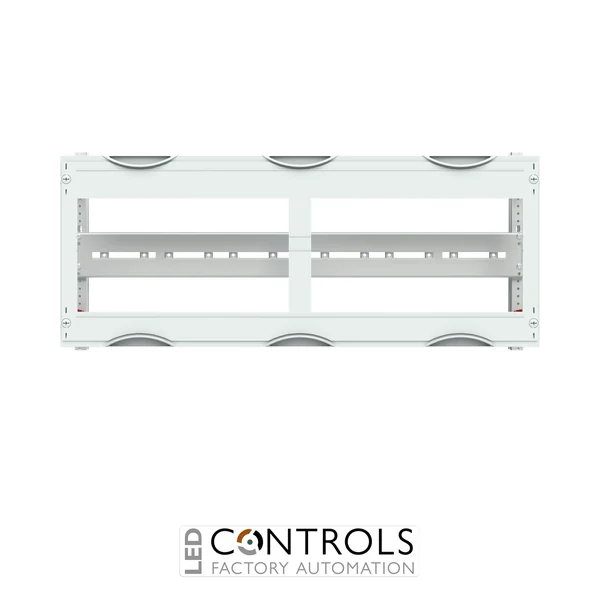

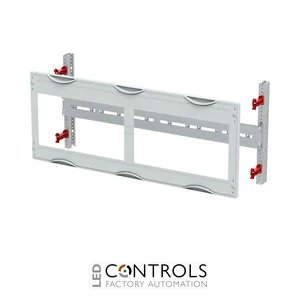

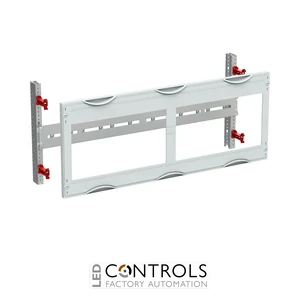

ABB MT336 2CPX041301R9999 is a 3 PW CombiLine NH00 fuse switch disconnector expansion module for up to six NH00 devices on a 3-pole busbar system with a maximum rated current of 320 A.
Why Choose the ABB MT336 NH00 Fuse Switch Expansion Module?
The ABB MT336, order code 2CPX041301R9999, is a mounted NH00 fuse switch disconnector expansion module designed for ABB CombiLine electrical distribution systems. Part of ABB’s DESUJ Sub Distribution product group, it provides a structured solution for integrating multiple NH00 fuse switch disconnectors into commercial and industrial sub-distribution cabinets.
The MT336 is supplied as an unequipped interior fitting module designed for the installation of up to six NH00 fuse switch disconnectors. It is configured for a 3-pole busbar system and supports a maximum rated current of 320 A, providing a practical platform for fused power distribution while allowing the required NH00 devices to be selected separately for the application.
With a module height of 2 GU / 300 mm, a panel width of 3 PW / 750 mm and 72 space units, the MT336 provides substantial capacity within the ABB CombiLine modular system. Its plastic cover incorporates the required cut-outs for the fuse switch disconnectors and uses a 90-degree press-and-turn closure, while the module is suitable for cabinets from 200 mm depth.
Unequipped configuration for up to six NH00 fuse switch disconnectors.
3-pole busbar system.
320 A maximum rated current.
Designed for NH00 size fuse switch disconnectors.
Plastic cover with dedicated equipment cut-outs.
90-degree press-and-turn cover closure.
RAL 7035 light grey finish.
Suitable for cabinets from 200 mm depth.
Compatible with ABB EDF or WR mounting frames, ordered separately.
Reliable NH00 Fused Power Distribution
NH00 fuse switch disconnectors combine fuse protection with switching and isolation functions for electrical distribution circuits. The ABB MT336 provides the mechanical and busbar-system infrastructure required to integrate up to six NH00 fuse switch disconnectors into a CombiLine distribution assembly, helping panel builders create organised and serviceable fused outgoing circuits.
The MT336 is supplied unequipped so that suitable NH00 fuse switch disconnectors can be selected according to the installation requirements. Its 3-pole, 320 A busbar arrangement supports efficient power distribution across the installed devices, while the modular CombiLine format enables straightforward integration into compatible ABB distribution cabinets.
Typical Applications
Commercial and industrial sub-distribution boards.
ABB CombiLine electrical cabinet assemblies.
NH00 fused outgoing circuits.
Industrial power distribution systems.
Electrical switchgear and control cabinets.
Panel building and modular distribution installations.
Technical Specifications
Tick the specs you need, then view products that match.
Current
320 A
Product Series
S&J CombiLine N
Device Type
Mounting / Expansion Module
Series
CombiLine
Order code
2CPX041301R9999
EAN / GTIN
4011617413011
Product group
DESUJ Sub Distribution
Product type
NH00 fuse switch disconnector expansion module
Construction
Interior fitting module, mounted for cabinet installation
Fuse system size
NH00
Module height
2 GU / 300 mm
Panel width
3 PW / 750 mm
Depth
200 mm
Space units
72
Fuse switch disconnector positions
6
Number of poles
3
Maximum rated current
320 A
Rated operational voltage
400 V AC
Busbar system
3-pole
Equipment configuration
Unequipped
Cover material
Plastic
Cover design
With cut-out
Cover closure
90-degree press-and-turn closure
Colour
RAL 7035 light grey
Minimum cabinet depth
200 mm
Mounting system
EDF or WR mounting frame
Applicable standards
DIN EN 61439-2 / DIN EN 61439-3
Country of origin
Germany
Frequently Asked Questions
What is the ABB MT336 used for?
The ABB MT336 is an NH00 fuse switch disconnector expansion module designed for installing multiple NH00 fuse switch disconnectors within ABB CombiLine electrical distribution cabinets.
How many NH00 fuse switch disconnectors can the MT336 accommodate?
The MT336 is designed to accommodate up to six NH00 fuse switch disconnectors.
What is the maximum rated current of the ABB MT336?
The MT336 is designed for a 3-pole busbar system with a maximum rated current of 320 A.
What are the dimensions of the ABB MT336?
The MT336 has a module height of 300 mm, a panel width of 750 mm and a depth of 200 mm, corresponding to 2 GU and 3 PW within the CombiLine system.
Are the NH00 fuse switch disconnectors supplied with the MT336?
No. The MT336 is supplied unequipped for the installation of up to six NH00 fuse switch disconnectors. A compatible EDF or WR mounting frame must also be ordered separately.
Trusted ABB Distribution System Components
ABB CombiLine components provide modular solutions for professional electrical distribution assemblies, helping panel builders create organised, protected and adaptable fused power distribution systems for commercial and industrial installations.
Current
320 A
Product Series
S&J CombiLine N
Device Type
Mounting / Expansion Module
Series
CombiLine
Order code
2CPX041301R9999
EAN / GTIN
4011617413011
Product group
DESUJ Sub Distribution
Product type
NH00 fuse switch disconnector expansion module
Construction
Interior fitting module, mounted for cabinet installation
