Why Choose the ABB MT145 NH2 Fuse Switch Expansion 1PW?

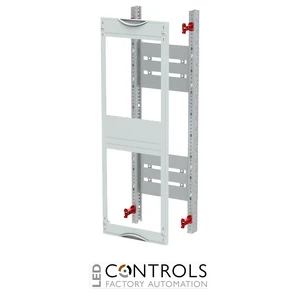

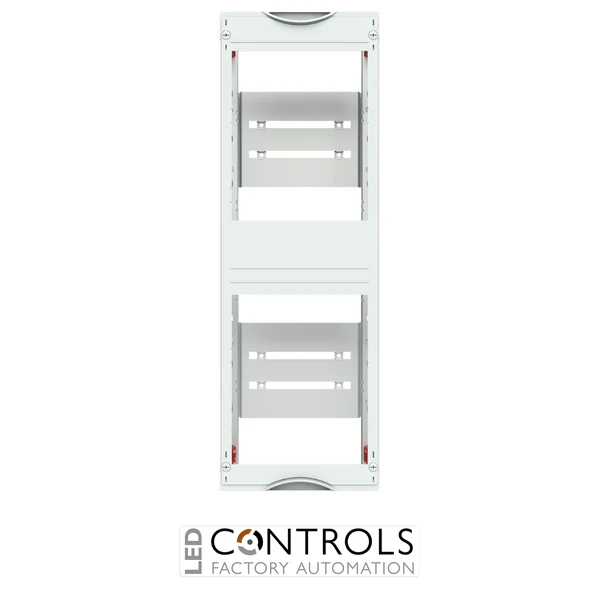

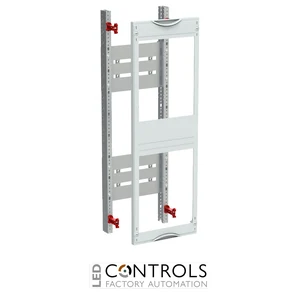

The ABB MT145 is a CombiLine NH2 fuse switch-disconnector expansion module designed for integration into compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041326R9999, the module is mounted and installed in the cabinet and is supplied unpopulated for the installation of two NH2 fuse switch-disconnectors.
The MT145 is configured for 1 panel width (1 PW), with a field width of 250 mm and a module height of 750 mm. Its 5 RE format provides 60 space units, offering a compact vertical field for integrating two NH2 fused feeder positions into commercial and industrial distribution assemblies.
Designed for a 3-pole busbar system, the MT145 supports a maximum rated current of 630 A in the specified configuration. The module uses plastic covers with equipment cut-outs, a RAL 7035 finish and 90-degree press-and-turn closures. It is suitable for compatible cabinets from 215 mm depth and can be used with separately ordered EDF or WR mounting frames.
Key Advantages
- Purpose-designed NH2 fuse switch-disconnector expansion module for ABB CombiLine systems.
- Prepared for installation of two NH2 fuse switch-disconnectors.
- Designed around a 3-pole busbar system.
- Maximum rated current of 630 A.
- Compact 1 PW configuration uses only a 250 mm-wide cabinet field.
- 60 space units within a 5 RE module.
- Unpopulated design allows suitable NH2 fuse switch-disconnectors to be selected for the finished assembly.
- Compatible with both EDF and WR mounting-frame systems.
Key Features
- ABB CombiLine internal mounting system.
- 1 panel width (1 PW).
- 5 raster units (5 RE).
- 750 mm module height.
- 250 mm field width.
- 60 space units.
- Unpopulated for installation of 2 NH2 fuse switch-disconnectors.
- Suitable for ABB NH2 fuse switch-disconnector arrangements.
- 3-pole busbar system.
- 630 A maximum rated current.
- Supplied without separator shutters.
- Plastic covers with equipment cut-outs.
- RAL 7035 cover finish.
- 90-degree press-and-turn cover closures.
- Suitable for cabinets from 215 mm depth.
Flexible NH2 Fuse Protection for Distribution Systems
NH2 fuse switch-disconnectors combine high-capacity fuse protection with switching and isolation functionality for demanding low-voltage circuits. The ABB MT145 provides the prepared CombiLine infrastructure for installing two NH2 fuse switch-disconnectors, allowing panel builders to configure protected outgoing feeders within a narrow 1 PW cabinet field.
With a maximum rated current of 630 A and a three-pole busbar-system arrangement, the MT145 provides a coordinated platform for substantial commercial and industrial distribution applications. Its unpopulated format allows the required NH2 devices to be selected separately, while the factory-installed module and protective covers support efficient integration into compatible ABB distribution cabinets.
Typical Applications
- Low-voltage sub-distribution boards.
- ABB CombiLine distribution assemblies.
- NH2 fused outgoing feeder circuits.
- Commercial building power distribution.
- Industrial low-voltage distribution panels.
- Feeder protection, switching and circuit isolation.
- Panel-building applications requiring two NH2 fuse switch-disconnectors in a compact 1 PW field.
