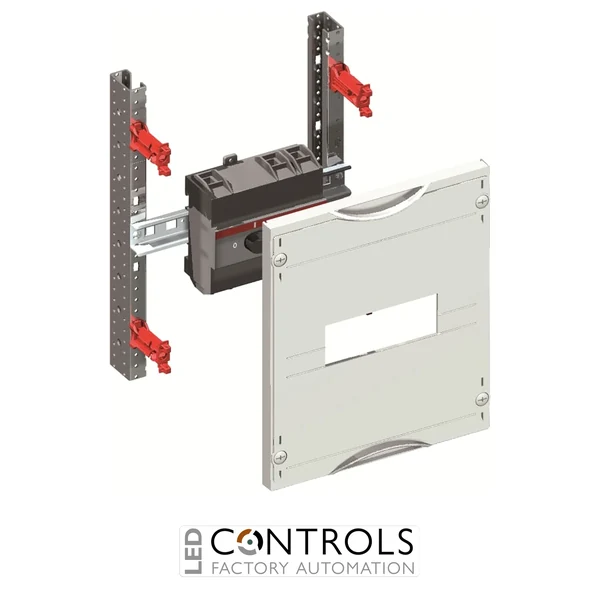

Why Choose the ABB MA160ALAB OT160G Switch Expansion Module?
The ABB MA160ALAB, order code 2CPX041370R9999, is an equipped switch-disconnector expansion module designed for ABB CombiLine electrical distribution systems. Part of ABB’s DESUJ Sub Distribution product group, it is supplied with an ABB OT160G switch-disconnector and provides a compact solution for switching and isolating electrical circuits in commercial and industrial sub-distribution cabinets.
The MA160ALAB is equipped with one ABB OT160G 3-pole switch-disconnector and is rated for a maximum current of 160 A. The OT160G is a compact switch-disconnector designed for dependable circuit isolation, while the module’s DIN rail mounting arrangement and pre-equipped construction simplify integration into compatible ABB distribution assemblies.
With a module height of 2 GU / 300 mm, a panel width of 1 PW / 250 mm and 24 space units, the MA160ALAB provides a space-efficient switching solution. It can be installed in cabinets from 200 mm depth and is compatible with both ABB EDF and WR mounting frames, which must be ordered separately.
Key Advantages
- Complete OT160G switch-disconnector expansion module for ABB CombiLine systems.
- Supplied equipped with one ABB OT160G 3-pole switch-disconnector.
- 160 A rated current for commercial and industrial distribution applications.
- 1 PW / 250 mm panel width provides a compact switching and isolation solution.
- DIN rail mounting supports straightforward integration within compatible distribution assemblies.
- Plastic cover with equipment cut-out and secure 90-degree press-and-turn closure.
Key Features
- ABB MA160ALAB CombiLine switch-disconnector module.
- ABB order code 2CPX041370R9999.
- Equipped with one ABB OT160G switch-disconnector.
- 3-pole switching configuration.
- 160 A rated current.
- 2 GU / 300 mm module height.
- 1 PW / 250 mm panel width.
- 24 space units.
- Assembly on 35 × 15 mm DIN rails.
- 400 V AC rated operational voltage.
- 690 V rated insulation voltage.
- Plastic cover with dedicated equipment cut-out.
- 90-degree press-and-turn cover closure.
- RAL 7035 light grey finish.
- Suitable for cabinets from 200 mm depth.
- Compatible with ABB EDF or WR mounting frames, ordered separately.
Reliable Switching and Isolation for Electrical Distribution
Switch-disconnectors provide a dependable means of switching and isolating electrical circuits, allowing sections of a distribution system to be disconnected for operation, servicing or maintenance. The ABB MA160ALAB combines the modular CombiLine interior fitting system with an integrated OT160G switch-disconnector to provide a compact and practical isolation solution.
The fitted ABB OT160G is a 3-pole switch-disconnector rated at 160 A. Its compact construction and DIN rail mounting make it well suited to distribution applications where reliable switching performance and efficient use of cabinet space are important, while the equipped MA160ALAB module reduces the amount of component selection and assembly required during panel construction.
Typical Applications
- Commercial and industrial sub-distribution boards.
- ABB CombiLine electrical cabinet assemblies.
- Main and local circuit isolation.
- Industrial electrical distribution systems.
- Electrical switchgear and control cabinets.
- Panel building and modular power distribution installations.
