Why Choose the ABB MA200ALAB OT200E03P Switch Expansion 1PW?

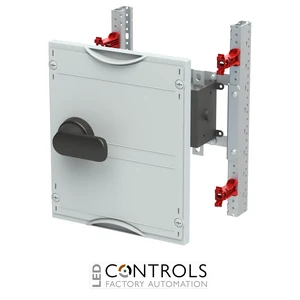

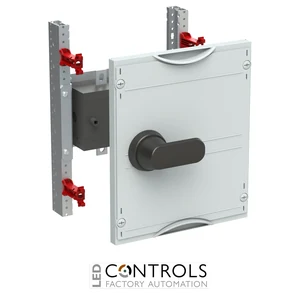

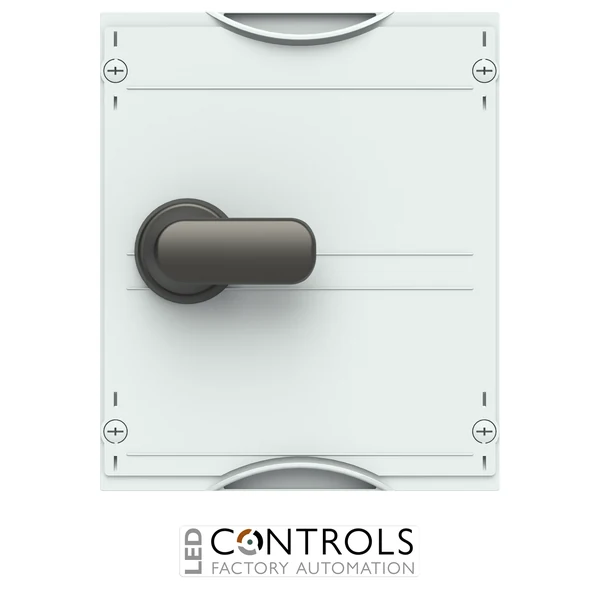

The ABB MA200ALAB is a CombiLine load-break switch expansion module designed for structured switching and isolation within low-voltage distribution cabinets. Supplied under ABB order code 2CPX041371R9999, the module is factory-equipped with one ABB OT200E03P 3-pole load-break switch.
The MA200ALAB has a module height of 2 RE / 300 mm, a field width of 1 FB / 250 mm and provides 24 space units. Its integrated OT200E03P switch has a rated current of 200 A, providing a compact solution for incorporating a substantial switching and isolation point into a CombiLine assembly.
Designed for cabinets from 200 mm depth, the module features a plastic cover with equipment cut-out, RAL 7035 finish and 90-degree press-and-turn fasteners. The switch is mounted on a mounting cross beam, and the module can be used with compatible EDF or WR mounting frames, which are ordered separately.
Key Advantages
- Factory-equipped with an ABB OT200E03P load-break switch.
- 200 A rated current for substantial low-voltage switching applications.
- 3-pole switching for three-phase distribution systems.
- Compact 1PW / 250 mm field width helps optimise cabinet space.
- Supplied as a mounted CombiLine cabinet module for straightforward system integration.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB CombiLine interior expansion system.
- Factory-equipped switch module.
- Integrated ABB OT200E03P load-break switch.
- 3-pole switching configuration.
- Rated current of 200 A.
- 2 RE / 300 mm module height.
- 1 FB / 250 mm field width.
- 24 space units.
- Switch mounted on a mounting cross beam.
- Plastic cover with equipment cut-out.
- 90-degree press-and-turn fasteners.
- RAL 7035 cover finish.
- Suitable for cabinets from 200 mm depth.
- Suitable for expansion on EDF or WR mounting frames.
The ABB MA200ALAB combines the CombiLine modular interior system with an installed OT200E03P 3-pole load-break switch. This provides a dedicated switching and isolation point for three-phase low-voltage distribution while avoiding the need to source and mechanically integrate the switch into an empty module separately.
Its compact 250 mm field width and 300 mm module height make the MA200ALAB suitable where cabinet space needs to be used efficiently. The module is supplied mounted and equipped with the 200 A switch, while the appropriate EDF or WR mounting frame must be selected and ordered separately.
Typical Applications
- Low-voltage power distribution cabinets.
- ABB CombiLine sub-distribution assemblies.
- Three-phase load switching and isolation.
- Main and distribution switching sections.
- Commercial and industrial electrical panels.
- Professional switchboard and panel-building projects.
