Why Choose the ABB MA630ALAB OT630E03P Switch Expansion 2PW?

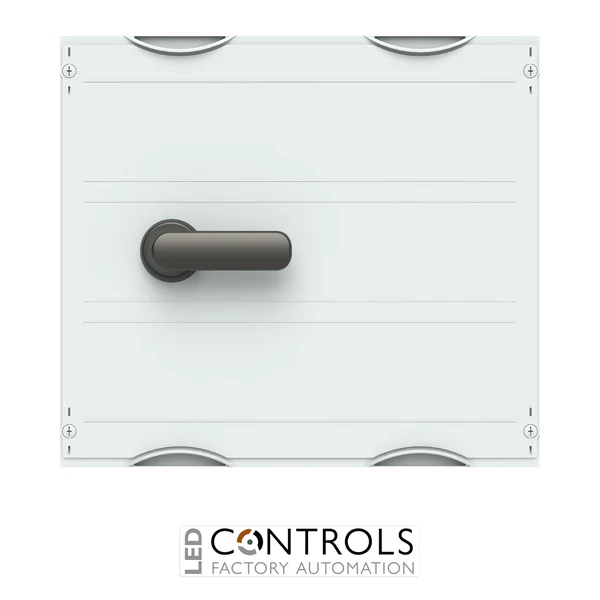

The ABB MA630ALAB, order code 2CPX041374R9999, is a populated load break switch expansion module designed for ABB CombiLine low-voltage sub-distribution systems. Supplied mounted for cabinet installation, it incorporates an ABB OT630E03P 3-pole switch-disconnector to provide reliable high-current switching and isolation within professional electrical distribution assemblies.

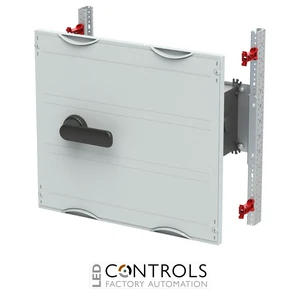

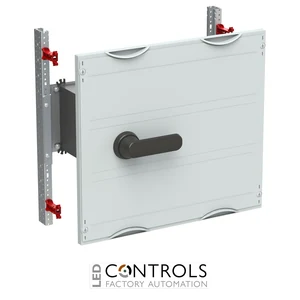

Designed for demanding commercial and industrial power distribution, the MA630ALAB has a rated operational current of 630 A. The installed ABB OT630E03P provides 3-pole switching, while the module's mounting cross-member arrangement and protective plastic cover with equipment cut-out provide an integrated solution for incorporating the switch into a compatible CombiLine cabinet.
The MA630ALAB occupies 2 panel widths (PW/FB) and 3 grid units (GU/RE), with dimensions of 450 mm high × 500 mm wide × 260 mm deep and 72 space units (PLE). It is suitable for cabinets from 275 mm deep and is designed for installation using a compatible WR mounting frame, which must be ordered separately.
Key Advantages
- Complete 630 A load break switch expansion module for ABB CombiLine systems.
- Supplied populated with an ABB OT630E03P switch-disconnector.
- 3-pole switching for three-phase low-voltage distribution applications.
- 630 A rated operational current for demanding high-current installations.
- Switch mounted on a mounting cross-member for secure cabinet integration.
- Provides 72 space units (PLE) within a practical 2-panel-width format.
- Plastic protective cover with equipment cut-out and secure push-turn fastener.
- Designed for integration with a compatible WR mounting frame.
Key Features
- ABB MA630ALAB load break switch module.
- ABB order code 2CPX041374R9999.
- Part of the ABB CombiLine interior expansion system.
- Populated with ABB OT630E03P switch-disconnector.
- 630 A rated operational current.
- 3-pole switch configuration.
- Designed for a 3-pole busbar system.
- Equipment mounted on a mounting cross-member.
- 2 panel widths (PW/FB) and 3 grid units (GU/RE).
- 72 space units (PLE).
- Plastic cover with equipment cut-out.
- 90-degree push-turn cover fastener.
- RAL 7035 light grey finish.
- Suitable for cabinets from 275 mm depth.
- Designed for a separately ordered WR mounting frame.
Load break switches provide controlled switching and isolation of electrical circuits under normal operating conditions. The ABB MA630ALAB integrates an OT630E03P 3-pole switch-disconnector into a modular CombiLine assembly, providing a convenient solution for incorporating a 630 A switching and isolation point into compatible low-voltage distribution equipment.
The populated module simplifies distribution-board construction by combining the switching device, mounting arrangement and protective cover within a defined CombiLine format. Its 2-panel-width construction, 72 space units and WR mounting-frame compatibility make it particularly suitable for high-current distribution systems where dependable switching, isolation and efficient cabinet integration are required.
Typical Applications
- Low-voltage electrical distribution boards.
- Commercial and industrial sub-distribution systems.
- ABB CombiLine cabinet assemblies.
- Main and sub-main circuit switching and isolation.
- Three-phase electrical distribution systems.
- Industrial power distribution and machinery supplies.
- Electrical switchgear requiring a 630 A 3-pole switch-disconnector.
