Why Choose the ABB MA800ALAB OT800E03P Switch Expansion 2PW?
The ABB MA800ALAB is a factory-equipped CombiLine switch-disconnector expansion module designed for high-current isolation and switching within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041375R9999, the module incorporates one ABB OT800E03P switch-disconnector with a maximum rated operational current of 800 A.
The MA800ALAB is configured for 2 panel widths (2 PW), with a field width of 500 mm and a module height of 600 mm. Its 4 RE format provides 96 space units, creating a coordinated high-current switching field for commercial and industrial low-voltage distribution assemblies.

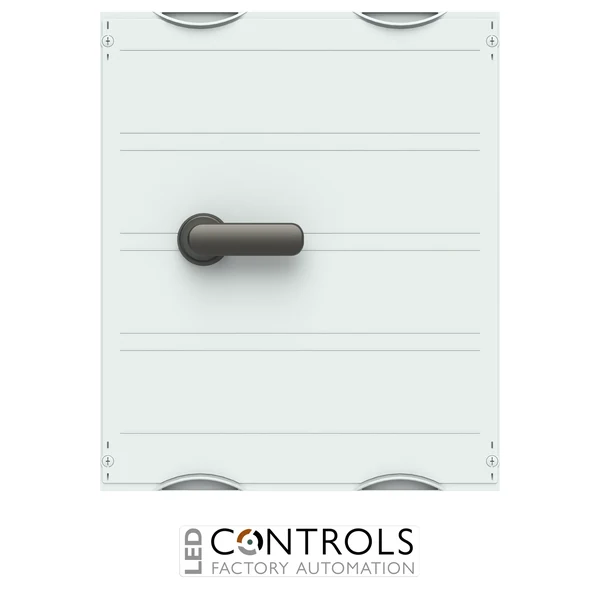

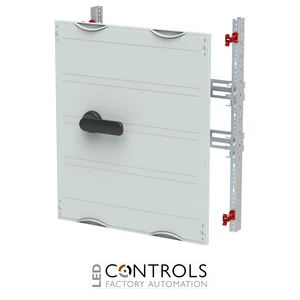

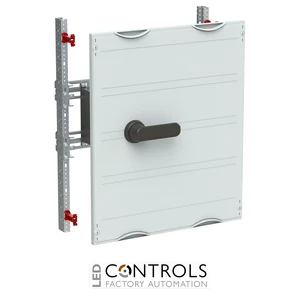

The fitted OT800E03P is a 3-pole ABB OT switch-disconnector, providing dependable load switching and circuit isolation. The device is mounted on a cross member and protected by plastic covers with an equipment cut-out, RAL 7035 finish and 90-degree press-and-turn closures. The module is suitable for compatible cabinets from 325 mm depth and requires a separately ordered WR mounting frame.
Key Advantages
- Factory-equipped with an ABB OT800E03P switch-disconnector.
- High-current switching and isolation capability up to 800 A.
- 3-pole switching configuration for three-phase distribution systems.
- 2 PW format provides a 500 mm-wide equipment field.
- 96 space units within a coordinated 4 RE module.
- Switch-disconnector mounted on a dedicated mounting cross member.
- Factory-installed module reduces panel-building assembly requirements.
- Designed for coordinated integration into ABB CombiLine distribution systems.
Key Features
- ABB CombiLine internal mounting system.
- 2 panel widths (2 PW).
- 4 raster units (4 RE).
- 600 mm module height.
- 500 mm field width.
- 96 space units.
- Factory-equipped with 1 ABB OT800E03P.
- 3-pole switch-disconnector.
- 800 A maximum rated operational current.
- Equipment mounted on a mounting cross member.
- Plastic protective covers with equipment cut-out.
- RAL 7035 cover finish.
- 90-degree press-and-turn cover closures.
- Suitable for cabinets from 325 mm depth.
- Designed for use with a separately ordered WR mounting frame.
Reliable High-Current Switching and Isolation
Switch-disconnectors provide controlled load switching together with a defined means of isolating electrical circuits for operational and maintenance requirements. The ABB MA800ALAB combines the CombiLine modular distribution platform with the ABB OT800E03P, providing a coordinated 800 A, 3-pole switching solution for substantial low-voltage distribution circuits.
The factory-equipped arrangement reduces the work required to incorporate a high-current switch-disconnector into a distribution cabinet. Its 2 PW field, dedicated mounting cross member and protective cover system provide an organised installation, while the OT-series device makes the module suitable for main distribution, feeder isolation and other demanding commercial or industrial switching duties.
Typical Applications
- Main low-voltage distribution boards.
- ABB CombiLine distribution assemblies.
- High-current feeder switching and isolation.
- Commercial building electrical distribution.
- Industrial low-voltage switchgear.
- Main switch and distribution cabinet applications.
- Three-phase circuits requiring an 800 A, 3-pole switch-disconnector.
