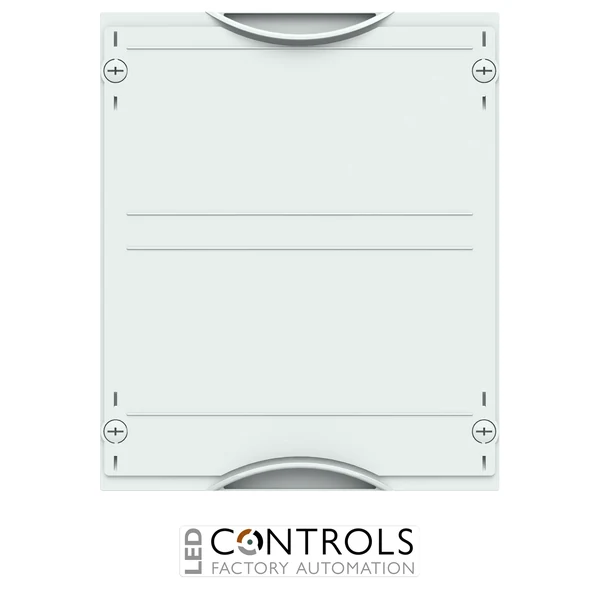

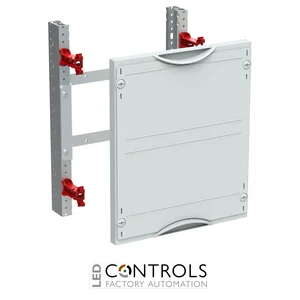

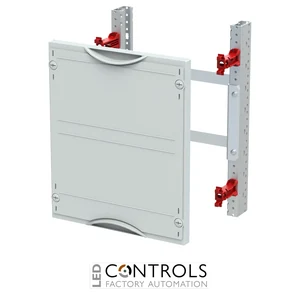

2CPX041377R9999 ABB MA250ALA OT200/630 Switch Expansion 1PW

2CPX041377R9999 ABB MA250ALA OT200/630 Switch Expansion 1PW

ABB MA250ALA is a CombiLine N OT200/630 switch-disconnector expansion module in a 1PW configuration, designed for compatible 3-pole or 4-pole ABB OT devices with a maximum rated current of 250 A.

SKU: 2CPX041377R9999Alt SKU: MA250ALAMPN: 2CPX041377R9999
Price
List Price £88.54 ex VAT
Your Price (ex VAT)
£88.54
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £88.54
Trade pricing is personalised to your account

Manufacturer Lead Time

£88.54

Why Choose the ABB MA250ALA OT200/630 Switch Expansion 1PW?

The ABB MA250ALA is a CombiLine N switch-disconnector expansion module designed for ABB OT load-break switches in low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041377R9999, it provides an unpopulated modular installation position for compatible OT switching equipment.

As part of the ABB DESUJ Sub Distribution product group, the MA250ALA is designed for professional panel building and structured electrical distribution. It is suitable for ABB OT200E...P to OT630E...P switch-disconnectors in 3-pole or 4-pole configurations, with the device mounted on a dedicated mounting cross beam.

The MA250ALA has a 1PW / 250 mm field width, a height of 300 mm and provides 24 PLE. It is rated for a maximum current of 250 A, can be used from a cabinet depth of 200 mm, and supports both EDF and WR mounting-frame systems.

Key Advantages

  • Purpose-designed OT200/630 switch expansion for ABB sub-distribution assemblies.
  • 1PW / 250 mm field width for compact modular integration.
  • Suitable for compatible ABB OT200E...P to OT630E...P switch-disconnectors.
  • Supports 3-pole and 4-pole switching configurations.
  • 250 A maximum rated current.
  • Compatible with EDF and WR mounting frames for flexible panel construction.

Key Features

  • ABB CombiLine N interior expansion module.
  • OT200/630 Switch Expansion 1PW configuration.
  • Unpopulated for installation of an ABB OT switch-disconnector.
  • 2 RE / 300 mm module height.
  • 1 field / 250 mm module width.
  • 24 PLE installation capacity.
  • Closed plastic covers without device cut-out.
  • Switch-disconnector mounting on a dedicated mounting cross beam.

Modular OT Switch-Disconnector Integration

The ABB MA250ALA provides a structured installation platform for OT switch-disconnectors within CombiLine N distribution assemblies. Switch-disconnectors provide reliable manual switching and isolation of electrical circuits, making them important components in commercial and industrial low-voltage distribution systems.

Its modular 1PW format, compatibility with EDF and WR mounting systems and accommodation for 3-pole or 4-pole OT devices make the MA250ALA suitable for building maintainable and expandable ABB distribution panels.

Typical Applications

  • ABB CombiLine N low-voltage distribution boards.
  • OT switch-disconnector installations.
  • Commercial and industrial sub-distribution systems.
  • Main and sectional isolation within electrical panels.
  • Modular switchboards and distribution cabinets.
  • Professional panel-building and switchgear applications.

Technical Specifications

Tick the specs you need, then view products that match.

Current 250 A
Product Series S&J CombiLine N
Device Type Mounting / Expansion Module
Series CombiLine N
ABB order code 2CPX041377R9999
Product group DESUJ Sub Distribution
Product type Switch-disconnector expansion module
Configuration 1PW
Compatible switch family ABB OT200E...P–OT630E...P
Supported poles 3-pole / 4-pole
Maximum rated current 250 A
Height 2 RE / 300 mm
Field width 1 / 250 mm
Installation capacity 24 PLE
Minimum cabinet depth 200 mm
Mounting Mounting cross beam
Mounting-frame compatibility EDF / WR
Cover Closed plastic cover without cut-out
Configuration supplied Unpopulated

Frequently Asked Questions

What is the ABB MA250ALA used for?

The ABB MA250ALA is an unpopulated switch-disconnector expansion module designed to integrate compatible ABB OT devices into CombiLine N low-voltage distribution assemblies.

Which switches are compatible with the MA250ALA?

The module is designed for compatible ABB OT200E...P to OT630E...P switch-disconnectors in 3-pole or 4-pole configurations.

What is the maximum rated current of the ABB MA250ALA?

The MA250ALA has a maximum rated current of 250 A.

What size is the ABB MA250ALA?

The module has a height of 300 mm, a field width of 250 mm and provides 24 PLE.

What is the ABB order code for the MA250ALA?

The ABB order code for the MA250ALA is 2CPX041377R9999.

Trusted ABB Sub-Distribution Engineering

ABB CombiLine N components provide panel builders with a modular platform for integrating switching, isolation and protection equipment into organised, dependable and serviceable low-voltage distribution assemblies.
