Why Choose the ABB MA800A Universal Switch Expansion Module?

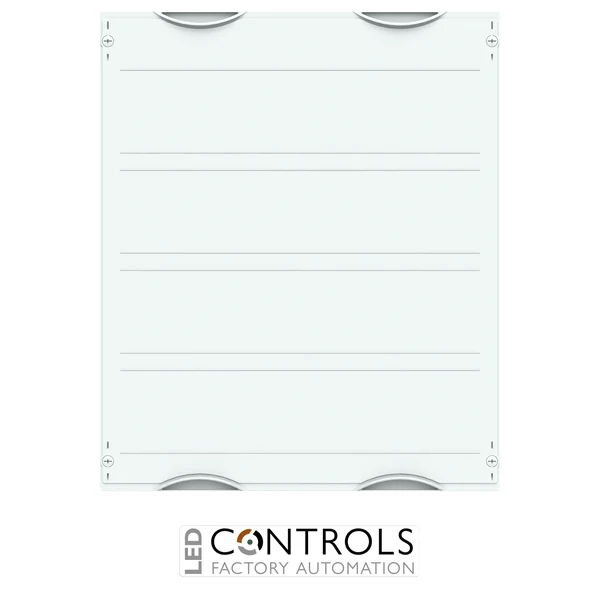

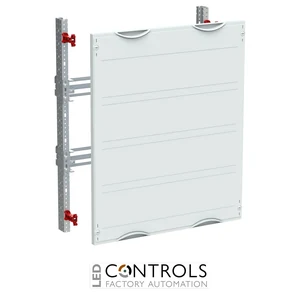

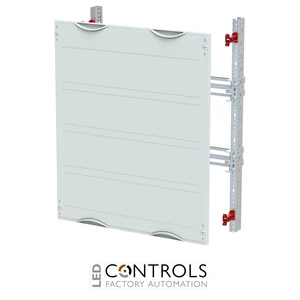

The ABB MA800A, order code 2CPX041389R9999, is an unequipped universal switch expansion module designed for ABB CombiLine electrical distribution systems. Part of ABB’s DESUJ Sub Distribution product group, it provides a flexible mounting solution for integrating a universal switching device into commercial and industrial distribution cabinets.
The MA800A is supplied unequipped for the installation of one universal switch, allowing the switching device to be selected according to the requirements of the application. Deep cross beams provide variable adjustment, while equipment is secured using cage nuts, giving panel builders flexibility when configuring compatible switching or circuit-breaking equipment.
With a module height of 4 GU / 600 mm, a panel width of 2 PW / 500 mm and 96 space units, the MA800A provides a usable equipment width of 420 mm and usable depth of 147 mm. It is designed for currents up to 800 A, requires a cabinet depth of at least 275 mm and is intended for installation on an ABB WR mounting frame.
Key Advantages
- Flexible universal switch expansion module for ABB CombiLine systems.
- Unequipped design allows installation of one suitable universal switch.
- Designed for applications with rated currents up to 800 A.
- 420 mm usable width and 147 mm usable depth provide substantial equipment space.
- Deep cross beams allow variable adjustment for different equipment configurations.
- Equipment attachment using cage nuts supports flexible and secure installation.
Key Features
- ABB MA800A CombiLine universal switch expansion module.
- ABB order code 2CPX041389R9999.
- 4 GU / 600 mm module height.
- 2 PW / 500 mm panel width.
- 96 space units.
- 420 mm usable equipment width.
- 147 mm usable equipment depth.
- Unequipped for installation of one universal switch.
- 800 A maximum rated current.
- Deep cross beams for variable equipment adjustment.
- Equipment attachment using cage nuts.
- Closed plastic cover.
- 90-degree press-and-turn cover closure.
- RAL 7035 light grey finish.
- Suitable for cabinets from 275 mm depth.
- Designed for ABB WR mounting frames, ordered separately.
Flexible High-Current Switching and Distribution
Universal switch modules provide panel builders with a flexible platform for incorporating switching and circuit-breaking equipment into modular electrical distribution assemblies. The ABB MA800A is supplied unequipped, allowing a suitable device to be selected for the application while its adjustable cross beams and cage-nut mounting arrangement accommodate different equipment configurations.
The MA800A is particularly suited to higher-current distribution applications, supporting a maximum rated current of 800 A. Its 420 mm usable width, 147 mm usable depth and 500 mm overall panel width provide substantial installation space while maintaining compatibility with the modular ABB CombiLine system.
Typical Applications
- Commercial and industrial sub-distribution boards.
- ABB CombiLine electrical cabinet assemblies.
- Universal switch and switch-disconnector installations.
- Power circuit-breaker installations.
- High-current electrical power distribution systems.
- Industrial switchgear and control cabinets.
