Why Choose the ABB MU357 Measuring Device Expansion?
The ABB MU357 is a dedicated measuring device expansion module designed for ABB CombiLine N sub-distribution systems. Supplied under ABB order code 2CPX041391R9999, this 3-panel-width assembly provides a structured mounting solution for incorporating electrical measuring instruments into compatible distribution cabinets.

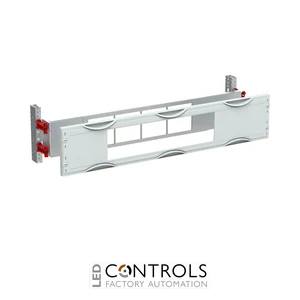

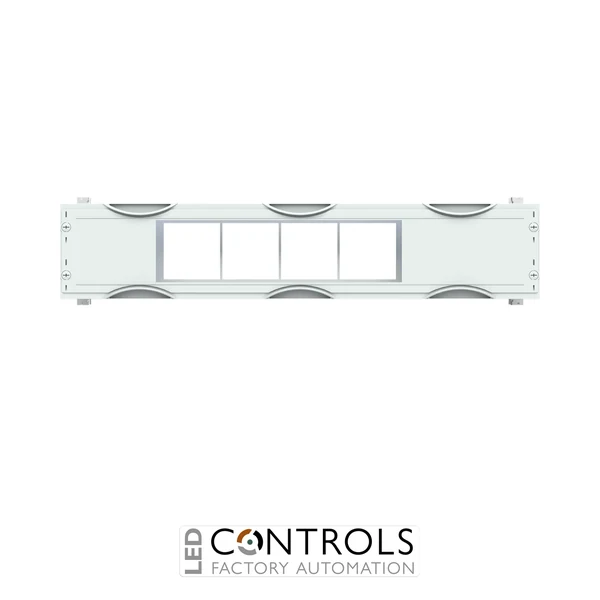

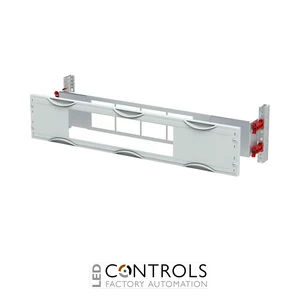

The MU357 is supplied unpopulated and prepared for the installation of up to four measuring devices with 96 × 96 mm installation dimensions. The measuring devices are arranged horizontally, while covers with prepared cut-outs provide an organised and professional front-facing installation within the distribution assembly.
With a height of 150 mm, width of 750 mm and 36 PLE capacity, the MU357 is designed for cabinets from 225 mm depth. It mounts on a mounting cross beam and can be used with compatible ABB EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Purpose-designed measuring device expansion for ABB CombiLine N systems.
- 3-panel-width configuration with a width of 750 mm.
- Prepared for up to four 96 × 96 mm measuring devices.
- Horizontal measuring-device arrangement for an organised panel layout.
- 36 PLE configuration for integration into modular distribution systems.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB MU357 measuring device expansion module.
- CombiLine N interior expansion system.
- 3 PW / 750 mm width.
- 1 RE / 150 mm height.
- Prepared for four measuring devices.
- Measuring-device installation size of 96 × 96 mm.
- 36 PLE installation capacity.
- Covers with cut-outs for measuring instruments.
- Mounting on a mounting cross beam.
- Suitable from a cabinet depth of 225 mm.
Structured Measurement Integration for Distribution Systems
Electrical measuring devices provide operators with important information about the condition and performance of low-voltage distribution systems. Dedicated measuring-device modules allow meters and monitoring instruments to be incorporated into switchboards in an organised format while maintaining accessibility and a consistent panel layout.
The ABB MU357 provides four horizontally arranged 96 × 96 mm instrument positions within a 3-panel-width CombiLine N module. Its prepared covers and mounting-cross-beam installation simplify the integration of compatible measuring devices into ABB sub-distribution cabinets while retaining the modular construction of the overall system.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution cabinets.
- Panel-mounted electrical measuring instruments.
- Energy and electrical parameter monitoring installations.
- ABB CombiLine N modular distribution systems.
- Industrial switchboard and electrical panel-building projects.
