Why Choose the ABB MV180 M20 Door Connection Expansion 1PW?

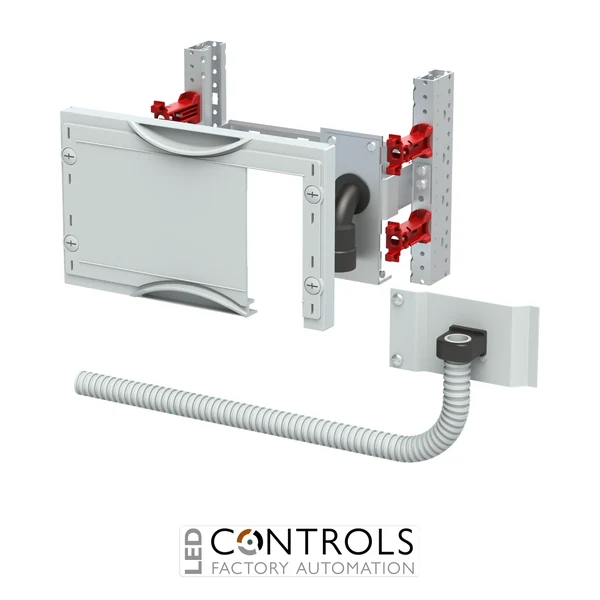

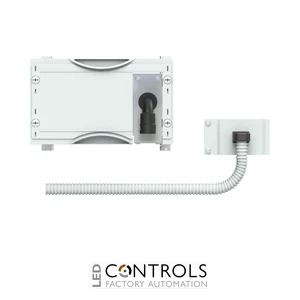

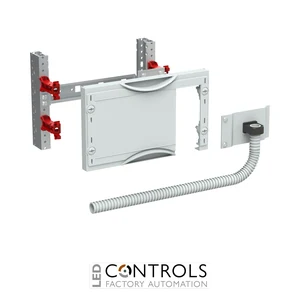

The ABB MV180 is a CombiLine door connection expansion module designed to provide an organised cable link between an interior module and the switch cabinet door. Supplied under ABB order code 2CPX041396R9999, the MV180 is a mounted cabinet version with a 1PW / single-field-width configuration.
The MV180 has a module height of 1 RE / 150 mm, a field width of 1 FB / 250 mm and provides 12 space units. It incorporates an M20 connection hose together with a DIN rail and the accessories required to secure the hose to both the module and the switch cabinet door.
Designed for cabinets from 225 mm depth, the MV180 features a plastic cover with a dedicated cable-connection cut-out, 90-degree press-and-turn fasteners and a RAL 7035 finish. It is compatible with EDF and WR mounting frames, which must be ordered separately, and the cabinet door stop must be considered during installation.
Key Advantages
- Provides a dedicated cable connection between the module and switch cabinet door.
- Includes an M20 connection hose for protected cable routing.
- Supplied with a DIN rail for organised internal installation.
- Includes accessories for securing the hose to both the module and cabinet door.
- Compact 1PW / 250 mm field width and 150 mm module height.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB CombiLine interior expansion system.
- Designed for cable connection to the switch cabinet door.
- M20 hose diameter.
- Connection hose included.
- DIN rail included.
- Accessories included for securing the hose to the module and cabinet door.
- 1 RE / 150 mm module height.
- 1 FB / 250 mm field width.
- 12 space units.
- Fixed mounting configuration.
- Plastic cover with cable-connection cut-out.
- 90-degree press-and-turn fasteners.
- RAL 7035 cover finish.
- Suitable for cabinets from 225 mm depth.
Structured Cabinet Door Cable Connection
The ABB MV180 provides a purpose-designed route for wiring between equipment inside a CombiLine assembly and devices installed on the switch cabinet door. Its M20 connection hose protects and organises the cable path as the door is operated, while the supplied securing accessories provide attachment points at both ends of the connection.
The integrated DIN rail provides additional mounting capability within the module, while the dedicated cover cut-out accommodates the cable connection. During cabinet design, the door stop must be considered to ensure suitable routing and movement of the connection hose, and the appropriate EDF or WR mounting frame must be selected separately.
Typical Applications
- Connections between cabinet interiors and door-mounted equipment.
- ABB CombiLine low-voltage distribution assemblies.
- Door-mounted control and indication equipment wiring.
- Switchboard door cable routing.
- Commercial and industrial distribution cabinets.
- Professional panel-building and electrical installation projects.
