Why Choose the ABB MV282 M40 Door Connection Expansion 2PW?
The ABB MV282 is a CombiLine door connection module designed to provide an organised cable link between an internal distribution-board module and equipment mounted on the switch cabinet door. Supplied under ABB order code 2CPX041400R9999, it is delivered mounted and installed in the cabinet with the components required for the module-to-door connection arrangement.
The MV282 is configured for 2 panel widths (2 PW), with a field width of 500 mm and a module height of 150 mm. Its 1 RE format provides 24 space units, creating a compact connection field for routing conductors between fixed internal equipment and door-mounted controls, indicators or switching devices.

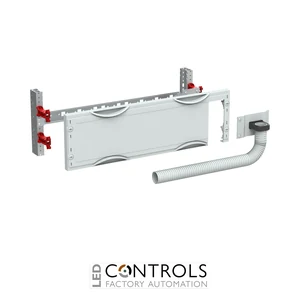

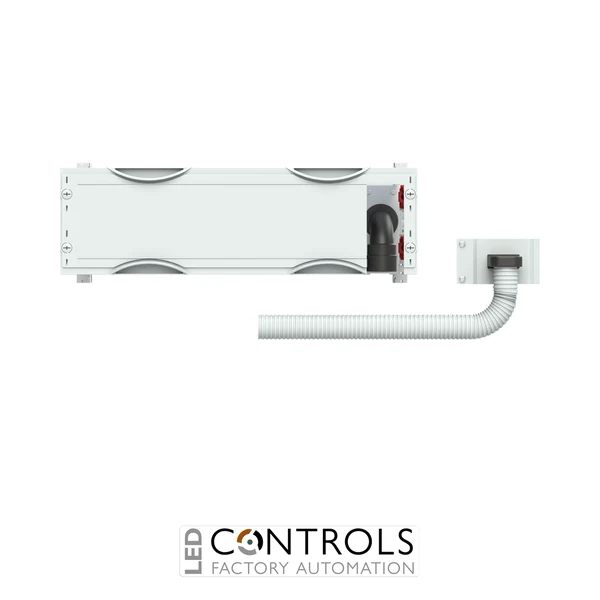

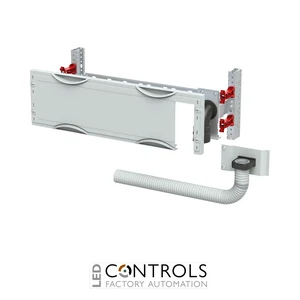

The module uses an M40 connection hose and includes a DIN rail together with accessories for securing the hose to the module and switch cabinet door. Plastic covers with a line-connection cut-out, a RAL 7035 finish and 90-degree press-and-turn closures complete the assembly. The MV282 is suitable for compatible cabinets from 225 mm depth and supports both EDF and WR mounting-frame arrangements.
Key Advantages
- Purpose-designed for the line connection between an internal module and switch cabinet door.
- Uses a larger M40 connection hose for organised conductor routing.
- Includes a DIN rail and connection hose for coordinated installation.
- Supplied with accessories for securing the hose to both the module and cabinet door.
- Compact 1 RE height uses cabinet space efficiently.
- 2 PW format provides a 500 mm-wide field with 24 space units.
- Compatible with both EDF and WR mounting-frame systems.
- Mounted and installed configuration simplifies integration into compatible ABB cabinets.
Key Features
- ABB CombiLine internal mounting system.
- 2 panel widths (2 PW).
- 1 raster unit (1 RE).
- 150 mm module height.
- 500 mm field width.
- 24 space units.
- M40 connection hose.
- Designed for line connection from the module to the switch cabinet door.
- DIN rail included.
- Connection hose included.
- Accessories included for securing the hose to the module and cabinet door.
- Fixed mounting arrangement.
- Plastic covers with line-connection cut-out.
- RAL 7035 cover finish.
- 90-degree press-and-turn cover closure.
Reliable Cable Routing to Cabinet-Door Equipment
Door-mounted controls, indicators and switching devices require a flexible electrical connection that accommodates normal cabinet-door movement while maintaining organised conductor routing. The ABB MV282 provides a coordinated CombiLine solution using an M40 connection hose to form the cable link between fixed internal equipment and devices mounted on the switch cabinet door.
The supplied DIN rail, connection hose and fixing accessories provide the principal components required for this transition within a compatible ABB cabinet. The cabinet door stop must be considered when positioning the connection, helping ensure that the hose is routed appropriately and can accommodate movement as the door is opened and closed.
Typical Applications
- ABB CombiLine low-voltage distribution assemblies.
- Connections to door-mounted switches and controls.
- Door-mounted indicator and signalling equipment.
- Commercial building distribution cabinets.
- Industrial low-voltage control and distribution panels.
- Flexible conductor routing between fixed cabinet modules and moving doors.
- Panel-building applications requiring an M40 door connection in a 2 PW field.
