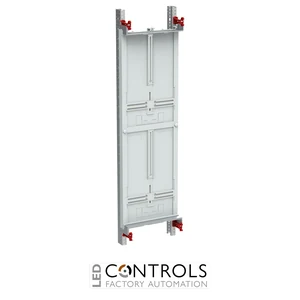

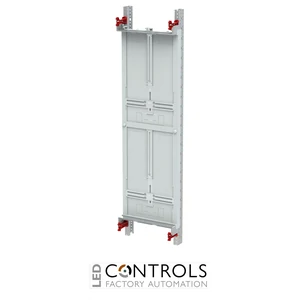

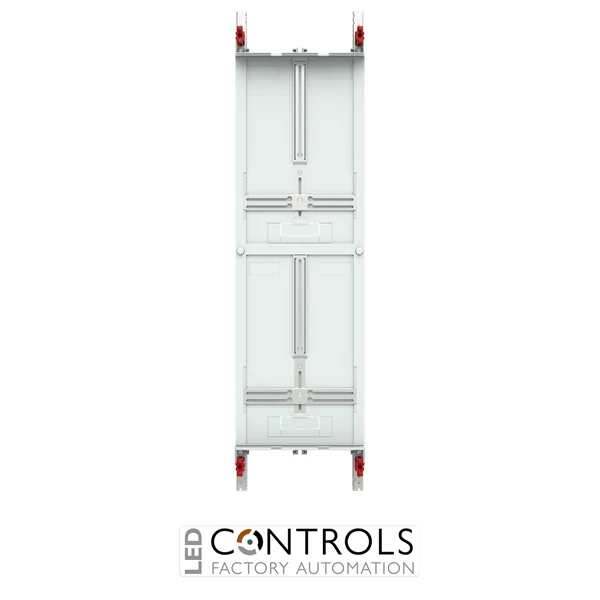

Why Choose the ABB MZ161 Meter Plate Expansion 1PW?
The ABB MZ161 is a meter plate expansion module designed for use in ABB low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041402R9999, it provides a dedicated modular mounting solution for integrating metering equipment into compatible electrical distribution systems.
As part of the ABB DESUJ Sub Distribution product group, the MZ161 is intended for professional panel building, switchgear construction and electrical distribution applications. Its purpose-built meter plate format helps provide an organised installation area for metering equipment while maintaining the modular construction of the distribution assembly.
The 1PW configuration identifies this MZ161 expansion variant, making it suitable where a single-width meter plate expansion arrangement is required within a compatible ABB sub-distribution system.
Key Advantages
- Purpose-designed meter plate expansion module for ABB sub-distribution equipment.
- 1PW configuration for modular panel construction.
- Provides a dedicated installation area for electrical metering equipment.
- Supports organised and serviceable low-voltage distribution-board layouts.
- Designed for professional switchboard and panel-building applications.
- ABB-engineered component for integration with compatible sub-distribution assemblies.
Key Features
- ABB MZ161 model.
- Meter plate expansion product type.
- 1PW configuration.
- Part of the ABB DESUJ Sub Distribution product group.
- Designed for modular low-voltage distribution assemblies.
- Provides dedicated mounting provision for metering equipment.
- ABB order code 2CPX041402R9999.
Modular Meter Integration for Distribution Systems
Meter plate modules provide a dedicated installation position for metering equipment within electrical distribution assemblies. The ABB MZ161 enables compatible sub-distribution systems to incorporate metering functionality while maintaining a structured and modular panel layout.
Its dedicated expansion format makes the MZ161 suitable for professional panel-building environments where organised equipment installation, accessibility and future serviceability are important requirements.
Typical Applications
- Low-voltage sub-distribution boards.
- Electrical metering installations.
- Commercial distribution panels.
- Industrial switchboards and distribution cabinets.
- Modular panel-building systems.
- Expansion of compatible ABB sub-distribution assemblies.
