Why Choose the ABB MA290T XT1/3 Expansion 2PW?

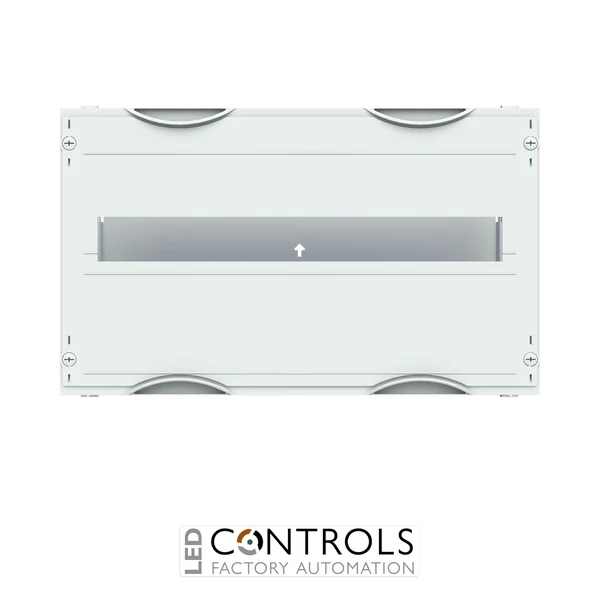

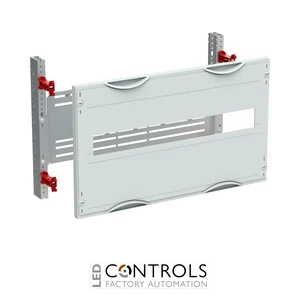

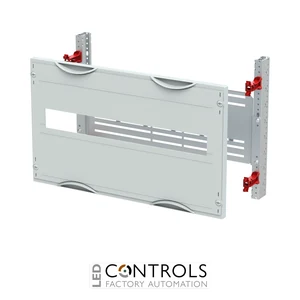

The ABB MA290T, order code 2CPX041417R9999, is a mounted CombiLine N Tmax circuit breaker expansion module designed for ABB electrical sub-distribution systems. Part of the DESUJ Sub Distribution product group, it provides a purpose-designed installation platform for fixed-mounted ABB Tmax XT1 and XT3 moulded-case circuit breakers within professional low-voltage distribution cabinets.
The MA290T has a 2 RE / 300 mm height and a two-panel-width / 500 mm width, providing 48 space units. It is supplied unequipped and can accommodate up to two ABB Tmax XT1 or XT3 circuit breakers, including three- and four-pole configurations, with a generous 449 mm useful width.
Designed for applications with a maximum rated current of 250 A, the MA290T includes a mounting cross beam with M4 slide nuts for secure circuit-breaker installation. Plastic covers with equipment cut-outs, 90-degree press-and-turn closures and a RAL 7035 light-grey finish complete the module, which can be installed on ABB EDF or WR mounting frames in cabinets from 215 mm depth.
Key Advantages
- Purpose-designed Tmax XT1/XT3 circuit breaker expansion module for ABB CombiLine N systems.
- Accommodates up to two ABB Tmax XT1 or XT3 circuit breakers.
- Suitable for 3-pole and 4-pole fixed-mounted circuit breakers.
- Maximum rated current of 250 A.
- Generous 449 mm useful equipment width.
- Two-panel-width, 500 mm design with 48 space units.
- Mounting cross beam with M4 slide nuts supports secure equipment installation.
- Compatible with both ABB EDF and WR mounting frames.
Key Features
- ABB CombiLine N interior expansion system.
- MA290T Tmax XT1/XT3 expansion module.
- 2 RE / 300 mm module height.
- 2 panel widths / 500 mm overall width.
- 48 space units.
- 449 mm useful equipment width.
- Unequipped for installation of up to two Tmax XT1 or XT3 circuit breakers.
- Supports fixed-mounted 3-pole and 4-pole devices.
- 250 A maximum rated current.
- Mounting cross beam with M4 slide nuts.
- Plastic covers with equipment cut-outs.
- Remaining unused cover openings can be closed using cover strips.
- 90-degree press-and-turn closures.
- Light-grey RAL 7035 finish.
- Suitable from a minimum cabinet depth of 215 mm.
- Compatible with EDF or WR mounting frames.
Structured Tmax XT1 and XT3 Circuit Breaker Integration
Moulded-case circuit breakers provide switching, isolation and overcurrent protection for higher-current distribution circuits. The ABB MA290T provides a coordinated mounting platform for fixed-mounted Tmax XT1 and XT3 devices, allowing up to two compatible circuit breakers to be integrated into a structured CombiLine N distribution assembly.
With a 449 mm useful width, 48 space units and a maximum rated current of 250 A, the MA290T is well suited to commercial and industrial distribution assemblies requiring dependable MCCB integration. Its mounting cross beam, M4 slide nuts and equipment cut-out provide a practical installation interface, while compatibility with EDF and WR mounting frames supports flexible cabinet construction.
Typical Applications
- Commercial and industrial sub-distribution boards.
- ABB Tmax XT1 and XT3 circuit breaker installations.
- Incoming and outgoing feeder protection.
- Electrical distribution cabinets and switchboards.
- Low-voltage circuit protection and isolation.
- Building-services power distribution systems.
- ABB CombiLine N cabinet expansion and interior fit-out.
