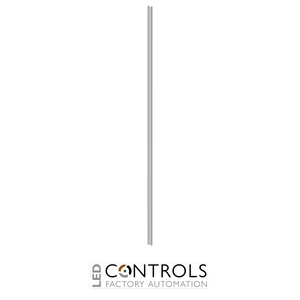

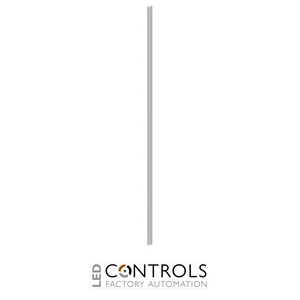

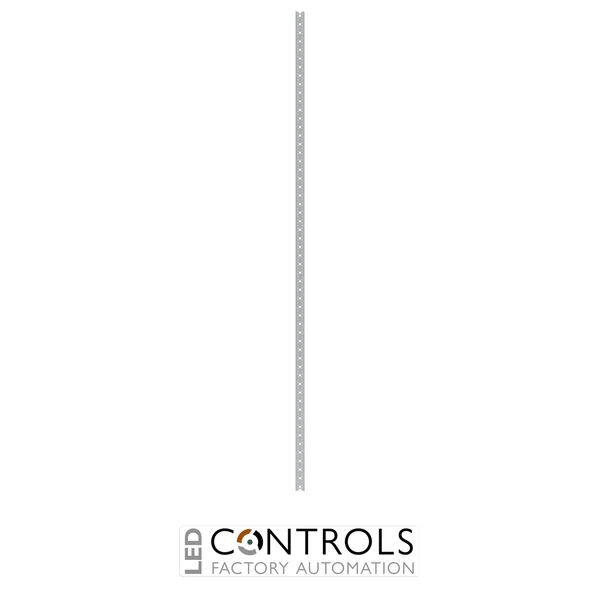

Why Choose the ABB ZWM214 WR Vertical Profile 14RE?
The ABB ZWM214, order code 2CPX041431R9999, is a vertical WR profile rail designed for ABB CombiLine electrical sub-distribution assemblies. Part of the DESUJ Sub Distribution product group, it is supplied mounted in the cabinet and provides a system-specific structural component for the ABB WR mounting frame.
The ZWM214 is designed for a 14 RE configuration, corresponding to a nominal profile length of 2100 mm. It is specifically intended for height compensation when transverse profile rails are used, helping panel builders establish the required internal mounting structure within compatible ABB distribution cabinets.
Manufactured from steel with a galvanised surface finish, the ZWM214 has nominal dimensions of 2100 × 20 × 40 mm (H × W × D). Its dedicated WR-system design makes it suitable for new cabinet construction, system expansion and replacement applications where an original ABB 14 RE vertical profile is required.
Key Advantages
- Original ABB vertical WR profile rail for professional sub-distribution assemblies.
- Designed specifically for a 14 RE / 2100 mm configuration.
- Provides height compensation when transverse profile rails are used.
- Purpose-designed for the ABB WR mounting frame.
- Robust steel construction with a galvanised surface finish.
- Supplied mounted in the cabinet for system-integrated installation.
- Suitable for cabinet construction, expansion, refurbishment and replacement applications.
- Part of the established ABB CombiLine installation system.
Key Features
- ABB CombiLine installation system.
- ZWM214 vertical WR profile rail.
- 14 RE nominal height.
- 2100 mm profile height.
- 20 mm nominal width.
- 40 mm nominal depth.
- Designed for height compensation with transverse profile rails.
- Compatible with the ABB WR mounting frame.
- Steel construction.
- Galvanised surface finish.
- Supplied mounted in the cabinet.
- Designed for vertical installation within compatible distribution assemblies.
Structured WR Mounting Frame Construction
Vertical profile rails form part of the mechanical framework used to configure compatible components inside modular electrical distribution cabinets. The ABB ZWM214 provides a dedicated 14 RE / 2100 mm vertical profile for the WR mounting system and is specifically designed to provide height compensation when transverse profile rails are incorporated into the cabinet structure.
Its galvanised steel construction and system-specific 2100 × 20 × 40 mm format provide a dependable structural solution for professional panel building. Using the specified ABB profile helps maintain compatibility and consistent positioning within the WR mounting architecture when constructing, extending or servicing CombiLine distribution assemblies.
Typical Applications
- ABB WR mounting-frame assemblies.
- 14 RE electrical distribution cabinets.
- Height compensation with transverse profile rails.
- Commercial and industrial sub-distribution boards.
- Modular switchboard interior construction.
- Distribution-board expansion and refurbishment.
- Replacement of compatible WR vertical profile rails.
