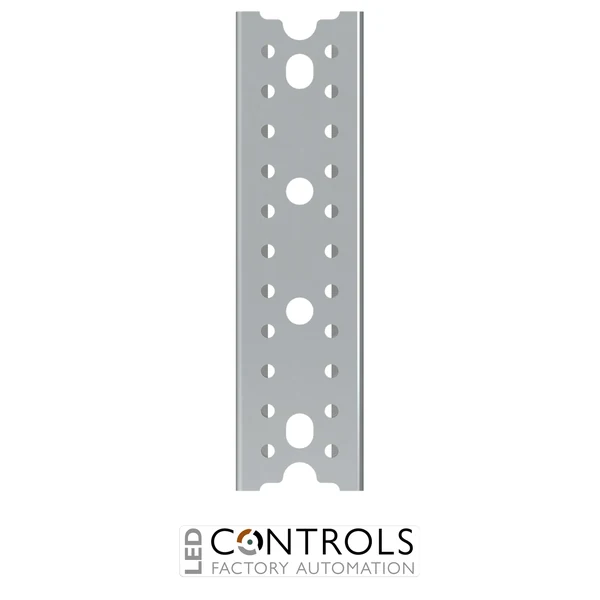

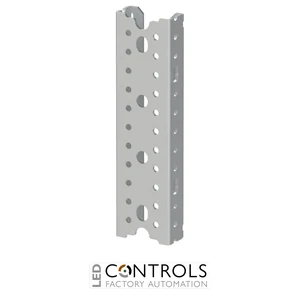

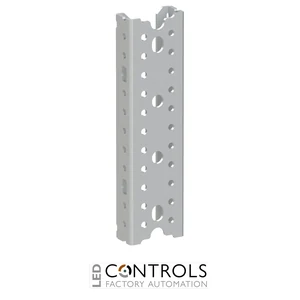

2CPX041432R9999 ABB ZWM367 WR Vertical Profile 1RE

2CPX041432R9999 ABB ZWM367 WR Vertical Profile 1RE

ABB ZWM367 is a 1 RE, 150 mm vertical WR profile rail for height compensation with transverse profile rails in compatible CombiLine N sub-distribution assemblies.

SKU: 2CPX041432R9999Alt SKU: ZWM367MPN: 2CPX041432R9999
Price
List Price £14.81 ex VAT
Your Price (ex VAT)
£14.81
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £14.81
Trade pricing is personalised to your account

Manufacturer Lead Time

£14.81

Why Choose the ABB ZWM367 WR Vertical Profile?

The ABB ZWM367 is a vertical WR profile rail designed for the ABB CombiLine N interior expansion system. Supplied under ABB order code 2CPX041432R9999, it is a 1 RE profile component intended for use with compatible WR mounting frames in low-voltage sub-distribution cabinets.

The ZWM367 provides height compensation when transverse profile rails are used, helping panel builders create the required mounting structure for modular distribution-board components. Its system-specific construction makes it suitable for extending and configuring ABB WR mounting-frame assemblies.

With a height of 1 RE / 150 mm, the ZWM367 provides a compact vertical profile solution for CombiLine N installations. This ZWM version is supplied mounted and installed in the cabinet, supporting efficient construction of compatible ABB sub-distribution assemblies.

Key Advantages

  • Purpose-designed vertical WR profile rail for ABB CombiLine N systems.
  • 1 RE / 150 mm height for compact mounting-frame configurations.
  • Provides height compensation when transverse profile rails are used.
  • Designed specifically for compatible WR mounting frames.
  • Supports structured and modular sub-distribution cabinet construction.
  • Supplied mounted and installed in the cabinet.

Key Features

  • ABB ZWM367 WR vertical profile rail.
  • Part of the CombiLine N interior expansion system.
  • 1 RE height unit.
  • 150 mm profile length.
  • Vertical installation orientation.
  • Designed for height compensation with transverse profile rails.
  • Suitable for the WR mounting-frame system.
  • Mounted and installed cabinet version.

Structured Mounting for Sub-Distribution Systems

Profile rails form part of the internal supporting structure used to position modular components within electrical distribution cabinets. Correctly configured vertical and transverse profiles provide the mechanical framework required to create organised mounting fields while maintaining consistent spacing throughout the assembly.

The ABB ZWM367 is specifically designed as a 1 RE vertical WR profile for height compensation when transverse profile rails are incorporated into a CombiLine N assembly. Its compatibility with the WR mounting-frame system makes it a dedicated structural component for professional ABB sub-distribution cabinet construction.

Typical Applications

  • ABB CombiLine N interior expansion systems.
  • WR mounting-frame assemblies.
  • Commercial and industrial sub-distribution cabinets.
  • Height compensation for transverse profile rails.
  • Low-voltage switchboard construction.
  • Electrical panel-building and system-integration projects.

Technical Specifications

Tick the specs you need, then view products that match.

Product Series S&J CombiLine N
Device Type Mounting / Expansion Module
Series CombiLine N
ABB order code 2CPX041432R9999
Product group DESUJ Sub Distribution
Product type Vertical WR profile rail
Height unit 1 RE
Profile length 150 mm
Orientation Vertical
Application Height compensation when using transverse profile rails
Compatible mounting system WR mounting frame
Delivery form Mounted and installed in cabinet
Packaging quantity 1 piece
Country of origin Germany
Gross weight 0.199 kg

Frequently Asked Questions

What is the ABB ZWM367 used for?

The ABB ZWM367 is a vertical WR profile rail used for height compensation when transverse profile rails are installed within compatible ABB CombiLine N mounting systems.

What is the height of the ABB ZWM367?

The ZWM367 is a 1 RE profile rail with a height of 150 mm.

Which mounting system is the ZWM367 designed for?

The ZWM367 is designed specifically for use with the ABB WR mounting-frame system within CombiLine N assemblies.

Is the ABB ZWM367 supplied installed?

Yes. The ZWM367 version is supplied mounted and installed in the cabinet.

Where is the ABB ZWM367 typically used?

It is typically used in ABB CombiLine N low-voltage sub-distribution cabinets where vertical profile height compensation is required in conjunction with transverse profile rails.

Trusted by Electrical Panel Builders Worldwide

ABB CombiLine N mounting components provide panel builders, electrical contractors and system integrators with a modular framework for creating organised and serviceable low-voltage sub-distribution assemblies.
