Why Choose the ABB ZWM369 Vertical WR Profile?

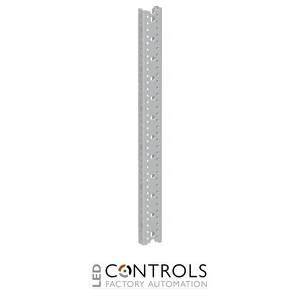

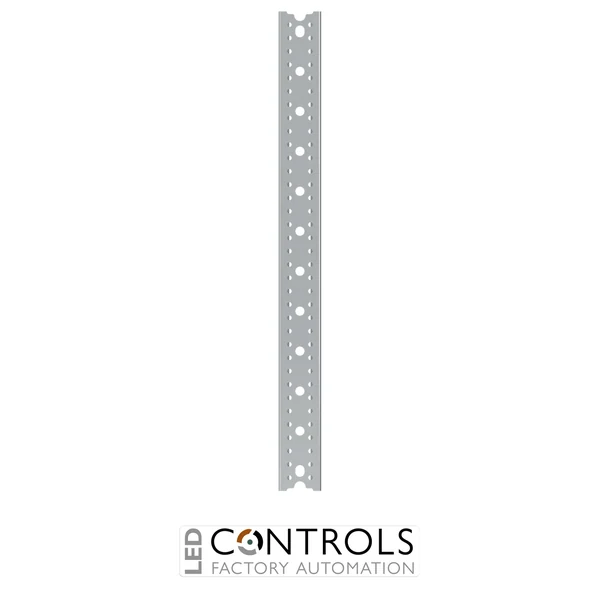

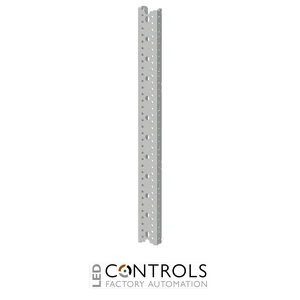

The ABB ZWM369 is a vertical WR profile rail designed for use within ABB CombiLine modular distribution and mounting systems. Supplied under ABB order code 2CPX041434R9999, the ZWM369 is a factory-assembled system component intended for installation in the cabinet as part of a compatible WR mounting frame.
Designed for a height of 3 RE / 450 mm, the ZWM369 provides vertical structural support and is specifically used to compensate for height when horizontal cross-profile rails are incorporated into the mounting arrangement. This allows panel builders to create accurately divided and mechanically organised internal mounting structures within compatible ABB distribution cabinets.
The ZWM369 is supplied assembled and installed in the cabinet, distinguishing it from the corresponding ZW369 kit version. Two vertical WR profile rails are used when dividing a compatible unit lengthwise, providing a coordinated mounting solution for modular electrical distribution assemblies.
Key Advantages
- Purpose-designed vertical WR profile rail for ABB CombiLine systems.
- Suitable for 3 RE / 450 mm mounting height.
- Supports structured division of compatible distribution cabinet interiors.
- Provides height compensation when using horizontal cross-profile rails.
- Compatible with the ABB WR mounting frame.
- Supplied assembled for integration into the cabinet.
- Part of ABB's coordinated modular distribution system for professional panel building.
Key Features
- ABB CombiLine system component.
- Vertical WR profile rail configuration.
- 3 RE height units.
- 450 mm system height.
- Designed for use with horizontal cross-profile rails.
- Suitable for compatible WR mounting structures.
- Supplied in assembled cabinet-installed form.
- Two vertical WR profiles are used when dividing a unit lengthwise.
- Designed for secure mechanical integration within modular distribution assemblies.
Reliable Structural Support for Modular Distribution Systems
Vertical profile rails provide the structural framework required to organise internal mounting areas in modular electrical distribution cabinets. The ABB ZWM369 works with compatible WR mounting-frame components and horizontal cross profiles to establish defined mounting sections while maintaining the required internal system dimensions.
With its 450 mm / 3 RE system height, the ZWM369 is specifically suited to three-unit-high mounting sections. Its assembled configuration simplifies integration into compatible ABB cabinet arrangements and provides panel builders with a coordinated system component for constructing organised low-voltage distribution assemblies.
Typical Applications
- ABB CombiLine modular distribution systems.
- WR mounting-frame assemblies.
- Low-voltage electrical distribution cabinets.
- Internal cabinet subdivision and mounting structures.
- Commercial and industrial distribution panels.
- Panel building and switchboard assembly.
