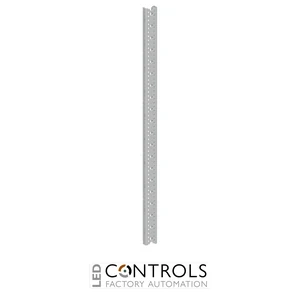

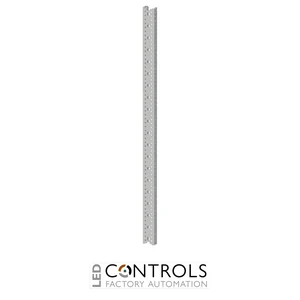

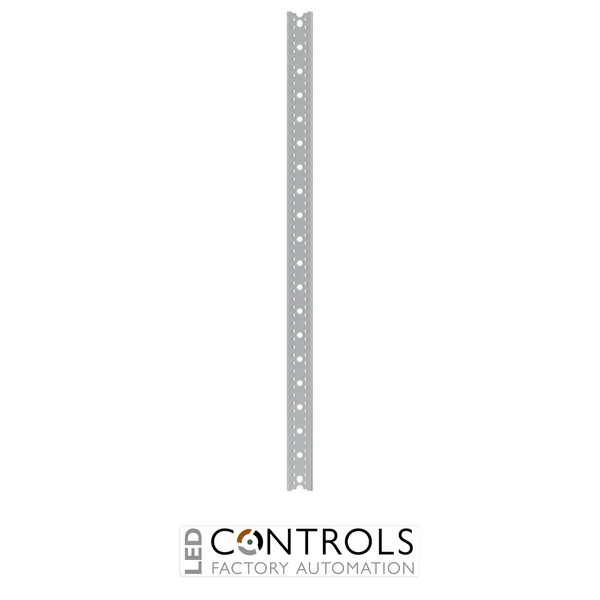

Why Choose the ABB ZWM371 WR Vertical Profile?
The ABB ZWM371, order code 2CPX041436R9999, is a vertical WR profile rail designed for ABB CombiLine electrical distribution systems. Part of ABB’s DESUJ Sub Distribution product group, it provides a structural mounting component for dividing and configuring compatible WR mounting frames within professional electrical distribution cabinets.
The ZWM371 is designed for 5 RE / 750 mm cabinet sections and is used for height compensation when horizontal cross-profile rails are installed. Two vertical WR profile rails are used when dividing a compatible unit lengthwise, providing the structural interfaces required for modular internal cabinet configurations.
Supplied assembled and installed in the cabinet, the ZWM371 has nominal dimensions of 750 mm high, 20 mm wide and 40 mm deep. Its galvanised steel construction provides a durable mounting structure specifically designed for integration with ABB WR mounting frames and CombiLine distribution assemblies.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- Suitable for 5 RE / 750 mm cabinet sections.
- Provides height compensation when using horizontal cross-profile rails.
- Supports lengthwise division of compatible electrical distribution units.
- Robust galvanised steel construction for professional cabinet assemblies.
- Supplied assembled for integration into ABB CombiLine cabinet systems.
Key Features
- ABB ZWM371 CombiLine vertical WR profile rail.
- ABB order code 2CPX041436R9999.
- Designed for ABB WR mounting frames.
- 5 RE / 750 mm nominal height.
- 20 mm nominal width.
- 40 mm nominal depth.
- Used for height compensation with horizontal cross-profile rails.
- Suitable for lengthwise division of compatible cabinet units.
- Two vertical profile rails are required when dividing a unit lengthwise.
- Galvanised surface finish.
- Steel construction.
- Supplied assembled and installed in the cabinet.
- Designed as a system component for ABB CombiLine assemblies.
Flexible WR Profile Construction for Modular Distribution Systems
Vertical profile rails form part of the structural framework used to organise modular equipment sections inside electrical distribution cabinets. The ABB ZWM371 provides a dedicated 750 mm vertical profile for the WR mounting system, enabling panel builders to establish the required mounting structure and compensate for height when horizontal cross-profile rails are incorporated into the assembly.
When a cabinet unit needs to be divided lengthwise, two vertical WR profile rails are used to form the required structural division. The ZWM371’s galvanised steel construction and compatibility with ABB’s modular CombiLine system make it suitable for creating stable, repeatable internal layouts in professional commercial and industrial distribution assemblies.
Typical Applications
- ABB CombiLine electrical distribution cabinets.
- WR mounting frame construction.
- Lengthwise division of distribution cabinet units.
- Height compensation with horizontal cross-profile rails.
- Commercial and industrial sub-distribution assemblies.
- Industrial switchgear and modular panel-building systems.
