Why Choose the ABB ZWM372 WR Vertical Profile?

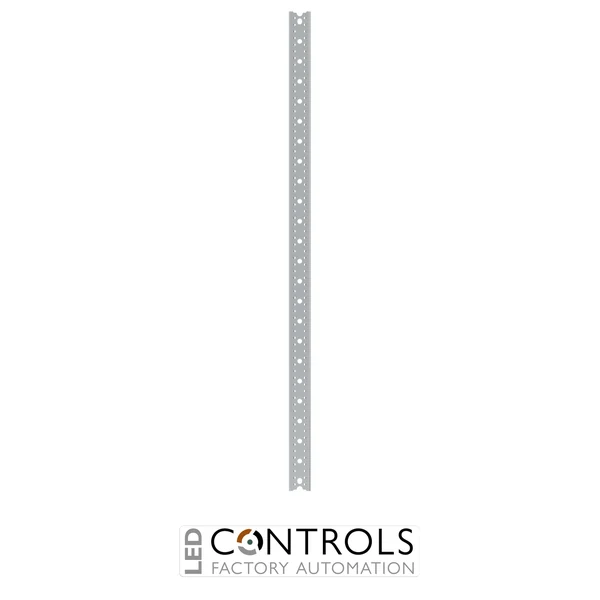

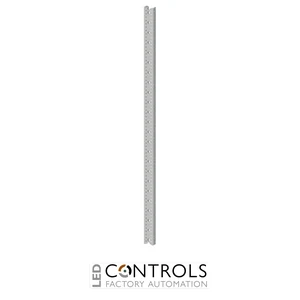

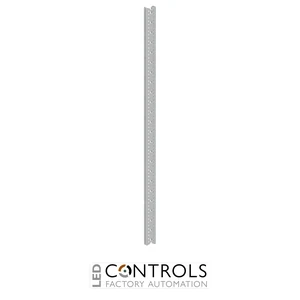

The ABB ZWM372, order code 2CPX041437R9999, is a vertical WR profile rail designed for ABB CombiLine electrical distribution systems. Part of ABB’s DESUJ Sub Distribution product group, it provides a structural mounting component for configuring and dividing compatible WR mounting frames within professional electrical distribution cabinets.
The ZWM372 is designed for 6 RE / 900 mm cabinet sections and provides height compensation when horizontal cross-profile rails are used within the assembly. Two vertical WR profile rails are required when a compatible unit is divided lengthwise, enabling structured and adaptable internal cabinet layouts.
Supplied assembled and installed in the cabinet, the ZWM372 is manufactured from galvanised steel and has a length of 900 mm with a profile height of 40 mm. It is specifically designed as a system component for ABB WR mounting frames and professional CombiLine distribution assemblies.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- Suitable for 6 RE / 900 mm cabinet sections.
- Provides height compensation when horizontal cross-profile rails are installed.
- Supports lengthwise division of compatible electrical distribution units.
- Robust galvanised steel construction for professional cabinet assemblies.
- Supplied assembled for straightforward integration into ABB CombiLine cabinet systems.
Key Features
- ABB ZWM372 CombiLine vertical WR profile rail.
- ABB order code 2CPX041437R9999.
- Designed for ABB WR mounting frames.
- 6 RE / 900 mm nominal height.
- 40 mm profile height.
- Used for height compensation with horizontal cross-profile rails.
- Suitable for lengthwise division of compatible cabinet units.
- Two vertical WR profile rails are required when dividing a unit lengthwise.
- Galvanised surface finish.
- Steel construction.
- Screw-fixed mounting arrangement.
- Supplied assembled and installed in the cabinet.
- Designed as a system component for ABB CombiLine assemblies.
Flexible WR Profile Construction for Modular Distribution Systems
Vertical profile rails form part of the structural framework used to organise modular equipment sections inside electrical distribution cabinets. The ABB ZWM372 provides a dedicated 900 mm vertical profile for the WR mounting system, enabling panel builders to establish the required mounting structure and compensate for height when horizontal cross-profile rails are incorporated into the assembly.
When a cabinet unit needs to be divided lengthwise, two vertical WR profile rails are used to establish the required structural division. The ZWM372’s galvanised steel construction and compatibility with ABB’s modular CombiLine system make it suitable for creating stable, repeatable and adaptable internal layouts in professional commercial and industrial distribution assemblies.
Typical Applications
- ABB CombiLine electrical distribution cabinets.
- WR mounting frame construction.
- Lengthwise division of distribution cabinet units.
- Height compensation with horizontal cross-profile rails.
- Commercial and industrial sub-distribution assemblies.
- Industrial switchgear and modular panel-building systems.
