Why Choose the ABB ZWM375 WR Vertical Profile 9RE?

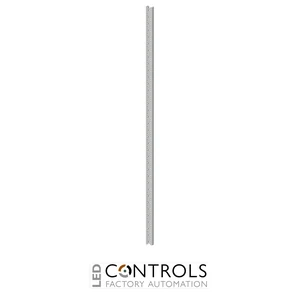

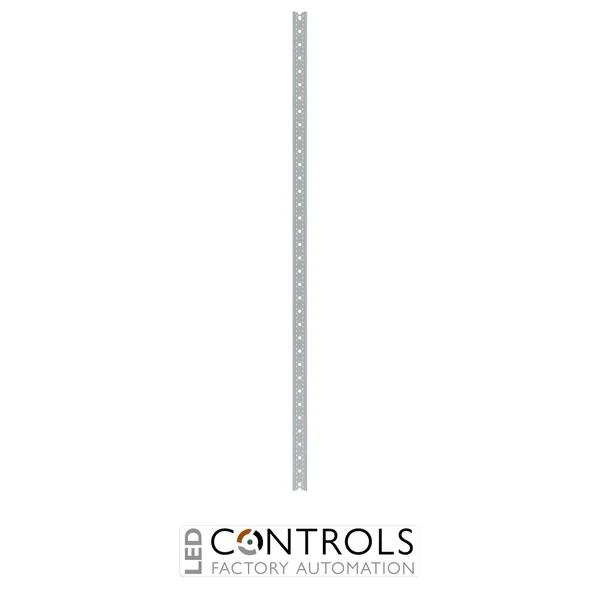

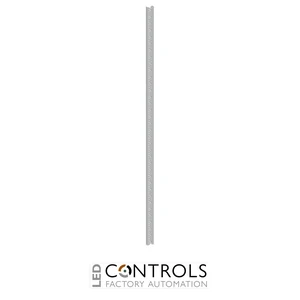

The ABB ZWM375, order code 2CPX041440R9999, is a vertical WR profile rail designed for the ABB CombiLine interior expansion system. It forms part of the WR mounting-frame structure used within compatible low-voltage distribution cabinets, providing a secure vertical mounting element for constructing and supporting modular interior assemblies.
Designed specifically for 9 grid units (RE), the ZWM375 has a profile length of 1350 mm. The vertical profile is used for height compensation when transverse profile rails are incorporated into the WR mounting-frame system, helping installers create the required supporting structure for CombiLine distribution modules and equipment.
The ZWM375 is supplied mounted and installed in the cabinet, distinguishing it from the corresponding ZW375 kit version. Manufactured from steel with a galvanised surface, it provides a durable structural component for compatible ABB WR mounting frames and professional low-voltage distribution assemblies.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- Suitable for installations requiring 9 grid units (RE).
- 1350 mm profile length for tall modular distribution assemblies.
- Supports height compensation when transverse profile rails are used.
- Supplied mounted and installed in the cabinet.
- Manufactured from steel for dependable mechanical support.
- Galvanised surface provides a durable finish.
- Designed as a system component for the ABB CombiLine WR mounting-frame system.
Key Features
- ABB ZWM375 vertical WR profile rail.
- ABB order code 2CPX041440R9999.
- Part of the ABB CombiLine interior expansion system.
- Designed for compatible WR mounting frames.
- 9 RE vertical mounting height.
- 1350 mm length.
- 40 mm profile height.
- Used for height compensation with transverse profile rails.
- Steel construction.
- Galvanised surface.
- Screw-fixed mounting.
- Supplied as 1 profile rail.
- Factory supply format is mounted and installed in the cabinet.
Structural Support for ABB WR Mounting Frames
WR mounting frames provide the supporting structure used to position modular CombiLine equipment inside compatible low-voltage distribution cabinets. Vertical profile rails such as the ABB ZWM375 form part of this structure and provide the required mounting height for transverse profile rails and associated interior modules.
With a length of 1350 mm corresponding to 9 RE, the ZWM375 is intended for taller WR mounting-frame configurations. Its steel construction, galvanised surface and screw-fixed installation provide a robust structural solution for cabinet assemblies where transverse profile rails require vertical support and accurate height positioning.
Typical Applications
- ABB CombiLine low-voltage distribution cabinets.
- WR mounting-frame construction.
- 9 RE interior mounting arrangements.
- Height compensation when using transverse profile rails.
- Commercial and industrial sub-distribution systems.
- Electrical switchgear and distribution cabinets.
- Modular interior support structures for ABB distribution equipment.
