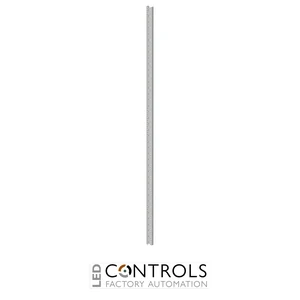

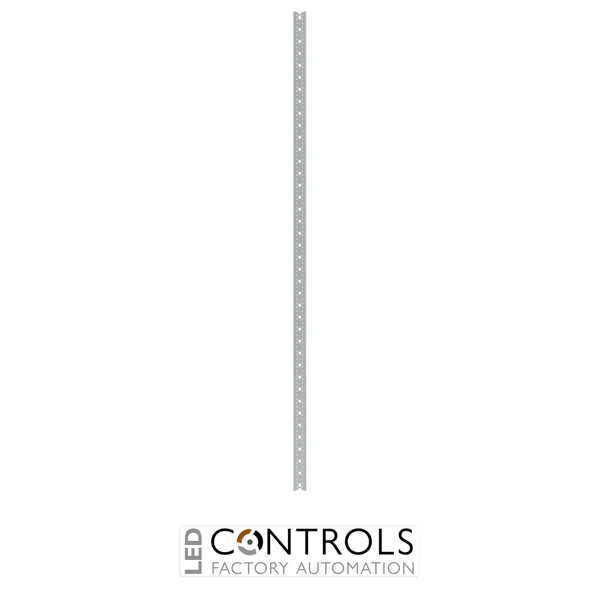

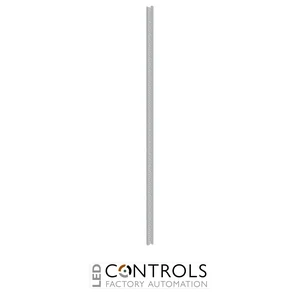

Why Choose the ABB ZWM376 WR Vertical Profile 10RE?
The ABB ZWM376, order code 2CPX041441R9999, is a vertical WR profile rail designed for the ABB CombiLine low-voltage distribution system. It forms part of the WR mounting-frame structure used inside compatible distribution cabinets, providing a dedicated vertical structural element for supporting modular interior assemblies.
Designed for 10 grid units (RE), the ZWM376 provides a vertical mounting height of 1500 mm. Its primary function is height compensation when transverse profile rails are used, enabling the supporting structure of a WR mounting frame to be configured for the required CombiLine module arrangement.
The ZWM376 is supplied mounted and installed in the cabinet and is manufactured from steel with a galvanised surface. With a nominal external width of 20 mm and depth of 40 mm, it provides a compact structural profile for professional ABB low-voltage distribution assemblies.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- Provides a mounting height of 10 RE / 1500 mm.
- Designed for height compensation when transverse profile rails are used.
- Supplied mounted and installed in the cabinet.
- Manufactured from steel for structural cabinet applications.
- Galvanised surface provides a durable protective finish.
- Compact 20 mm × 40 mm profile dimensions.
- Purpose-designed system component for the ABB CombiLine WR mounting-frame system.
Key Features
- ABB ZWM376 vertical WR profile rail.
- ABB order code 2CPX041441R9999.
- Part of the ABB CombiLine interior expansion system.
- Designed for compatible WR mounting frames.
- 10 RE vertical mounting height.
- 1500 mm nominal height.
- 20 mm nominal external width.
- 40 mm nominal external depth.
- Used for height compensation when transverse profile rails are installed.
- Steel construction.
- Galvanised surface finish.
- Supplied as 1 vertical profile rail.
- Factory supply format is mounted and installed in the cabinet.
Structural Support for ABB WR Mounting Frames
WR mounting frames provide the supporting structure used to position modular CombiLine equipment inside compatible low-voltage distribution cabinets. Vertical profile rails such as the ABB ZWM376 form part of this structure and provide the required mounting height when transverse profile rails are incorporated into the assembly.
With a nominal height of 1500 mm corresponding to 10 RE, the ZWM376 is intended for taller WR mounting-frame configurations. Its galvanised steel construction provides a durable structural component for cabinet assemblies requiring accurate vertical positioning and height compensation for transverse profile rails.
Typical Applications
- ABB CombiLine low-voltage distribution cabinets.
- WR mounting-frame construction.
- 10 RE interior mounting arrangements.
- Height compensation when using transverse profile rails.
- Commercial and industrial sub-distribution systems.
- Electrical switchgear and distribution cabinets.
- Modular interior support structures for ABB distribution equipment.
