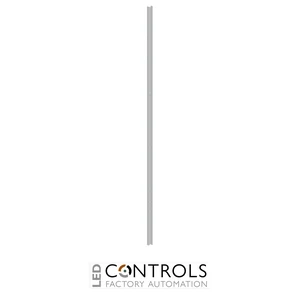

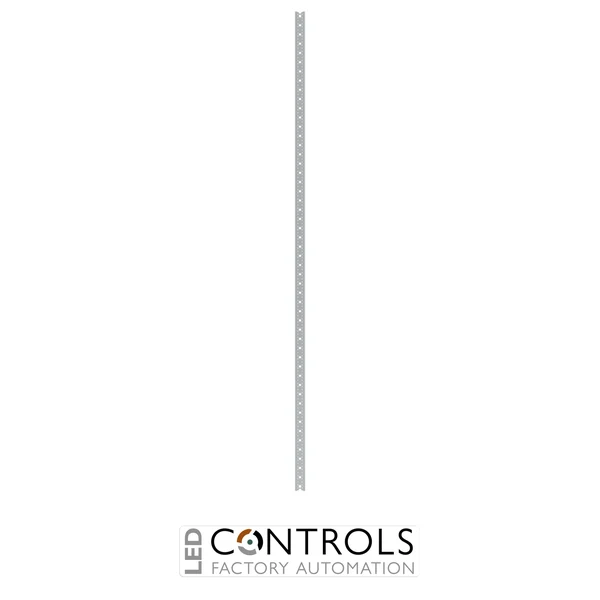

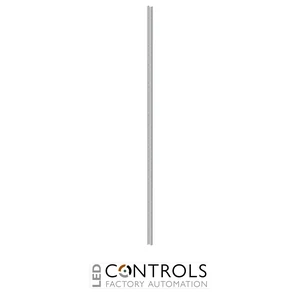

2CPX041443R9999 ABB ZWM378 WR Vertical Profile 13RE

2CPX041443R9999 ABB ZWM378 WR Vertical Profile 13RE

ABB ZWM378 is a 13 RE, 1950 mm vertical WR profile rail for the CombiLine N mounting system, supplied mounted in the cabinet for height compensation when using transverse profile rails.

SKU: 2CPX041443R9999Alt SKU: ZWM378MPN: 2CPX041443R9999
Price
List Price £49.81 ex VAT
Your Price (ex VAT)
£49.81
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £49.81
Trade pricing is personalised to your account

Manufacturer Lead Time

£49.81

Why Choose the ABB ZWM378 WR Vertical Profile 13RE?

The ABB ZWM378 is a vertical WR profile rail designed for the ABB CombiLine N interior expansion system and WR mounting frame. Supplied under ABB order code 2CPX041443R9999, it provides the vertical structural profile required for an 13 RE mounting arrangement in low-voltage sub-distribution cabinets.

Designed specifically for use with the WR mounting frame, the ZWM378 is used for height compensation when transverse profile rails are installed. This supports structured field division and enables panel builders to configure modular cabinet interiors using components engineered as part of the ABB sub-distribution system.

The ZWM378 corresponds to an installation height of 13 RE / 1950 mm and is supplied mounted and installed in the cabinet. Its system-specific construction makes it suitable for professional CombiLine N distribution assemblies requiring reliable alignment and support of the internal mounting framework.

Key Advantages

  • Purpose-designed vertical profile rail for ABB WR mounting frames.
  • Suitable for 13 RE / 1950 mm mounting arrangements.
  • Provides height compensation when using transverse profile rails.
  • Integrates with the ABB CombiLine N interior expansion system.
  • Supports structured field division and modular cabinet construction.
  • Supplied mounted and installed in the cabinet for convenient system integration.

Key Features

  • ABB ZWM378 vertical WR profile rail.
  • 13 RE installation height.
  • 1950 mm profile length.
  • Designed specifically for the WR mounting frame.
  • Used for height compensation with transverse profile rails.
  • System component for ABB CombiLine N modular distribution assemblies.
  • 40 mm support profile height.
  • Supplied as one profile rail.
  • Designed for modular low-voltage distribution cabinet construction.
  • Factory-supplied in the mounted and cabinet-installed configuration.

Reliable Structural Support for WR Mounting Frames

Vertical profile rails are important structural components within modular electrical cabinet mounting systems. In the ABB CombiLine N WR framework, the ZWM378 provides the vertical profile required to accommodate transverse profile rails and enables height compensation when configuring the internal mounting structure.

Its 13 RE / 1950 mm format makes the ZWM378 suitable for tall distribution sections requiring an organised and system-compatible mounting arrangement. Used together with appropriate WR transverse profiles and other CombiLine N components, it supports efficient construction of modular low-voltage distribution assemblies.

Typical Applications

  • ABB CombiLine N sub-distribution assemblies.
  • WR mounting-frame construction.
  • Low-voltage electrical distribution cabinets.
  • Height compensation for transverse profile rails.
  • Modular field division within switchboards.
  • Commercial and industrial panel building.

Technical Specifications

Tick the specs you need, then view products that match.

Product Series S&J CombiLine N
Device Type Mounting / Expansion Module
Series CombiLine N
ABB order code 2CPX041443R9999
Product type Vertical WR profile rail
Product group DESUJ Sub Distribution
Application WR mounting frame
Installation height 13 RE
Profile length 1950 mm
Support profile height 40 mm
Function Height compensation when using transverse profile rails
Supply format Mounted and installed in cabinet
Quantity 1 piece

Frequently Asked Questions

What is the ABB ZWM378 used for?

The ABB ZWM378 is a vertical WR profile rail used within CombiLine N mounting frames for height compensation when transverse profile rails are installed.

What is the ABB order code for the ZWM378?

The ABB order code for the ZWM378 vertical WR profile is 2CPX041443R9999.

What installation height does the ZWM378 support?

The ZWM378 is designed for a 13 RE mounting arrangement, corresponding to a profile length of 1950 mm.

Which mounting system is the ZWM378 designed for?

The ZWM378 is designed specifically for the ABB CombiLine N WR mounting frame used in modular sub-distribution assemblies.

What is the support profile height of the ABB ZWM378?

The ZWM378 has a 40 mm support profile height and a total profile length of 1950 mm.

Is the ZWM378 supplied as an uninstalled profile kit?

No. The ZWM378 is the version supplied mounted and installed in the cabinet; ABB identifies the corresponding uninstalled 13 RE vertical profile as the ZW378.
