Why Choose the ABB ZWM165 WR Horizontal Profile 2PW?

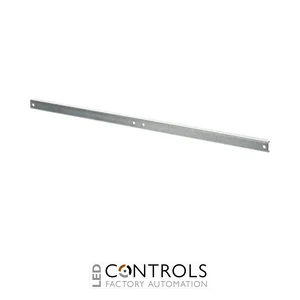

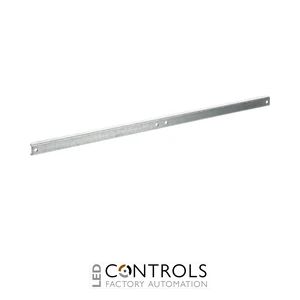

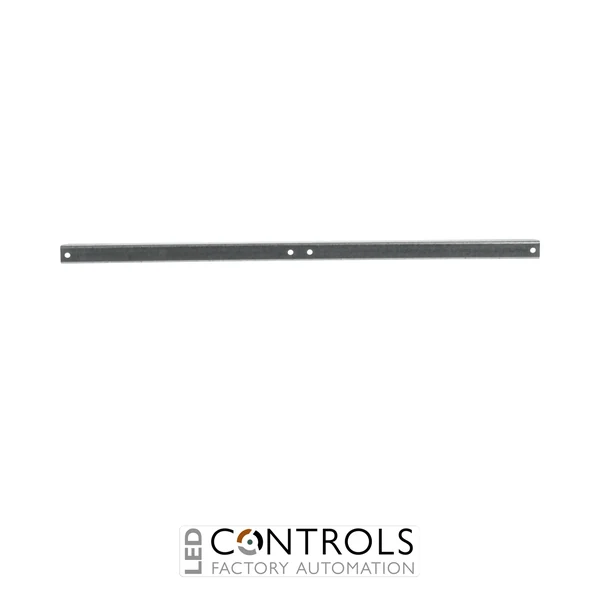

The ABB ZWM165, order code 2CPX041444R9999, is a horizontal transverse profile rail designed for ABB WR mounting-frame assemblies. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a system-specific structural component for horizontal field division within professional electrical distribution cabinets.
The ZWM165 is designed for a 2-panel-width (2PW) configuration and a corresponding field width of 500 mm. It is supplied mounted and installed in the cabinet and includes the required fastening screws, simplifying integration into compatible ABB WR mounting structures.
The horizontal profile is used for field division at the top and bottom and is particularly important when different field widths need to be connected within an assembly. Two transverse profiles are required when dividing a field at both the upper and lower positions, providing a structured mechanical interface for compatible ABB cabinet configurations.
Key Advantages
- Original ABB horizontal transverse profile rail for WR mounting-frame assemblies.
- Designed specifically for a 2PW / 500 mm field width.
- Supports horizontal field division at the top and bottom of the assembly.
- Enables the connection of different field widths within compatible cabinet layouts.
- Supplied mounted and installed in the cabinet.
- Fastening screws included for system-integrated installation.
- Designed for the ABB WR mounting frame.
- Part of the established ABB CombiLine installation system.
Key Features
- ABB CombiLine installation system.
- ZWM165 horizontal transverse profile rail.
- 2 panel widths / 500 mm field width.
- Designed for horizontal division of compatible cabinet fields.
- Suitable for connecting different field widths.
- Two profiles are required for complete top-and-bottom field division.
- Fastening screws included.
- Supplied mounted in the cabinet.
- Compatible with the ABB WR mounting frame.
- Steel construction.
- 19 mm profile height.
- Designed for professional electrical distribution-cabinet construction.
Structured WR Field Division and Cabinet Construction
Horizontal transverse profile rails form part of the mechanical framework used to divide and organise fields within modular electrical distribution cabinets. The ABB ZWM165 provides the dedicated horizontal profile for a 2PW / 500 mm field, allowing compatible WR mounting-frame sections to be divided at the upper and lower positions.
The profile is also required when different field widths need to be connected within a cabinet assembly. With its system-specific steel construction, included fastening screws and mounted supply format, the ZWM165 provides a practical structural solution for professional panel building, cabinet expansion and CombiLine distribution-system configuration.
Typical Applications
- ABB WR mounting-frame assemblies.
- 2PW / 500 mm cabinet field construction.
- Horizontal field division at the top and bottom.
- Connection of different cabinet field widths.
- Commercial and industrial sub-distribution boards.
- Modular switchboard interior construction.
- Distribution-board expansion, refurbishment and replacement.
