Why Choose the ABB ZWM166 WR Horizontal Profile 3PW?

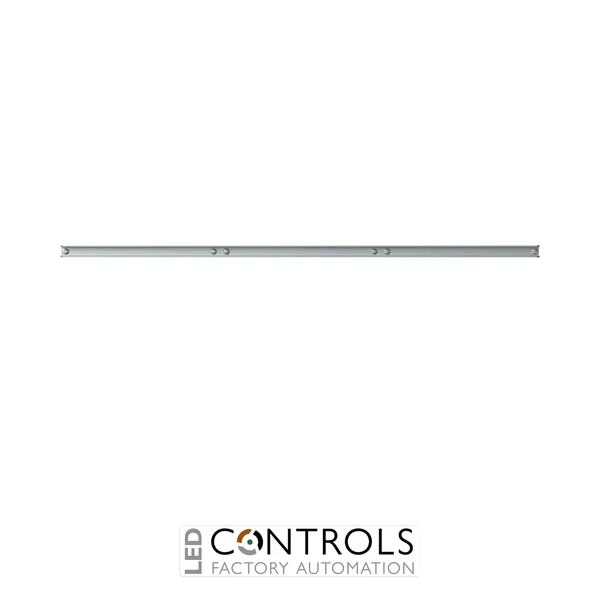

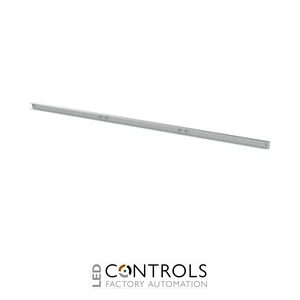

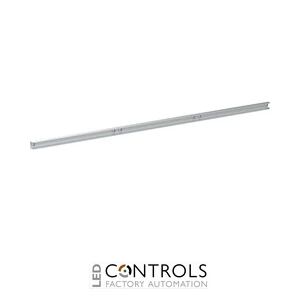

The ABB ZWM166, order code 2CPX041445R9999, is a horizontal WR cross-profile rail designed for dividing fields within ABB electrical distribution and enclosure systems. Part of ABB’s CombiLine system and associated with the DESUJ Sub Distribution product group, it provides a robust structural solution for configuring WR mounting frameworks.
The ZWM166 is supplied assembled and installed for a field width of 3 (3PW). It is intended for horizontal field division at the top and bottom of the assembly and is particularly useful where different field widths need to be connected within a compatible cabinet configuration. Fastening screws are included to support straightforward installation.
With a nominal field width of 3PW and a profile length of approximately 750 mm, the ZWM166 is designed specifically for use with the ABB WR mounting framework. Its steel construction and system-specific design provide dependable mechanical support in professional low-voltage distribution assemblies.
Key Advantages
- Purpose-designed horizontal WR cross-profile rail for electrical distribution assemblies.
- 3PW field width for compatible ABB cabinet configurations.
- Approximately 750 mm profile length.
- Supplied assembled and installed for convenient system integration.
- Includes fastening screws for secure installation.
- Suitable for connecting and dividing different field widths within compatible WR mounting frameworks.
Key Features
- ABB ZWM166 horizontal WR profile.
- ABB order code 2CPX041445R9999.
- 3PW / field width 3 configuration.
- 750 mm nominal field width/profile length.
- Designed for horizontal division of enclosure fields.
- Compatible with the WR mounting framework.
- Steel construction with a galvanised surface.
- Fastening screws included.
Reliable Field Division for ABB Distribution Systems
Horizontal cross-profile rails provide structural division within modular electrical cabinets, allowing individual fields and functional areas to be arranged securely. The ABB ZWM166 is designed to divide the enclosure field horizontally and forms part of the supporting structure used with compatible WR mounting frameworks.
The ZWM166 can be used where different field widths need to be connected and supports field division at the upper and lower sections of the assembly. Its system-specific construction makes it suitable for professional switchboard, distribution and control cabinet configurations using compatible ABB components.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB WR mounting framework assemblies.
- Sub-distribution systems.
- Modular switchboard construction.
- Horizontal division of enclosure fields.
- Connecting sections with different field widths.
