Why Choose the ABB WRM38 WR Mounting Frame?

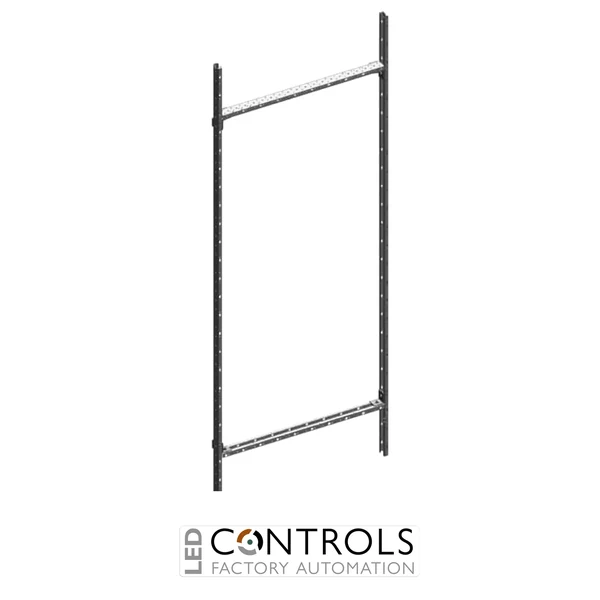

The ABB WRM38 is a robust WR mounting frame designed for structured equipment installation within ABB CombiLine N low-voltage distribution systems. Supplied under ABB order code 2CPX041449R9999, the WRM38 provides a 3 PW field width and is supplied assembled for installation within compatible floor-standing and bayed switchgear cabinets.
The mounting frame combines vertical WR profile rails with horizontal cross-profile rails to create a stable internal support structure for compatible electrical distribution equipment. Its systematic construction enables panel builders to organise components securely while maintaining the modular dimensions and mounting arrangement required by the ABB CombiLine N system.
Designed to BH8 / 12 RE format, the WRM38 has an overall length of 1800 mm and uses steel profiles with a galvanised surface. It is suitable for compatible floor-standing and bayed switchgear cabinets from 260 mm depth, providing a dependable mechanical platform for professional low-voltage distribution assemblies.
Key Advantages
- Purpose-designed WR mounting frame for ABB CombiLine N systems.
- 3 PW field width provides a broad mounting area for modular equipment.
- BH8 / 12 RE configuration with an overall length of 1800 mm.
- Combines vertical WR profile rails with horizontal cross-profile rails.
- Robust steel construction with galvanised surface.
- Suitable for compatible floor-standing and bayed cabinets from 260 mm depth.
- Supplied assembled in the cabinet for coordinated panel construction.
Key Features
- ABB CombiLine N system component.
- WR mounting-frame construction.
- 3 PW field width.
- BH8 construction height.
- 12 RE height units.
- 1800 mm overall length.
- 40 mm support-rail profile height.
- Manufactured from steel.
- Galvanised surface finish.
- Screw-fixed mounting arrangement.
- Designed for compatible cabinets with a minimum depth of 260 mm.
- Supplied assembled within the cabinet.
Reliable Mounting Support for Distribution Cabinets
Mounting frames provide the structural foundation required to position and secure electrical equipment within modular distribution cabinets. The ABB WRM38 combines vertical and horizontal WR profile components into a coordinated frame, providing a stable mounting structure for compatible CombiLine N equipment and supporting organised panel construction.
The 3 PW field width and BH8 / 12 RE format make the WRM38 suitable for large equipment areas within compatible ABB floor-standing and bayed cabinets. Its steel construction, galvanised finish and screw-fixed mounting arrangement provide a durable mechanical platform for professional low-voltage switchboard and distribution applications.
Typical Applications
- ABB CombiLine N modular distribution systems.
- Floor-standing electrical distribution cabinets.
- Bayed switchgear cabinet assemblies.
- Low-voltage switchboard construction.
- Internal mounting structures for electrical distribution equipment.
- Commercial and industrial power distribution panels.
