Why Choose the ABB EDM7 EDF Vertical Profile 1RE?

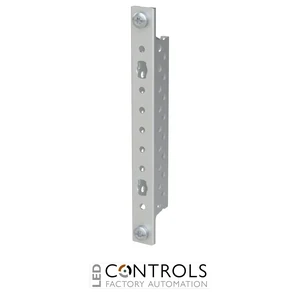

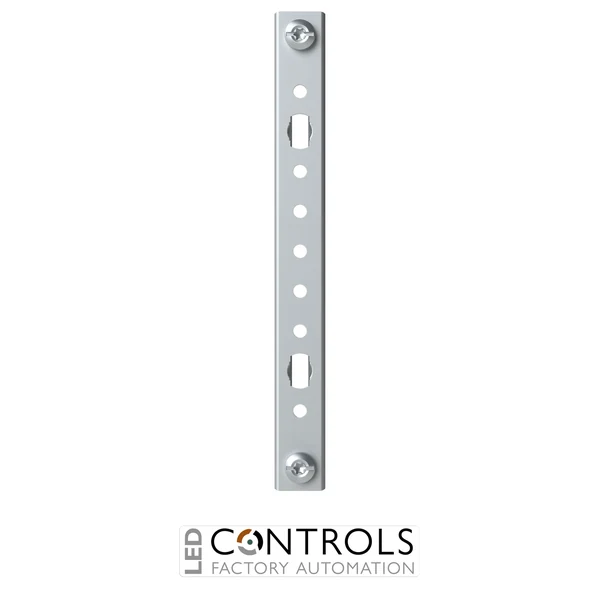

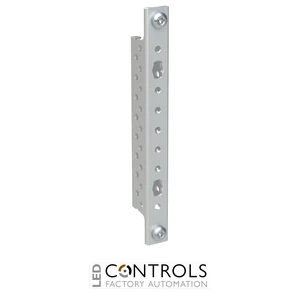

The ABB EDM7, order code 2CPX041455R9999, is a vertical EDF profile rail designed for the ABB CombiLine low-voltage sub-distribution system. It forms part of the EDF mounting-frame structure and provides a dedicated vertical support element for assembling compatible CombiLine modules and electrical equipment.
Designed for 1 grid unit (RE), the EDM7 provides a vertical mounting length of 150 mm and is suitable for constructing modules with rated currents up to 400 A. The profile is supplied with the required fastening screws and is specifically designed as a system component for compatible ABB EDF mounting frames.
The EDM7 is supplied mounted and installed in the cabinet. Manufactured from steel with a galvanised surface and designed for screw fixing, it provides a compact structural mounting component for professional ABB CombiLine distribution assemblies requiring a 1 RE vertical EDF profile.
Key Advantages
- Purpose-designed vertical profile rail for ABB EDF mounting frames.
- Provides 1 RE / 150 mm of vertical mounting height.
- Suitable for constructing compatible modules up to 400 A.
- Supplied with fastening screws.
- Manufactured from steel for structural cabinet applications.
- Galvanised surface finish provides durable protection.
- Compact profile for modular CombiLine interior construction.
- Supplied mounted and installed in the cabinet.
Key Features
- ABB EDM7 vertical EDF profile rail.
- ABB order code 2CPX041455R9999.
- Part of the ABB CombiLine interior expansion system.
- Designed for compatible EDF mounting frames.
- 1 RE vertical mounting height.
- 150 mm profile length.
- Suitable for module assemblies up to 400 A.
- 20 mm support profile height.
- Steel construction.
- Galvanised surface finish.
- Screw-fixed mounting.
- Fastening screws included.
- Supplied as 1 vertical profile rail.
- Factory supply format is mounted and installed in the cabinet.
Compact Structural Support for ABB EDF Mounting Frames
EDF mounting frames provide the structural foundation for positioning compatible CombiLine modules and equipment inside low-voltage distribution cabinets. Vertical profile rails such as the ABB EDM7 form part of this system, providing the mounting structure required to assemble and secure modular distribution equipment.
With a vertical length of 150 mm corresponding to 1 RE, the EDM7 is suited to compact mounting-frame configurations and module assemblies rated up to 400 A. Its galvanised steel construction, screw-fixed installation and included fastening screws provide a purpose-designed solution for integration into the ABB EDF mounting system.
Typical Applications
- ABB CombiLine low-voltage distribution cabinets.
- EDF mounting-frame construction.
- 1 RE interior mounting arrangements.
- CombiLine module assemblies up to 400 A.
- Commercial and industrial sub-distribution systems.
- Electrical switchgear and distribution cabinets.
- Modular interior support structures for ABB distribution equipment.
