Why Choose the ABB EDM112 EDF Horizontal Profile 2PW?

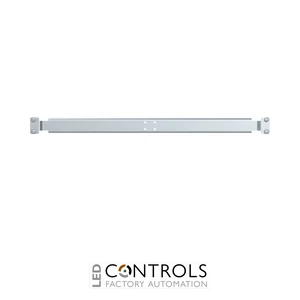

The ABB EDM112, order code 2CPX041464R9999, is a horizontal EDF transverse profile rail designed for field division within ABB electrical distribution cabinets. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a reliable structural solution for configuring compatible EDF mounting frameworks.
The EDM112 is supplied mounted and installed in the cabinet and is designed for a field width of 2PW. It enables field division both upwards and downwards and is particularly useful when different field widths need to be connected within a distribution assembly. Fastening screws are included for secure system integration.
With a nominal field width of 2PW / 500 mm, an overall height of 34 mm and a depth of 15.5 mm, the EDM112 is designed specifically for the ABB EDF mounting framework. Its galvanised construction provides a durable mechanical component for professional low-voltage distribution assemblies.
Key Advantages
- Purpose-designed horizontal EDF transverse profile rail for electrical distribution assemblies.
- 2PW / 500 mm field width for compatible ABB cabinet configurations.
- Enables field division upwards and downwards.
- Allows different field widths to be connected within compatible distribution assemblies.
- Supplied mounted and installed in the cabinet.
- Includes fastening screws for secure installation.
Key Features
- ABB EDM112 EDF horizontal transverse profile rail.
- ABB order code 2CPX041464R9999.
- 2PW field width.
- 500 mm nominal external width.
- Designed for horizontal field division upwards and downwards.
- Compatible with the ABB EDF mounting framework.
- Galvanised surface for durable installation.
- Fastening screws included.
Reliable Field Division for ABB Distribution Systems
Horizontal transverse profile rails provide structural separation within modular electrical distribution cabinets, enabling fields and functional areas to be arranged in a controlled and system-compatible configuration. The ABB EDM112 provides horizontal field division both above and below the profile within compatible EDF mounting frameworks.
The EDM112 is particularly important when different field widths need to be connected within an ABB distribution assembly. As a dedicated CombiLine system component supplied mounted in the cabinet, it supports efficient construction of organised and mechanically stable low-voltage distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB EDF mounting framework assemblies.
- Sub-distribution systems.
- Modular switchboard construction.
- Horizontal division of enclosure fields.
- Connecting sections with different field widths.
