Why Choose the ABB EDM113 EDF Horizontal Profile 3PW?

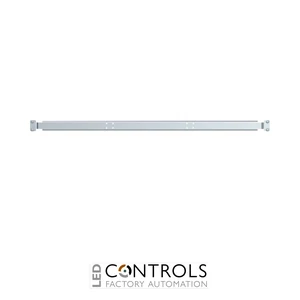

The ABB EDM113, order code 2CPX041465R9999, is a horizontal EDF transverse profile rail designed for field division within ABB electrical distribution cabinets. Part of the ABB CombiLine system and the DESUJ Sub Distribution product group, it provides a robust structural component for configuring compatible EDF mounting frameworks.
The EDM113 is supplied mounted and installed in the cabinet and is designed for a field width of 3PW. It enables field division both upwards and downwards and is required when different field widths need to be connected within a compatible distribution assembly. Fastening screws are included for secure installation.
With a 3PW field width and a profile length of 750 mm, the EDM113 is specifically designed for the ABB EDF mounting framework. Its steel construction, galvanised surface and system-specific design provide dependable mechanical support for professional low-voltage distribution assemblies.
Key Advantages
- Purpose-designed horizontal EDF transverse profile rail for electrical distribution assemblies.
- 3PW / 750 mm field width for compatible ABB cabinet configurations.
- Enables field division upwards and downwards.
- Allows different field widths to be connected within compatible distribution assemblies.
- Supplied mounted and installed in the cabinet.
- Includes fastening screws for secure installation.
Key Features
- ABB EDM113 EDF horizontal transverse profile rail.
- ABB order code 2CPX041465R9999.
- 3PW field width.
- 750 mm profile length.
- Designed for horizontal field division upwards and downwards.
- Compatible with the ABB EDF mounting framework.
- Steel construction with galvanised surface.
- Screw-fixed, system-specific design with fastening screws included.
Reliable Field Division for ABB Distribution Systems
Horizontal transverse profile rails provide structural division within modular electrical distribution cabinets, allowing individual fields and functional areas to be arranged securely. The ABB EDM113 provides horizontal field division above and below the profile within compatible EDF mounting frameworks.
The EDM113 is particularly useful where different field widths need to be connected within an ABB distribution assembly. Its system-specific steel construction and supplied fastening hardware support efficient construction of organised and mechanically stable low-voltage distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB EDF mounting framework assemblies.
- Sub-distribution systems.
- Modular switchboard construction.
- Horizontal division of enclosure fields.
- Connecting sections with different field widths.
