Why Choose the ABB MBG415 Modular Expansion 1PW?
The ABB MBG415 is a CombiLine modular distribution expansion module designed for DIN-rail-mounted electrical devices within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041672R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a structured mounting solution for modular protection, switching and control equipment.

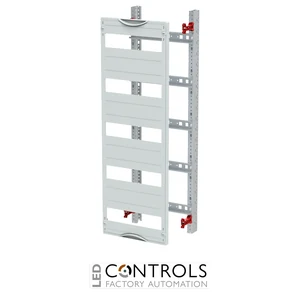

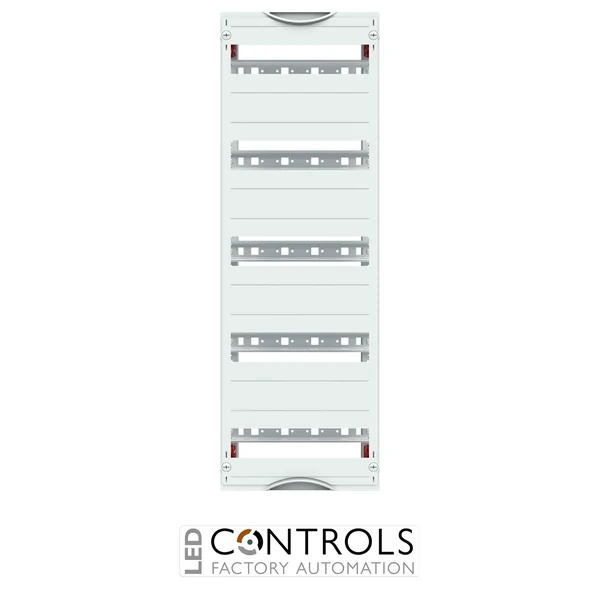

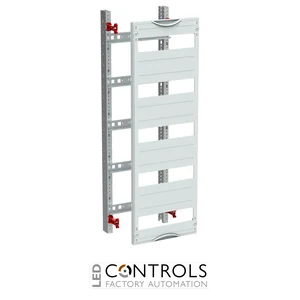

The MBG415 is supplied as an unassembled kit and provides 5 DIN-rail rows, each accommodating 12 modular spaces, giving a total capacity of 60 modular spaces. The rows are arranged at 150 mm centres and use 35 × 15 mm DIN rails with perforations for wire holders, making the module suitable for modular devices conforming to DIN 43880.
Designed for a 1-panel-width (1PW) configuration, the MBG415 measures 750 × 250 × 120 mm. Plastic covers with equipment cut-outs, a RAL 7035 light-grey finish and 90-degree press-and-turn fasteners provide a practical finished installation, while a compatible EDF or WR mounting frame must be ordered separately.
Key Advantages
- Purpose-designed modular expansion module for DIN-rail-mounted devices.
- 60 modular spaces across five DIN-rail rows.
- 1-panel-width (1PW) format provides substantial device capacity within a compact field width.
- 150 mm row spacing supports organised equipment installation and wiring.
- Compatible with modular electrical devices manufactured to DIN 43880.
- Supplied as an unassembled kit for flexible integration into compatible ABB distribution cabinets.
Key Features
- ABB MBG415 CombiLine modular distribution module.
- 5 grid units / 750 mm module height.
- 1-panel-width / 250 mm module width.
- 60 modular spaces in total.
- 5 DIN rails with 12 modular spaces per rail.
- 150 mm row spacing.
- 35 × 15 mm DIN rails with perforations for wire holders.
- Plastic covers with equipment cut-outs.
- RAL 7035 light-grey cover finish.
- 90-degree press-and-turn cover fasteners.
- Suitable for cabinets from 120 mm depth.
- Designed for use with a separately ordered compatible EDF or WR mounting frame.
Flexible Modular Distribution for DIN-Rail Devices
DIN-rail modular distribution systems provide an organised method of installing circuit protection, switching, control and other modular electrical devices within low-voltage distribution cabinets. Standardised DIN rails allow compatible equipment to be positioned securely while maintaining accessible wiring routes and a structured panel layout.
The ABB MBG415 provides five equipment rows with a total of 60 modular spaces and 150 mm row spacing, making it particularly suitable for distribution assemblies requiring substantial device capacity within a compact 1PW section. Its CombiLine design allows it to be combined with compatible ABB mounting frames and cabinet components to create a structured professional distribution system.
Typical Applications
- ABB CombiLine low-voltage distribution cabinets.
- DIN-rail circuit protection and switching devices.
- Electrical sub-distribution assemblies.
- Commercial and industrial switchboards.
- Modular control and distribution equipment.
- Professional panel-building and system integration projects.
