Why Choose the ABB MBM112 Mounting Plate Expansion 1PW?

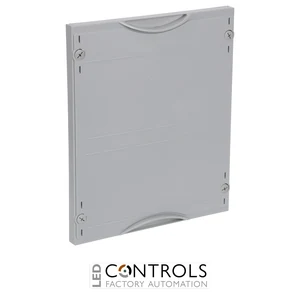

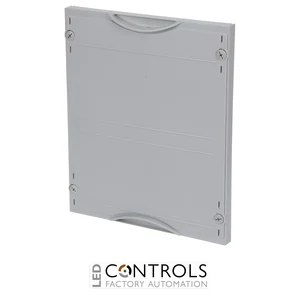

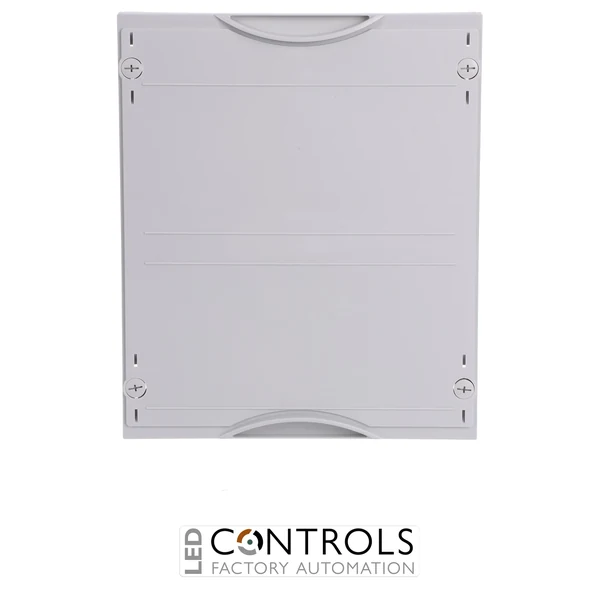

The ABB MBM112 is a CombiLine mounting plate expansion module designed to provide a versatile equipment mounting area within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX041710R9999, it forms part of the ABB DESUJ Sub Distribution product group and is supplied as an unassembled kit for professional panel-building applications.
The MBM112 combines a robust 2 mm sheet-steel mounting plate with a compact 1-panel-width (1PW) format. The module measures 300 × 250 × 200 mm, provides 24 space units and offers approximately 188 mm usable width and 266 mm usable height for equipment installation.
Its mounting plate is steplessly adjustable in depth through the mounting bracket arrangement, providing a usable mounting depth of approximately 103–158 mm. Closed RAL 7035 plastic covers with 90-degree press-and-turn fasteners provide a neat finished installation, while a compatible EDF or WR mounting frame is ordered separately.
Key Advantages
- Compact 1-panel-width (1PW) mounting solution for electrical equipment.
- Durable 2 mm sheet-steel mounting plate.
- Stepless depth adjustment for accommodating equipment of different mounting depths.
- Provides approximately 188 × 266 mm usable equipment area.
- 24 space units for structured CombiLine cabinet planning.
- Closed RAL 7035 cover provides a clean professional cabinet finish.
Key Features
- ABB MBM112 CombiLine mounting plate module.
- 1-panel-width (1PW) configuration.
- 2 grid units / 300 mm module height.
- 250 mm module width.
- 200 mm module depth.
- 24 space units.
- 2 mm sheet-steel mounting plate.
- Steplessly adjustable mounting depth via mounting brackets.
- Approximately 103–158 mm usable mounting depth.
- Approximately 188 mm usable equipment width.
- Approximately 266 mm usable equipment height.
- Closed RAL 7035 plastic cover with 90-degree press-and-turn fastening.
- Suitable for cabinets from 200 mm depth.
Flexible Equipment Mounting with Stepless Depth Adjustment
Mounting plate modules provide a versatile alternative to fixed DIN-rail layouts when electrical components require direct mounting to a flat supporting surface. The 2 mm sheet-steel plate of the ABB MBM112 provides a robust base for compatible control, distribution and ancillary equipment while offering approximately 188 mm usable width and 266 mm usable height.
The MBM112 mounting plate can be adjusted steplessly through its mounting bracket arrangement, providing a usable depth range of approximately 103–158 mm. This flexibility allows the mounting position to be adapted to component dimensions and cabinet layout requirements, making the module suitable for customised CombiLine distribution assemblies.
Typical Applications
- ABB CombiLine low-voltage distribution cabinets.
- Direct mounting of electrical and control components.
- Electrical sub-distribution assemblies.
- Industrial and commercial switchboards.
- Custom equipment mounting within distribution panels.
- Professional panel-building and system integration projects.
