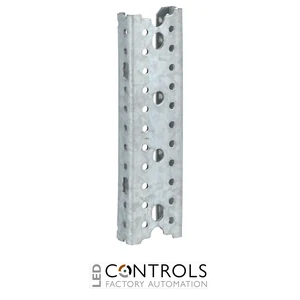

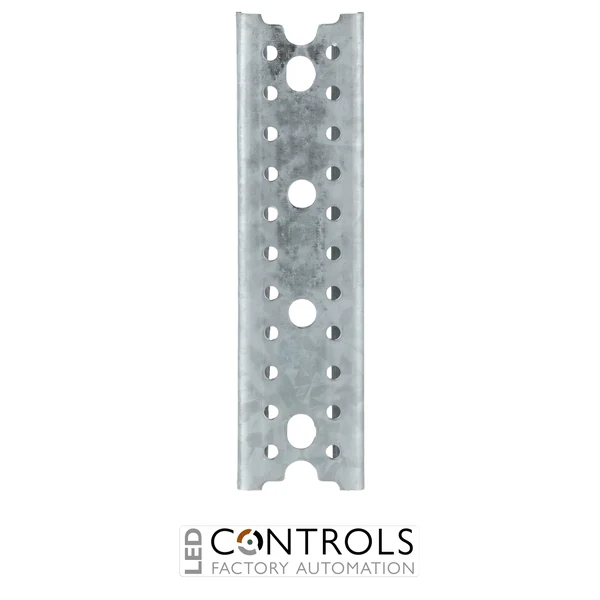

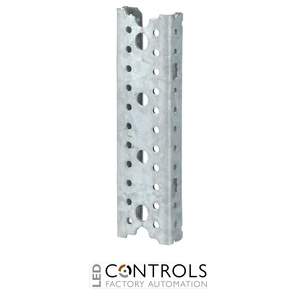

Why Choose the ABB ZW367 WR Vertical Profile 1RE?
The ABB ZW367, order code 2CPX041850R9999, is a vertical WR profile rail designed for ABB CombiLine N interior expansion systems used in sub-distribution boards and electrical distribution enclosures. As part of the ABB DESUJ Sub Distribution product group, it provides a structural mounting component for compatible WR mounting frames.
The ZW367 is supplied as an unassembled kit and is specifically designed for height compensation when transverse profile rails are used. Its vertical profile format allows compatible WR mounting structures to be configured and divided according to the requirements of the electrical distribution assembly.
With a height of 1 RE / 150 mm, the ZW367 provides a compact profile rail for modular ABB distribution systems. Manufactured from steel and designed for screw fixing, it integrates with the WR mounting frame to provide a secure and adaptable support structure for professional panel-building applications.
Key Advantages
- Purpose-designed vertical profile rail for ABB WR mounting frames.
- 1 RE / 150 mm height for compact modular installations.
- Designed for height compensation when using transverse profile rails.
- Robust steel construction for professional distribution assemblies.
- Screw-fixed design provides secure integration with compatible mounting structures.
- Part of the modular ABB CombiLine N interior expansion system.
Key Features
- ABB CombiLine N interior expansion system.
- ZW367 vertical WR profile rail.
- 1 RE / 150 mm height.
- Designed for compatible WR mounting frames.
- Provides height compensation when transverse profile rails are installed.
- Steel construction.
- Screw fixing mounting method.
- 40 mm profile height.
- Supplied as an unassembled kit.
- Suitable for modular electrical distribution and panel-building systems.
Flexible Support for WR Mounting Frame Systems
Vertical profile rails form part of the supporting structure within modular electrical distribution assemblies. The ABB ZW367 is designed to work with compatible WR mounting frames and transverse profile rails, enabling the mounting structure to be configured while providing the required height compensation within the assembly.
As part of the ABB CombiLine N interior expansion system, the ZW367 supports flexible panel construction and modular distribution layouts. Its 150 mm length corresponds to 1 RE, making it suitable for compact structural sections where a short vertical WR profile is required.
Typical Applications
- Electrical sub-distribution boards.
- ABB CombiLine N cabinet systems.
- WR mounting frame assemblies.
- Height compensation with transverse profile rails.
- Commercial and industrial electrical distribution panels.
- Switchboard and control panel construction.
