Why Choose the ABB ZW369 WR Vertical Profile 3RE?

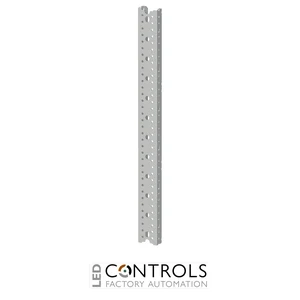

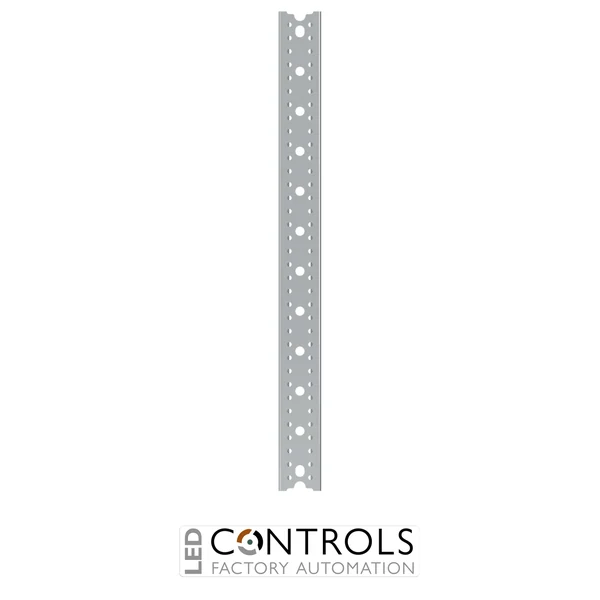

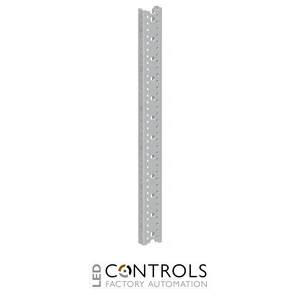

The ABB ZW369 is a vertical WR profile rail designed for ABB CombiLine electrical distribution systems. Supplied under ABB order code 2CPX041852R9999, this structural system component provides a 3 RE vertical profile for constructing and adapting compatible WR mounting frames within low-voltage distribution assemblies.
The ZW369 is supplied as an unassembled kit and has a length of 450 mm, corresponding to 3 RE. It is designed for height compensation when horizontal cross-profile rails are used and can form part of the supporting framework required for modular CombiLine equipment.
Manufactured from 2 mm galvanised steel, the ZW369 provides a robust structural mounting solution with a 40 mm profile height. Its perforated construction provides fixing points for compatible components, while screw mounting enables secure integration into ABB WR mounting frame assemblies.
Key Advantages
- Purpose-designed vertical WR profile rail for ABB CombiLine systems.
- 450 mm length corresponding to a 3 RE configuration.
- Provides height compensation when using horizontal cross-profile rails.
- Designed specifically for compatible ABB WR mounting frames.
- Robust 2 mm steel construction for structural panel applications.
- Galvanised surface provides a durable finish for use inside electrical enclosures.
- Perforated profile provides fixing points for compatible mounting components.
- Screw-mounted design supports secure mechanical installation.
Key Features
- ABB ZW369 vertical WR profile rail.
- ABB order code 2CPX041852R9999.
- 3 RE vertical profile configuration.
- 450 mm profile length.
- 40 mm profile height.
- Designed for height compensation with horizontal cross-profile rails.
- Suitable for the ABB WR mounting frame.
- 2 mm steel construction.
- Galvanised surface.
- Perforated with fixing holes for compatible mounting components.
- Screw mounting.
- Supplied as an unassembled kit.
- One vertical profile rail per package.
Flexible WR Mounting Frame Construction
Vertical WR profile rails form part of the structural framework used to configure ABB electrical distribution assemblies. The ZW369 provides a 450 mm vertical section and is specifically designed to compensate for height when horizontal cross-profile rails are incorporated into the mounting frame, allowing the internal support structure to be configured around the required equipment layout.
Where a mounting unit needs to be divided lengthwise, ABB specifies the use of two vertical WR profile rails. The ZW369 combines galvanised steel construction, perforated fixing points and secure screw mounting, making it suitable for modular panel construction, extensions and alterations using the ABB WR mounting system.
Typical Applications
- ABB CombiLine electrical distribution assemblies.
- WR mounting frame construction.
- Height compensation with horizontal cross-profile rails.
- Lengthwise division of compatible mounting units.
- Internal distribution board frame configuration.
- Commercial and industrial switchgear assemblies.
- Low-voltage distribution panel construction and modification.
