Why Choose the ABB ZW374 WR Vertical Profile 8RE?

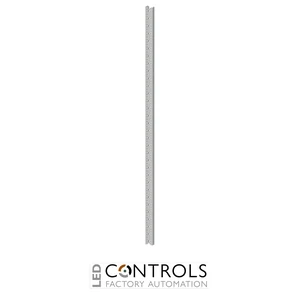

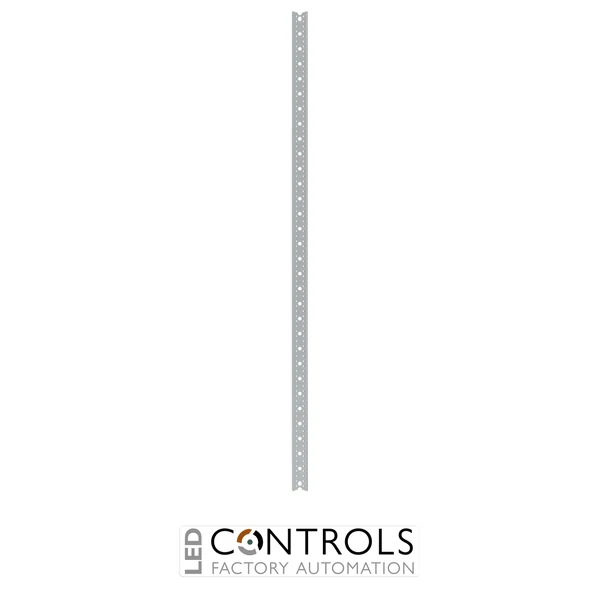

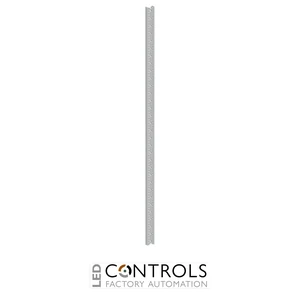

The ABB ZW374 is a WR vertical frame profile designed for ABB low-voltage sub-distribution assemblies. Part of the ABB CombiLine modular distribution system, it is used to construct WR mounting frames for the secure installation of compatible modules and interior components within electrical distribution cabinets.
Designed for professional panel building and switchgear construction, the ZW374 mounts vertically onto compatible horizontal WR profiles to create a rigid modular support structure. Its pre-engineered format helps panel builders assemble coordinated ABB interior systems while maintaining accurate module spacing and dependable mechanical support.
The ZW374 is sized for 8 RE and has an overall profile length of 1200 mm. It is supplied as a single vertical profile and carries ABB order code 2CPX041857R9999.
Key Advantages
- Purpose-designed WR vertical frame profile for ABB distribution systems.
- Suitable for 8 RE modular height.
- 1200 mm profile length for compatible WR frame assemblies.
- Designed to mount onto ABB horizontal WR profiles.
- Provides rigid mechanical support for modular interior components.
- Supports organised and repeatable panel construction.
- Compatible with the ABB CombiLine modular distribution system.
Key Features
- ABB CombiLine WR frame component.
- Vertical mounting profile.
- 8 RE configuration.
- 1200 mm overall length.
- Designed for installation on compatible horizontal WR profiles.
- Used as part of modular mounting frames for ABB interior kits.
- Single-profile supply configuration.
- Engineered for professional low-voltage distribution assemblies.
Modular Support for ABB WR Mounting Frames
WR mounting frames provide the structural foundation for installing modular interior components within ABB distribution cabinets. Vertical profiles such as the ZW374 connect with compatible horizontal frame profiles to create a stable framework for mounting functional kits, busbar modules, terminal sections and other distribution components.
With its 8 RE / 1200 mm format, the ABB ZW374 is suited to larger modular arrangements where consistent spacing and secure mechanical support are required. Its integration within the CombiLine system simplifies the construction of coordinated low-voltage distribution assemblies.
Typical Applications
- ABB CombiLine modular distribution assemblies.
- WR mounting frame construction.
- Low-voltage sub-distribution boards.
- Industrial and commercial electrical cabinets.
- Mounting of modular distribution kits.
- Professional switchgear and panel construction.
